CLUTCH HOUSING & TRANSMISSION CASE (MTM)

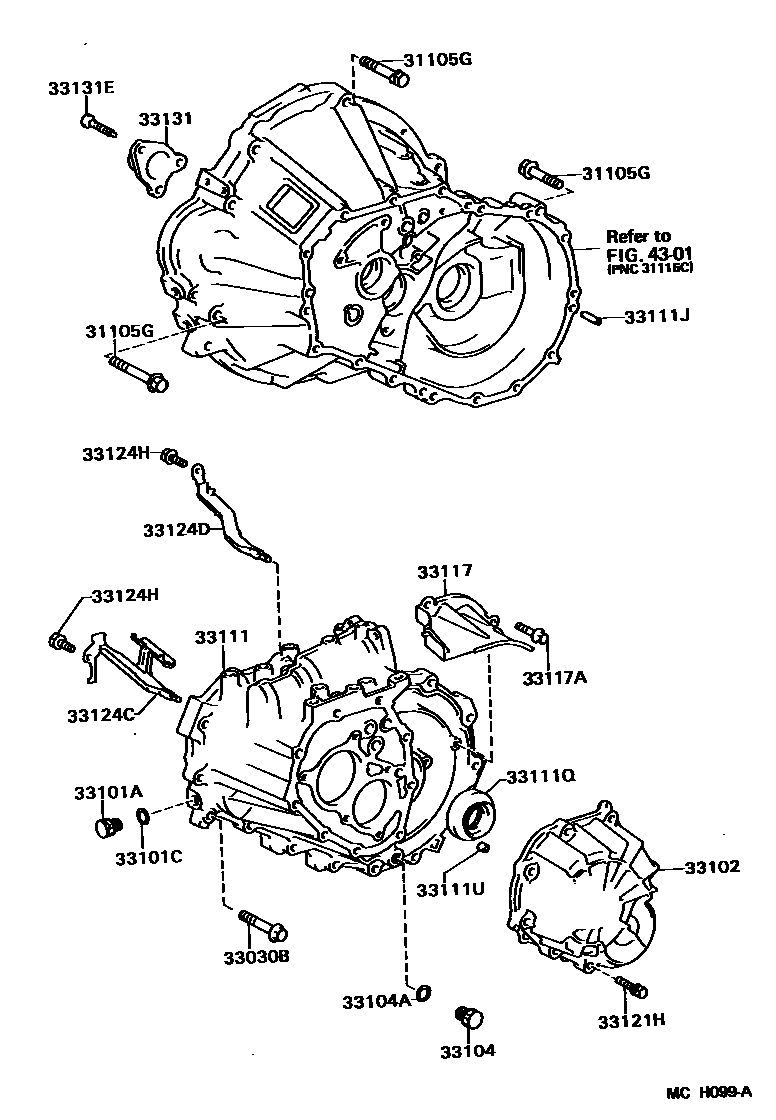

Parts diagram

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077i198708-199106

*10-1.25PX43-26

main90119-12042i198708-199106

*12-1.25PX75-30

main90119-12168×2i198708-199106

*12-1.25PX55-30

main91611-61025i198708-199106

*10-1.25PX25-25

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064×16i198708-198904

*8-1.25PX51-28

main90105-08086×3i198904-199106

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006i198708-199106

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008i198708-199106

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12020i198708-198908

main33102-12021i199105-199106

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i198708-199106

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008i198708-199106

33111CASE, MANUAL TRANSMISSION

main33111-16040i198708-198808

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4i198708-199106

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008i198708-198808

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2i198708-199106

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-12011i198708-199011

main33117-16010i199011-199106

main33117-17010i198905-199011

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040×2i198708-199106

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main91611-60835×9i198708-199106

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010i198708-199106

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020i198708-199106

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820×2i198708-198904

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071i198708-199106

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028×3i198708-199106

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

20 parts on this diagram · 1 diagram in section
