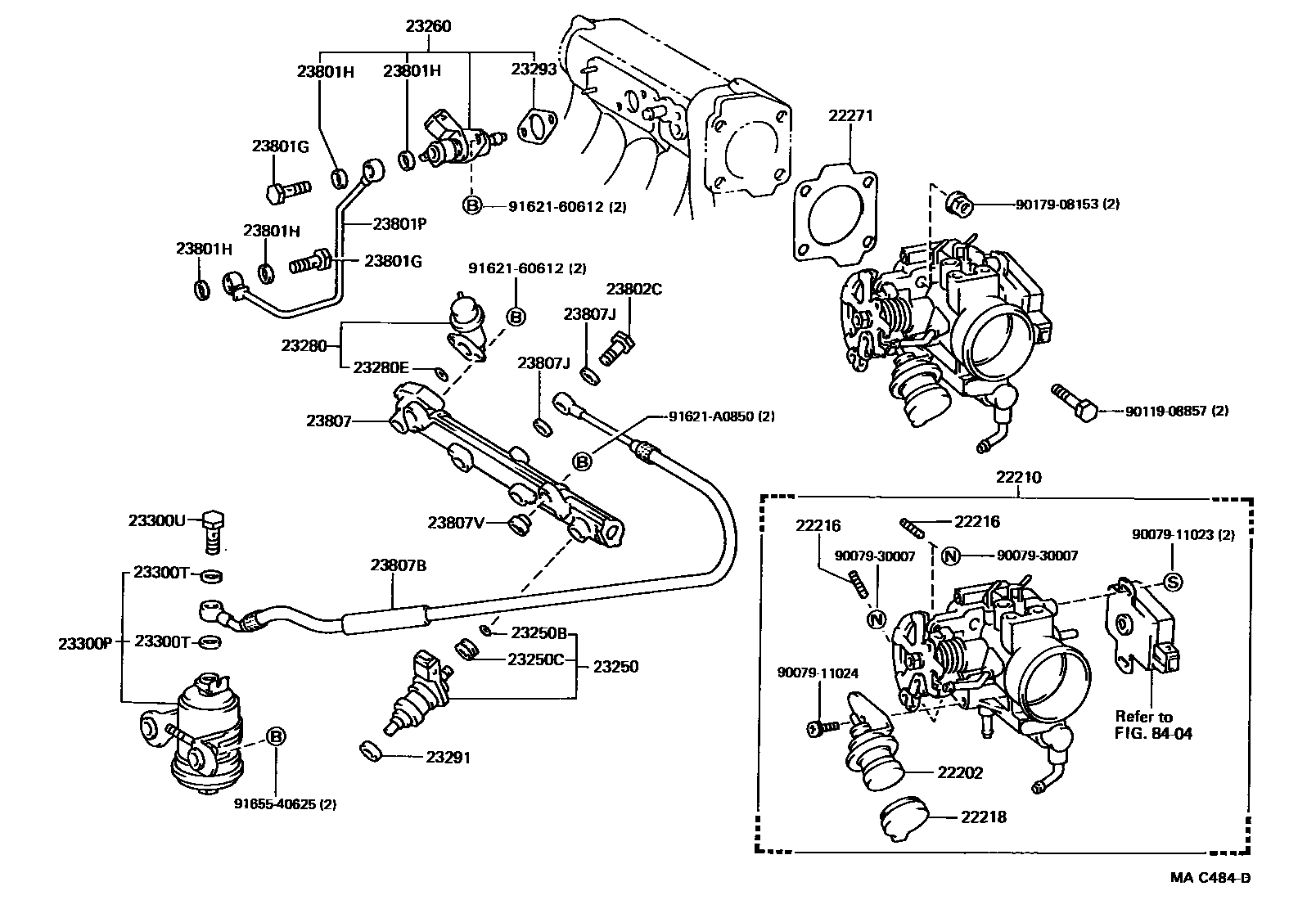

FUEL INJECTION SYSTEM
22202DASH POT SUB-ASSY
22210BODY ASSY, THROTTLE
sub22210-16211
sub22210-16411
EX. EMISSION CONTROL(FOR USA CALIFORNIA)
EX. EMISSION CONTROL(FOR USA CALIFORNIA)
sub22210-16431
sub22210-16461
22216SCREW, DASH POT ADJUSTING
22218COVER(FOR THROTTLE BODY)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
NO.2
NO.1
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23807BHOSE, FUEL DELIVERY PIPE
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404
9007911023
main90079-11023
9007911024
main90079-11024
9007930007
main90079-30007
9011908857
main90119-08857
9017908153
main90179-08153
9162160612
main91621-60612
91621A0850
main91621-A0850
9165540625
main91655-40625
33 parts on this diagram · 4 diagrams in section
