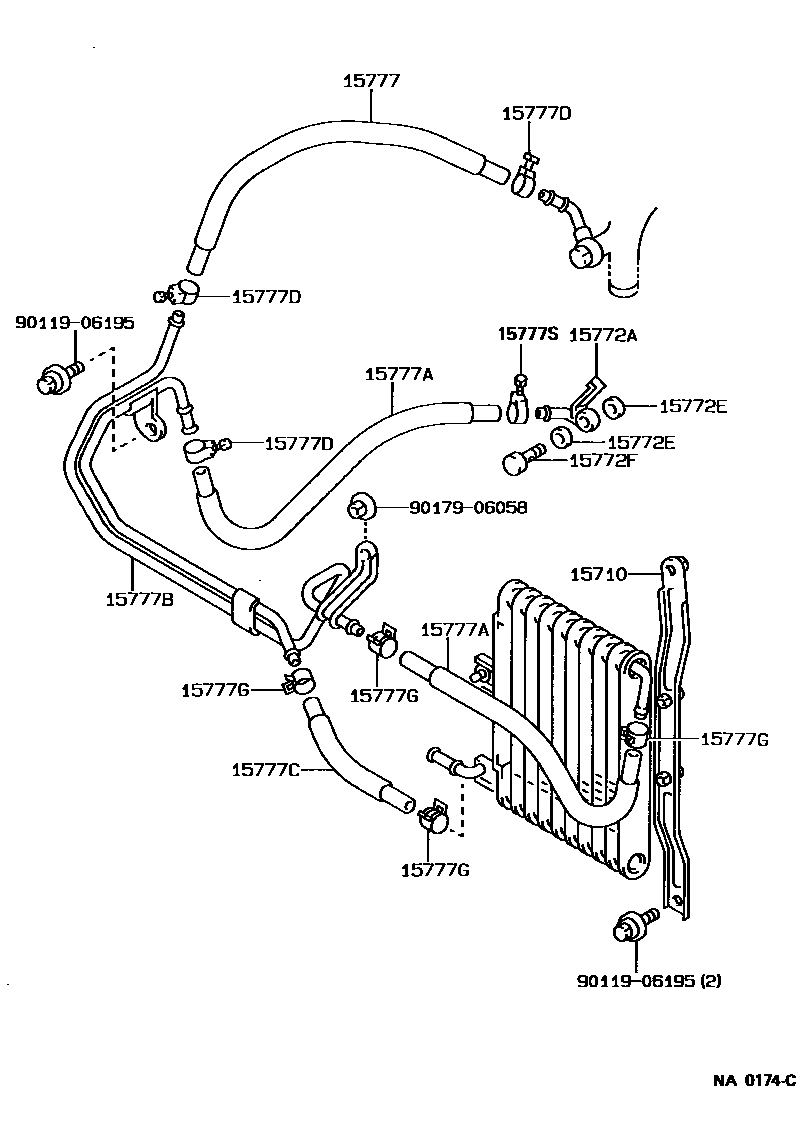

ENGINE OIL COOLER

15710COOLER ASSY, OIL

main15700-16040i4AGE..AE92198708-199106

15772AUNION(FOR OIL PIPE)

main90405-10030i4AGE..AE92198708-199106

15772EGASKET(FOR OIL PIPE)

main90430-12018×2i4AGE..AE92198708-199005

main90430-12027×2i4AGE..AE92199005-199106

15772FBOLT, UNION(FOR OIL PIPE)

main90401-12009i4AGE..AE92198708-199106

15777HOSE, OIL COOLER

main15777-16090i4AGE..AE92198708-199106

15777AHOSE, OIL COOLER

main15776-16020i4AGE..AE92198908-199106

UNION SIDE

main15778-16020i4AGE..AE92198708-199106

COOLER SIDE

15777BPIPE, OIL COOLER

main15767-16080i4AGE..AE92198708-198712

main15767-16090i4AGE..AE92198712-199106

15777CHOSE, OIL COOLER

main15779-16010i4AGE..AE92198708-198712

main15779-16020i4AGE..AE92198712-199106

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main90460-01001×3i4AGE..AE92198708-199106

15777GCLAMP OR CRIP, HOSE

main90467-16004×4i4AGE..AE92198708-199106

15777SCLAMP OR CLIP, HOSE

main90460-01001i4AGE..AE92198708-199106

9011906195

main90119-06195

9017906058

main90179-06058

13 parts on this diagram · 1 diagram in section
