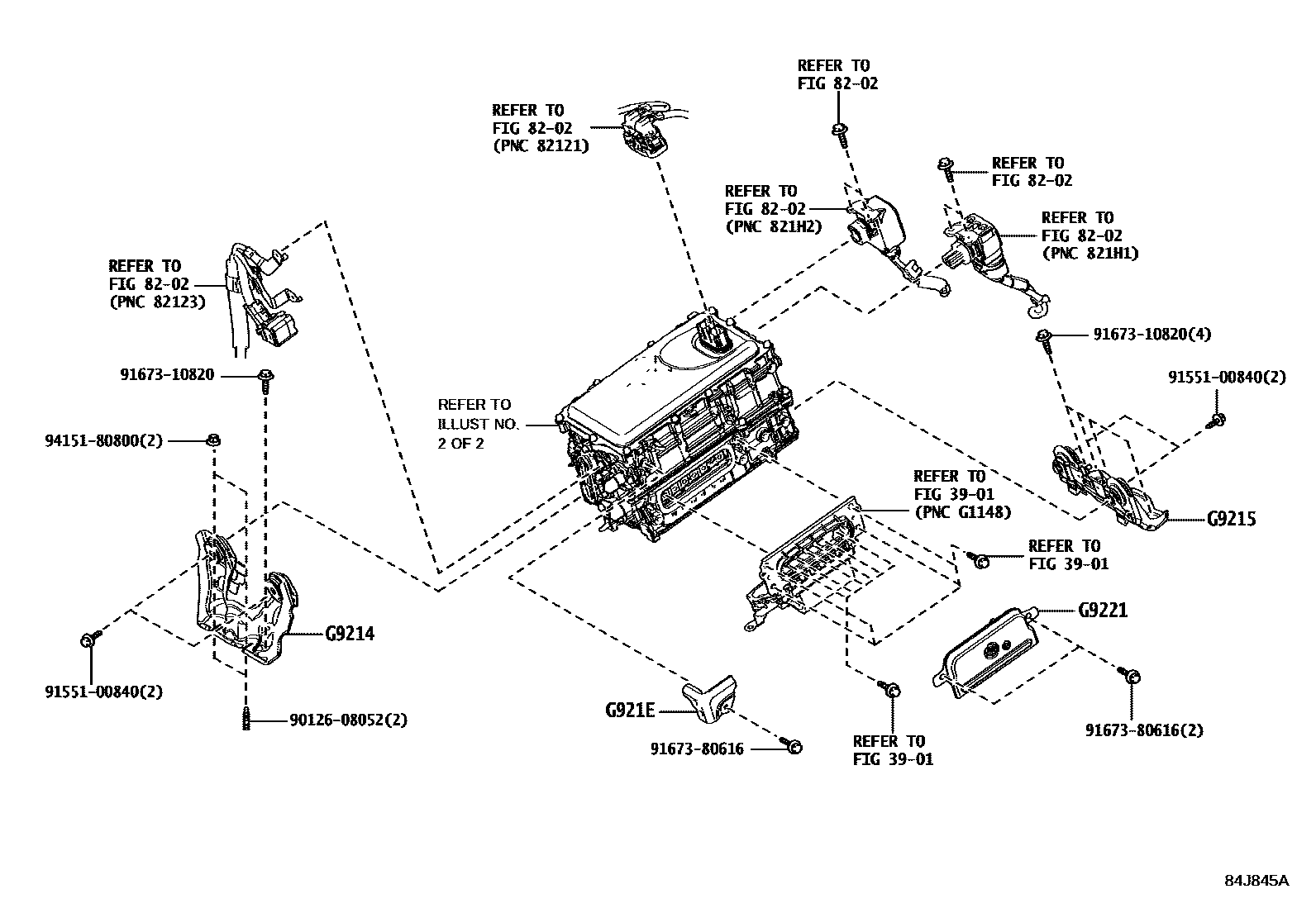

HEV INVERTER

0001 1 0002 1INVERTER ASSY 0003 1 0004 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9214BRACKET, INVERTER, NO.1

mainG921428090iZWE219202209-202409

mainG921447070iZWE21#201901-202208

G9215BRACKET, INVERTER, NO.2

mainG921528050iZWE219202209-202409

mainG921547050iZWE21#201901-202208

G921EPROTECTOR, INVERTER

mainG921E12010iZWE219202209-202409

mainG921E47010iZWE21#201901-202208

G9221COVER, INVERTER

mainG902228030iZWE219202209-202409

mainG902247050iZWE211201901-202208

9012608052

main90126-08052

9155100840

main91551-00840

9167310820

main91673-10820

9167380616

main91673-80616

9415180800

main94151-80800

11 parts on this diagram · 4 diagrams in section
