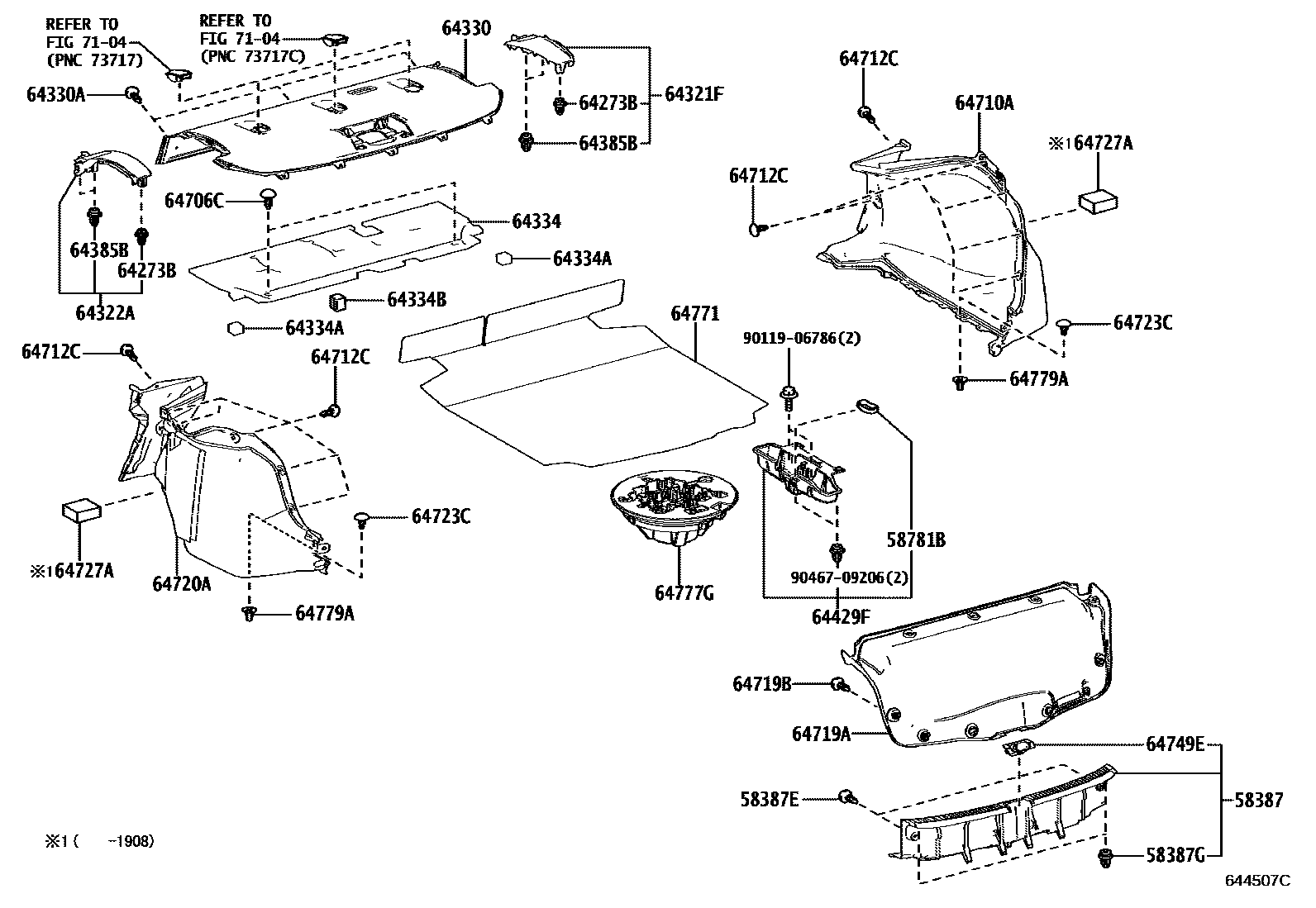

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
58781BBAND, LUGGAGE COMPARTMENT TRIM BOX
SPARE TIRE-GROUND TIRE(ALUMINUM)
64273BCLIP
64321FBRACKET, PACKAGE TRAY TRIM, RH
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
64322ABRACKET, PACKAGE TRAY TRIM, LH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64334PAD, PACKAGE TRAY TRIM SILENCER
64334APAD, PACKAGE TRAY TRIM
64334BPAD, PACKAGE TRAY TRIM, NO.2
64385BCLIP
64429FBOX, LUGGAGE COMPARTMENT TRIM
SPARE TIRE-GROUND TIRE(ALUMINUM)
64706CCLIP
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
CENTRAL AMERICA 1 SPEC,BLACK,TRIM0#,2#
CENTRAL AMERICA 2 SPEC,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64723CCLIP, LUGGAGE COMPARTMENT TRIM COVER
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
64771COVER, SPARE WHEEL
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
64777GCUSHION, SPARE WHEEL
sub64777-12550
SPARE TIRE-GROUND TIRE(ALUMINUM)
sub64777-12271
SPARE TIRE-T125/70D17
64779ASTOPPER, SPARE WHEEL COVER
7104
9011906786
main90119-06786
9046709206
main90467-09206
29 parts on this diagram · 4 diagrams in section
