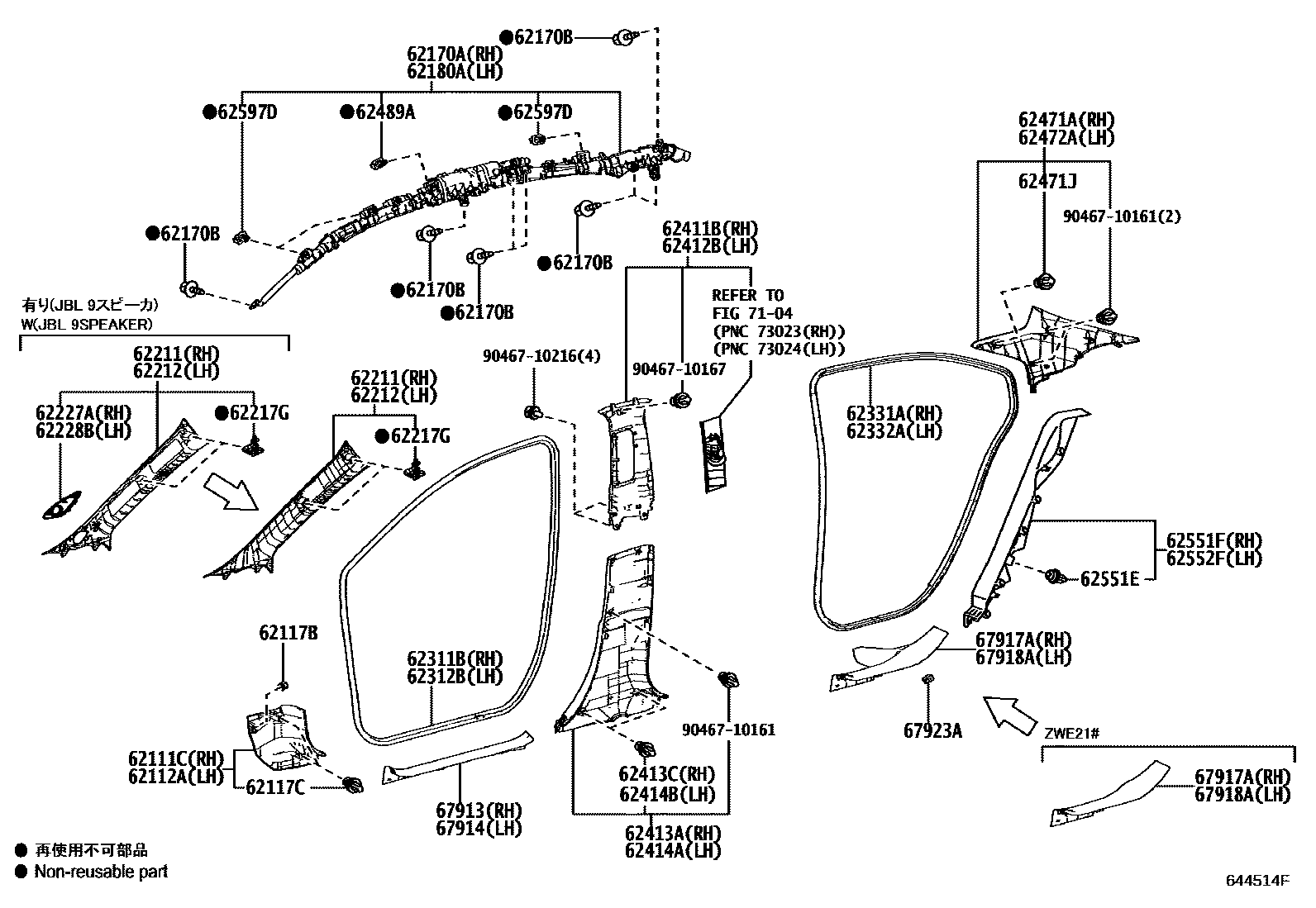

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
FROMAGE,TRIM1#,2#
FROMAGE,TRIM2#
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM20
FROMAGE,TRIM0#,2#
FROMAGE,TRIM0#,1#,20
FROMAGE,TRIM10,20
FROMAGE,TRIM0#,10,20
FROMAGE,TRIM1#,20
BLACK,TRIM20,21
BLACK,TRIM11,20,21,22
BLACK,TRIM11,20,22
BLACK,TRIM20,26
62212GARNISH, FRONT PILLAR, LH
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM2#
FROMAGE,TRIM20
FROMAGE,TRIM0#,2#
FROMAGE,TRIM0#,1#,20
FROMAGE,TRIM1#,2#
FROMAGE,TRIM10,20
FROMAGE,TRIM0#,10,20
FROMAGE,TRIM1#,20
BLACK,TRIM20,21
BLACK,TRIM20,26
BLACK,TRIM11,20,22
BLACK,TRIM11,20,21,22
62217GCLIP, FRONT PILLAR GARNISH
62227AGRILLE, SPEAKER FRONT PILLAR GARNISH, RH
62228BGRILLE, SPEAKER FRONT PILLAR GARNISH, LH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
62412BGARNISH, CENTER PILLAR, UPPER LH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
62414BCLIP (FOR CENTER LOWER GARNISH)
62471AGARNISH, ROOF SIDE, INNER RH
FROMAGE,TRIM20
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM2#
FROMAGE,TRIM00,20
FROMAGE,TRIM00,10,20
FROMAGE,TRIM10,20
FROMAGE,TRIM0#,1#,20
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,2#
FROMAGE,TRIM1#,20
BLACK,TRIM10,20,21
BLACK,TRIM00,10,20
BLACK,TRIM00,10,20,21
BLACK,TRIM10,20
BLACK,TRIM00,1#,20
BLACK,TRIM0#,10,11,20,21,22
BLACK,TRIM00,10,11,20,22
BLACK,TRIM20,26
BLACK,TRIM20,21
62471JCLIP (FOR ROOF SIDE GARNISH)
COLOR:BLUE
62472AGARNISH, ROOF SIDE, INNER LH
FROMAGE,TRIM2#
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM20
FROMAGE,TRIM00,20
FROMAGE,TRIM00,10,20
FROMAGE,TRIM10,20
FROMAGE,TRIM1#,20
FROMAGE,TRIM0#,1#,20
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,2#
BLACK,TRIM00,10,20,21
BLACK,TRIM00,10,20
BLACK,TRIM00,1#,20
BLACK,TRIM10,20,21
BLACK,TRIM00,10,11,20,22
BLACK,TRIM0#,10,11,20,21,22
BLACK,TRIM10,20
BLACK,TRIM20,21
BLACK,TRIM20,26
62489ACLIP, ROOF SIDE INNER GARNISH
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
62597DCLIP
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
7104
9046710161
main90467-10161
9046710167
main90467-10167
9046710216
main90467-10216
39 parts on this diagram · 1 diagram in section
