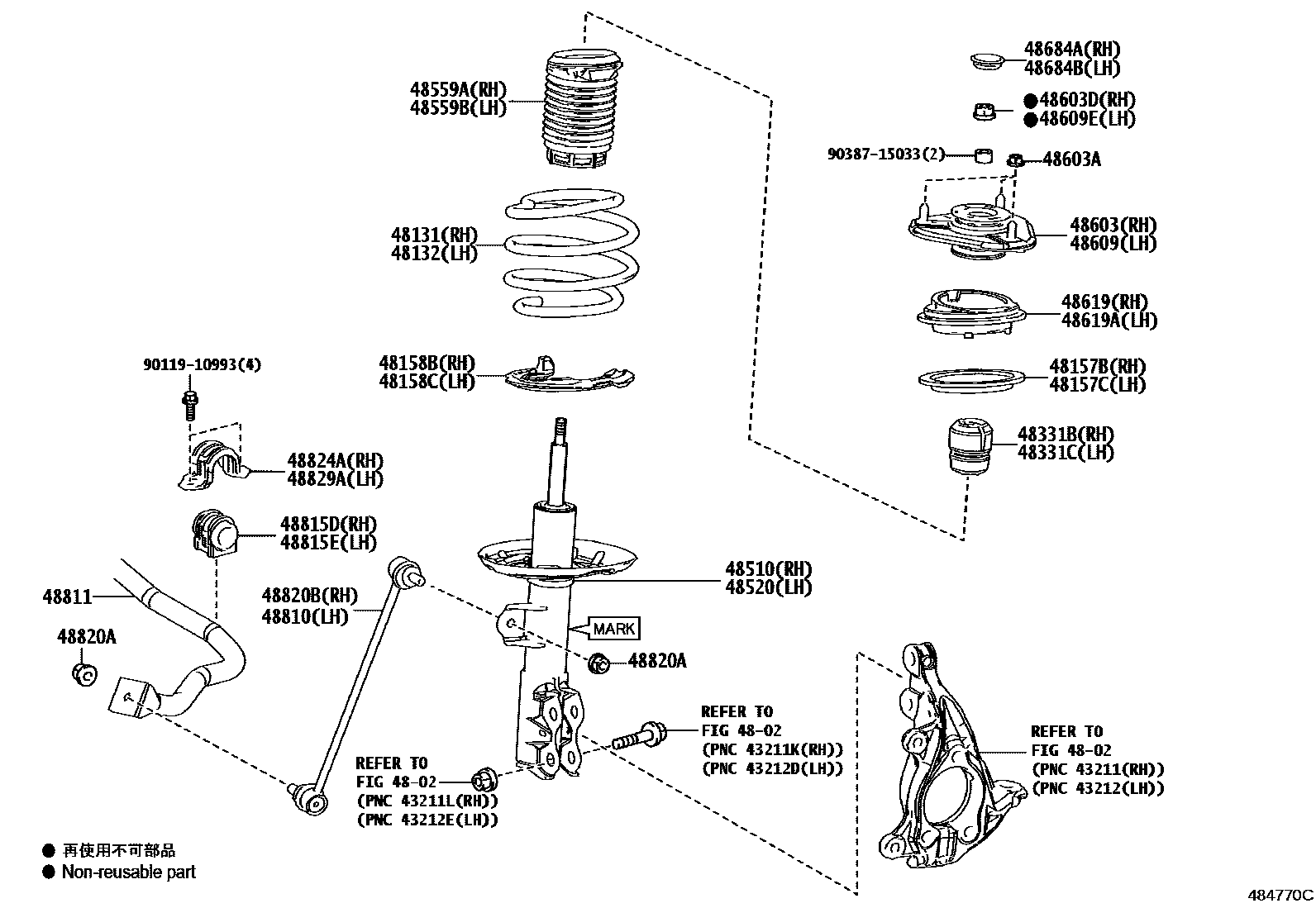

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-12F60iMZEA12..D201909-202004

main48131-12F60iZRE212..RHD..L202004-202208

SOUTH AFRICA SPEC

main48131-12F80iZWE211..ARL201909-202110

sub48131-12F81

main48131-12F81iZWE211..ARL202110-202208

main48131-12G00iZRE212201901-202208

main48131-12G10iZWE21#..MXC201901-202208

main48131-12J10iMZEA12..L201909-202208

main48131-12L20iMZEA18202209-202409

main48131-12L30iZWE219..ARL202209-202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48131-12L30iZWE219..ARL202209-202409

SOUTH AFRICA SPEC

main48131-12M30iMZEA12202209-202507

main48131-12M40iZWE219..ARL202209-202409

48132SPRING, FRONT COIL, LH

main48131-12F60iMZEA12..D201909-202004

main48131-12F60iMZEA12..D202004-202208

SOUTH AFRICA SPEC

main48131-12F80iZWE211..ARL201909-202110

sub48131-12F81

main48131-12F81iZWE211..ARL202110-202208

main48131-12G00iZRE212201901-202208

main48131-12G10iZWE211..MXC201901-202208

main48131-12J10iMZEA12..L201909-202208

main48131-12L20iMZEA18..LHD202209-202409

main48131-12L30iZWE219..ARL202209-202409

SOUTH AFRICA SPEC

main48131-12L30iZWE219..ARL202209-202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48131-12M30iMZEA12202209-202507

main48131-12M40iZWE219..ARL202209-202409

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-47030iMZEA18;MZEA12,ZWE219..L201901-202507

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-47030iMZEA18;MZEA12,ZWE219..L201901-202507

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-47020iMZEA12,ZRE212,ZWE21#201901-202507

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-47020iMZEA18..LHD;MZEA12,ZWE219201901-202507

48331BBUMPER, FRONT SPRING, RH

main48331-10120iMZEA12,ZWE211..ARL201909-202507

main48331-10120iMZEA12,ZWE211..ARL202004-202208

SOUTH AFRICA SPEC

main48331-12280iZRE212,ZWE211..GEN,MXC201901-202307

main48331-12280iMZEA18,ZWE219..LHD202209-202409

SOUTH AFRICA SPEC

main48331-12280iMZEA18,ZWE219..LHD202209-202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

48331CBUMPER, FRONT SPRING, LH

main48331-10120iMZEA12..D201909-202507

main48331-10120iMZEA12,ZWE211..ARL202004-202208

SOUTH AFRICA SPEC

main48331-12280iZWE219..ARL202209-202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48331-12280iMZEA18,ZWE219..LHD202209-202409

SOUTH AFRICA SPEC

main48331-12280iZRE212,ZWE211..GEN,MXC201901-202307

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80A54iZRE212201901-202012

MARK 48510-12J20

main48510-80A55iMZEA12201909-202012

MARK 48510-12J40

main48510-80A57iZWE21#201901-202012

MARK 48510-12J70

sub48510-80B78

main48510-80B77iZRE212202012-202208

MARK 48510-12J11

main48510-80B78iZWE21#202012-202208

MARK 48510-12J71

main48510-80B79iMZEA12202012-202208

MARK 48510-12J51

main48510-8Z579iZWE219202209-202409

MARK 48510-12F70

main48510-8Z581iMZEA12..D202209-202507

MARK 48510-12J00

main48510-8Z582iMZEA18202209-202409

MARK 48510-12M90

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80614iZRE212201901-202012

MARK 48520-12J20

main48520-80615iMZEA12201909-202012

MARK 48520-12J40

main48520-80617iZWE21#201901-202012

MARK 48520-12J70

sub48520-80729

main48520-80728iZRE212202012-202208

MARK 48520-12J11

main48520-80729iZWE21#202012-202208

MARK 48520-12J71

main48520-80730iMZEA12202012-202208

MARK 48520-12J51

main48520-8Z404iZWE219202209-202409

MARK 48520-12F70

main48520-8Z406iMZEA12..D202209-202507

MARK 48520-12J00

main48520-8Z407iMZEA18..RHD202209-202409

MARK 48520-12M90

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-47010iMZEA12,ZRE212,ZWE21#201901-202507

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-47010iMZEA18..RHD201901-202507

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-47060iMZEA12..D201901-202507

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029iMZEA12..D201901-202507

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iMZEA12,ZRE212,ZWE21#201901-202507

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-47060iMZEA12,ZRE212,ZWE211201901-202507

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iMZEA18..LHD;MZEA12,ZWE219201901-202507

48619BEARING, STRUT MOUNTING, RH

main48619-47030iMZEA18;MZEA12,ZWE219..L202211-202507

(J)

main48619-F4010iMZEA12,ZRE212,ZWE211201901-202211

main48619-F4010iMZEA1#,ZWE219202211-202307

(L)

48619ABEARING, STRUT MOUNTING, LH

main48619-47030iMZEA12..D202211-202507

(J)

main48619-F4010iMZEA1#,ZWE219201901-202211

main48619-F4010iMZEA1#,ZWE219202211-202307

(L)

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iMZEA18..LHD;MZEA12,ZWE219201901-202507

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iMZEA12..D201901-202507

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42050iMZEA18..LHD;MZEA12,ZWE219202209-202507

main48820-47040iMZEA12,ZRE212,ZWE21#201901-202208

48811BAR, STABILIZER, FRONT

main48811-12B00iMZEA12..D201901-202507

main48811-12B10iMZEA12201909-202208

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-12420iZRE212,ZWE211201901-202201

main48815-12430iMZEA12201909-202109

sub48815-12431

main48815-12431iMZEA12202110-202201

main48815-12440iMZEA12202202-202208

main48815-12460iMZEA18..LHD;MZEA12,ZWE219202202-202507

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-12420iZRE212,ZWE211201901-202201

main48815-12430iMZEA12201909-202109

sub48815-12431

main48815-12431iMZEA12202110-202201

main48815-12440iMZEA12202202-202208

main48815-12460iMZEA12..D202202-202507

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iMZEA18;MZEA12,ZWE219..L201901-202507

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42050iMZEA18..LHD;MZEA12,ZWE219202209-202507

main48820-47040iMZEA12,ZRE212,ZWE211201901-202208

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-47020iMZEA12..D201901-202507

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-47020iMZEA12..D201901-202507

9011910993

main90119-10993

9038715033

main90387-15033

32 parts on this diagram · 1 diagram in section
