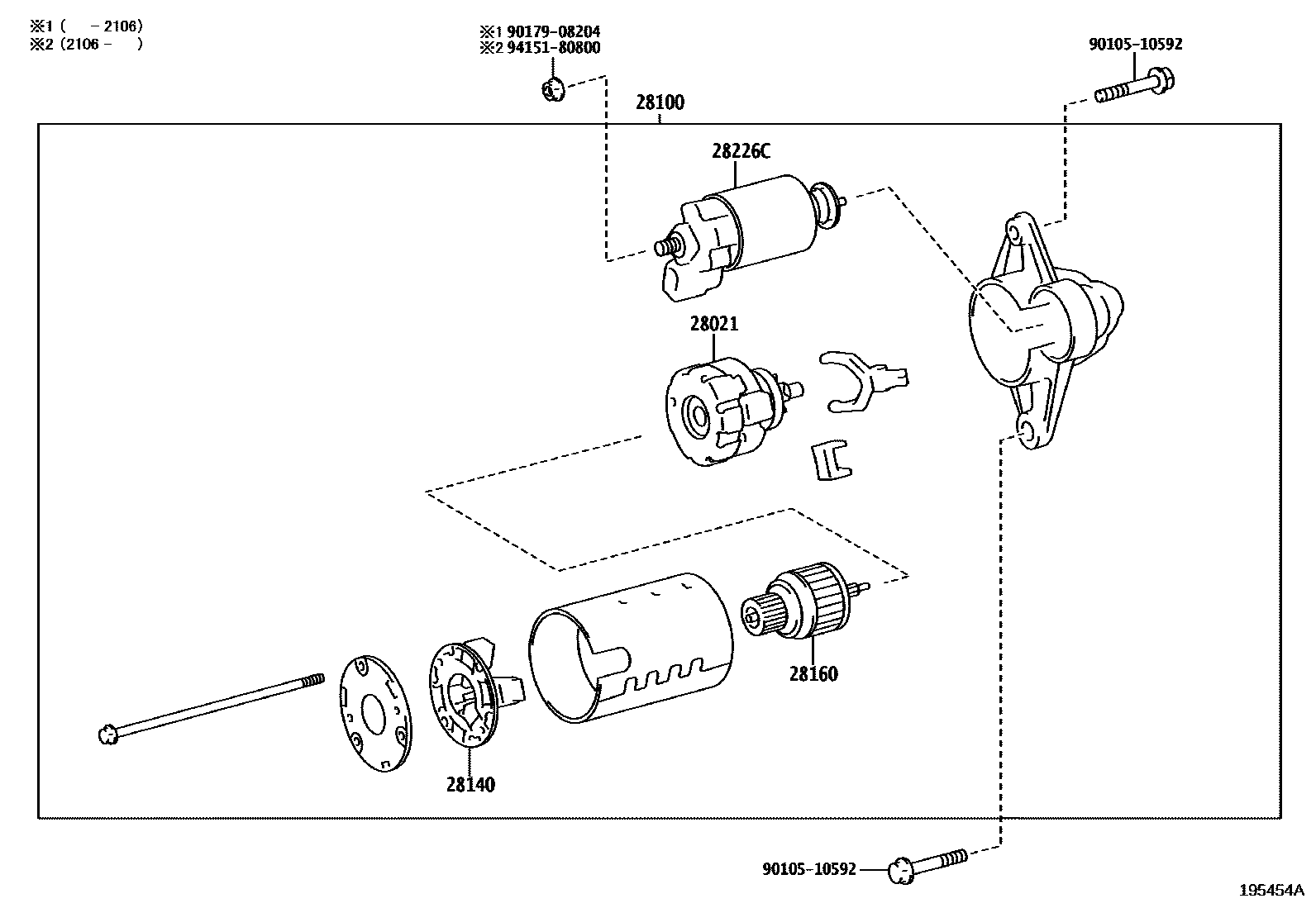

STARTER

0001 112V 1.2KW 0002 112V 1.2KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-24120iM20AFKS..MZEA18..RHD202209-202307

main28021-47170i2ZRFAE..ZRE212202004-202208

28100STARTER ASSY

main28100-24120iM20AFKS..MZEA12201909-202004

12V 1.2KW

main28100-37130i2ZRFAE..ZRE212201901-202004

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iM20AFKS..MZEA12..D202409-202507

28160ARMATURE ASSY, STARTER

main28160-21080iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD202209-202409

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-24120iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD202209-202409

main28226-37130i2ZRFAE..ZRE212201901-202004

9010510592

main90105-10592

9017908204

main90179-08204

9415180800

main94151-80800

8 parts on this diagram · 2 diagrams in section
