ENGINE OVERHAUL GASKET KIT

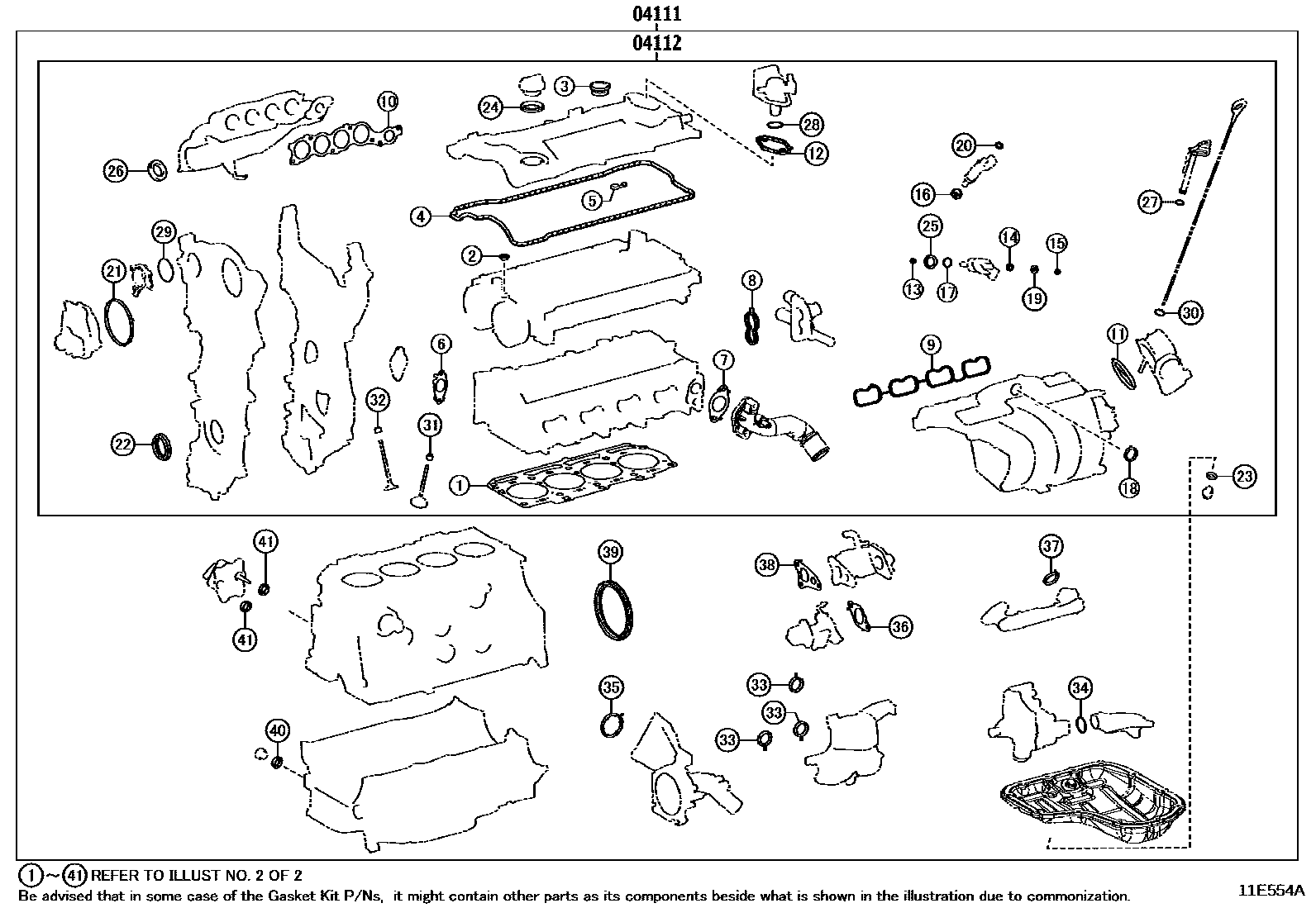

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-24120i202004-202107

main04111-24121i202409-202507

main04111-24200i202209-202409

main04111-37501i201901-202004

main04111-37540i201901-202004

main04111-37541i202110-202208

main04111-37560i202004-202109

main04111-37561i202110-202208

04112GASKET KIT, ENGINE VALVE GRIND

main04112-24060i202004-202107

main04112-24061i202409-202507

main04112-24120i202209-202307

main04112-37224i202004-202109

main04112-37225i202110-202208

main04112-37381i201901-202004

main04112-37400i202004-202109

main04112-37401i202110-202208

2 parts on this diagram · 8 diagrams in section
