NAVIGATION & FRONT MONITOR DISPLAY

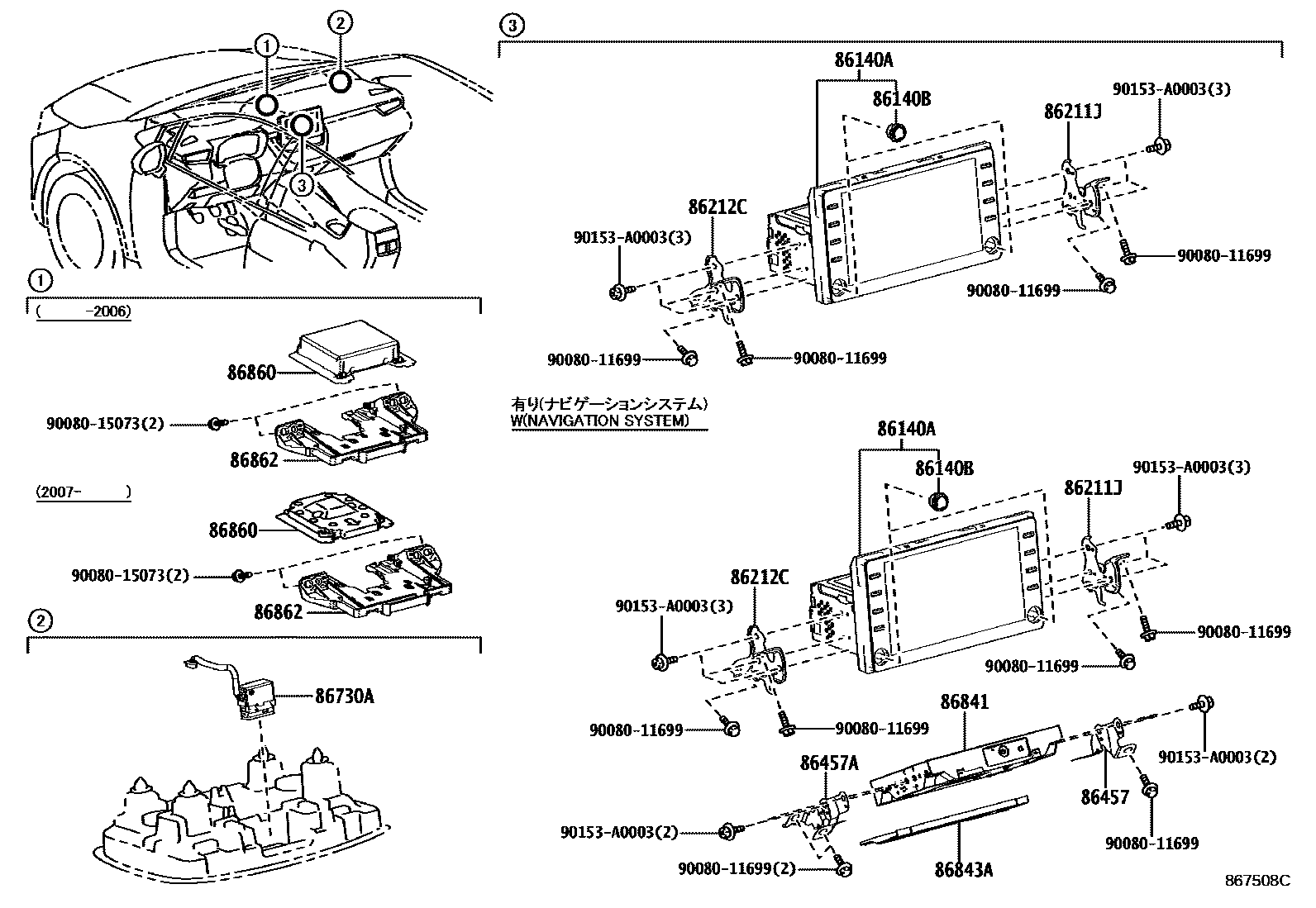

Parts diagram
86140ARECEIVER ASSY, RADIO & DISPLAY
main86140-02240i202007-202107
PIONEER
main86140-02241i202107-202211
PIONEER
main86140-02620i201903-202007
PIONEER
main86140-02A50i201903-202007
PIONEER
main86140-02B60i201903-202007
PIONEER
main86140-02B70i201903-202007
PIONEER
main86140-02B90i202211
DENSO TEN
main86140-02E70i202007-202107
PIONEER
main86140-02E71i202107-202211
PIONEER
main86140-02E80i202007-202107
PIONEER; PIONEER,PUERTO RICO SPEC&AUDIO-8INCH 6SPEAKER
main86140-02E81i202107-202211
PIONEER; PIONEER,PUERTO RICO SPEC&AUDIO-8INCH 6SPEAKER
main86140-02E90i202007-202107
PIONEER
main86140-02E91i202107-202211
PIONEER
main86140-02K00i202211-202410
DENSO TEN
main86140-02R10i202410
DENSO TEN; DENSO TEN,AUDIO-ENTRY(10.5INCH) & 6SPEAKER
main86140-02R40i202410
DENSO TEN; DENSO TEN,AUDIO-ENTRY(10.5INCH) & JBL
main86140-02630i201903-202007
PIONEER,AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86140-02640i201903-202007
PIONEER; PIONEER,AUDIO-8INCH 6SPEAKER
main86140-02650i201903-202007
PIONEER,AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86140-02660i201903-202007
PIONEER; PIONEER,AUDIO-8INCH 6SPEAKER
main86140-02670supersedes 86140-02E30i201903-202007
PIONEER,AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86140-02770supersedes 86140-02D90i201903-202007
PIONEER,AUDIO-8INCH 6SPEAKER
main86140-02780supersedes 86140-02D90i201903-202007
PIONEER,AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86140-02790supersedes 86140-02E30i201903-202007
PIONEER,AUDIO-8INCH 6SPEAKER
main86140-02800supersedes 86140-02E30i201903-202007
PIONEER,AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86140-02B80i201903-202007
PIONEER,AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86140-02D80i202007-202211
PIONEER,AUDIO-T0.5(8INCH) & JBL 9PEAKER
main86140-02D90i202007-202211
PIONEER; PIONEER,AUDIO-8INCH 6SPEAKER
main86140-02E00i202007-202211
PIONEER,AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86140-02E20supersedes 86140-02D90i202007-202211
PIONEER,AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86140-02E30i202007-202211
PIONEER; PIONEER,AUDIO-8INCH 6SPEAKER
main86140-02E40supersedes 86140-02E30i202007-202211
PIONEER,AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86140-02E50supersedes 86140-02E30i202007-202211
PIONEER,AUDIO-8INCH 6SPEAKER
main86140-02E60supersedes 86140-02E30i202007-202211
PIONEER,AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86140-02F00i202007-202211
PIONEER,AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86140-02J90supersedes 86140-02B90i202211-202410
DENSO TEN,AUDIO-8INCH 6SPEAKER & JBL
main86140-02K10i202211-202410
DENSO TEN,AUDIO-8INCH 6SPEAKER & JBL
main86140-02R20i202410
DENSO TEN,AUDIO-ENTRY(10.5INCH) & JBL
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
main90010-22128×2i202007-202107
main90010-22129×2supersedes 90010-22139i201903-202007
AUDIO-8INCH 6SPEAKER
main90010-22138×2i202107-202211
main90011-23051i202211-202410
86211JBRACKET, RADIO RECEIVER, NO.1
main86211-02540i202410
86212CBRACKET, RADIO RECEIVER, NO.2
main86212-02540i202211
86457BRACKET, MULTI-MEDIA MODULE NO.1
main86457-02030i202007-202211
AUDIO-8INCH 6SPEAKER; AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
86457ABRACKET, MULTI-MEDIA MODULE NO.2
main86457-02040i201903-202007
AUDIO-8INCH 6SPEAKER; AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
86730AMICROPHONE ASSY, TELEPHONE
main86730-0C020×2i202211
main86730-12081i201903-202007
86841COMPUTER, NAVIGATION
main86840-0E081i202007-202008
AUDIO-8INCH 6SPEAKER; AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86840-0E082i202009-202102
AUDIO-8INCH 6SPEAKER; AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86840-0E083i202103-202108
AUDIO-8INCH 6SPEAKER; AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86840-0E084i202109-202202
AUDIO-8INCH 6SPEAKER; AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86840-0E085i202203-202208
AUDIO-8INCH 6SPEAKER; AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86840-0E086i202209-202211
AUDIO-8INCH 6SPEAKER; AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86840-0R011i201903-201908
AUDIO-8INCH 6SPEAKER; AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86840-0R012i201909-202007
AUDIO-8INCH 6SPEAKER; AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
86843ACOVER, NAVIGATION COMPUTER
main86843-02020i202007-202211
AUDIO-8INCH 6SPEAKER; AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
86860ANTENNA ASSY, NAVIGATION
main86880-02090i202211
main86880-06010i201903-202007
AUDIO-8INCH 6SPEAKER; PUERTO RICO SPEC; USA POSSESSIONS SPEC; USA POSSESSIONS SPEC&AUDIO-7INCH 6SPEAKER; USA POSSESSIONS SPEC&AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
main86880-0E010i202007-202211
AUDIO-8INCH 6SPEAKER; PUERTO RICO SPEC&AUDIO-8INCH 6SPEAKER
86862BRACKET, NAVIGATION ANTENNA
main86862-42010i202211
main86862-58020i201903-201912
AUDIO-8INCH 6SPEAKER; PUERTO RICO SPEC; USA POSSESSIONS SPEC; USA POSSESSIONS SPEC&AUDIO-7INCH 6SPEAKER; USA POSSESSIONS SPEC&AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER
9008011699
main90080-11699
9008015073
main90080-15073
90153A0003
main90153-A0003

14 parts on this diagram · 2 diagrams in section
