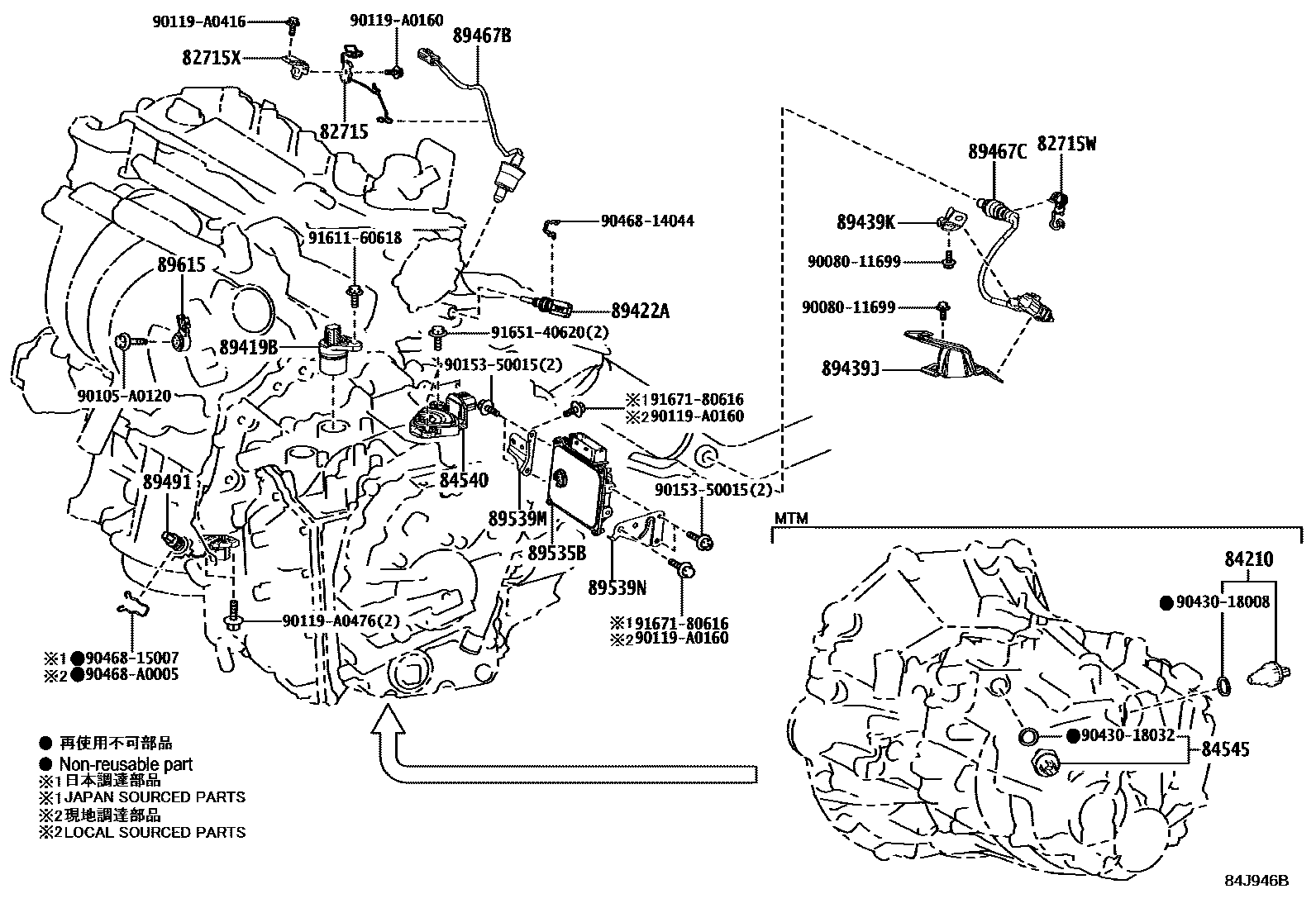

82715BRACKET,WIRING HARNESS CLAMP

main82715-10410iZRE212201903-202211

main82715-12V90iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

82715WBRACKET, WIRING HARNESS CLAMP

main82729-20040iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-0Z390iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iMZEA12,ZRE212..6F201903-202211

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMZEA12..CVT201903-202309

main84540-52070iZRE212..CVT201903-202211

main89451-42010iMZEA1#..L,S,Y;MZEA18..D..CND202309-202410

84545SWITCH, NEUTRAL POSITION

main84545-52010iMZEA12,ZRE212..6F201903-202211

89419BSENSOR, SHIFT STROKE

main89419-12010iMZEA12..CVT201903-201904

sub89419-12011

main89419-12011iMZEA12..CVT202106-202203

MARK=CS1

main89419-12011iMZEA12..CVT201905-202309

main89419-K2010iMZEA1#..L,S,Y;MZEA18..D..CND202106-202410

MARK=HK-82

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

89439JBRACKET, SENSOR, NO.2

main82715-02V70iMZEA18..D..USA201903-202410

89439KBRACKET, SENSOR, NO.3

main82715-02V80iMZEA1#..L,S,Y;MZEA18..D..CND201903-202410

89467BSENSOR, AIR FUEL RATIO

main89467-02090iZRE212201903-202211

main89467-02130iMZEA12201903-202309

main89467-0A010iMZEA1#..L,S,Y;MZEA18..D..CND202309-202410

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-02140iMZEA12201903-202309

main89467-02360iMZEA1#..L,S,Y;MZEA18..D..CND202309-202410

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iMZEA12201903-202204

sub89491-33052

main89491-33052iMZEA12202205-202304

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-12040iMZEA12..CVT201903-201906

sub89535-12041

main89535-12041iMZEA12..CVT201907-202107

main89535-12230iMZEA12..CND;MZEA12..Y..USA202211-202309

*614

main89535-12240iMZEA18;MZEA12..S..USA202211-202309

*614

main89535-12360iMZEA12..CVT202107-202211

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-12070iMZEA1#201903-202309

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-12080iMZEA12..CVT201903-202309

89615SENSOR, KNOCK CONTROL

main89615-06010iMZEA1#..L,S,Y;MZEA18..D..CND202007-202410

main89615-06010iZRE212201903-202211

(L)

main89615-06010iMZEA12202209-202211

MARK 89615-06010

main89615-20090iZRE212201903-202211

(J)

main89615-F6010iMZEA12202209-202211

MARK 89615-F6010

9008011699

main90080-11699

90105A0120

main90105-A0120

90119A0160

main90119-A0160

90119A0416

main90119-A0416

90119A0476

main90119-A0476

9015350015

main90153-50015

9043018008

main90430-18008

9043018032

main90430-18032

9046814044

main90468-14044

9046815007

main90468-15007

90468A0005

main90468-A0005

9161160618

main91611-60618

9165140620

main91651-40620

9167180616

main91671-80616

31 parts on this diagram · 15 diagrams in section
