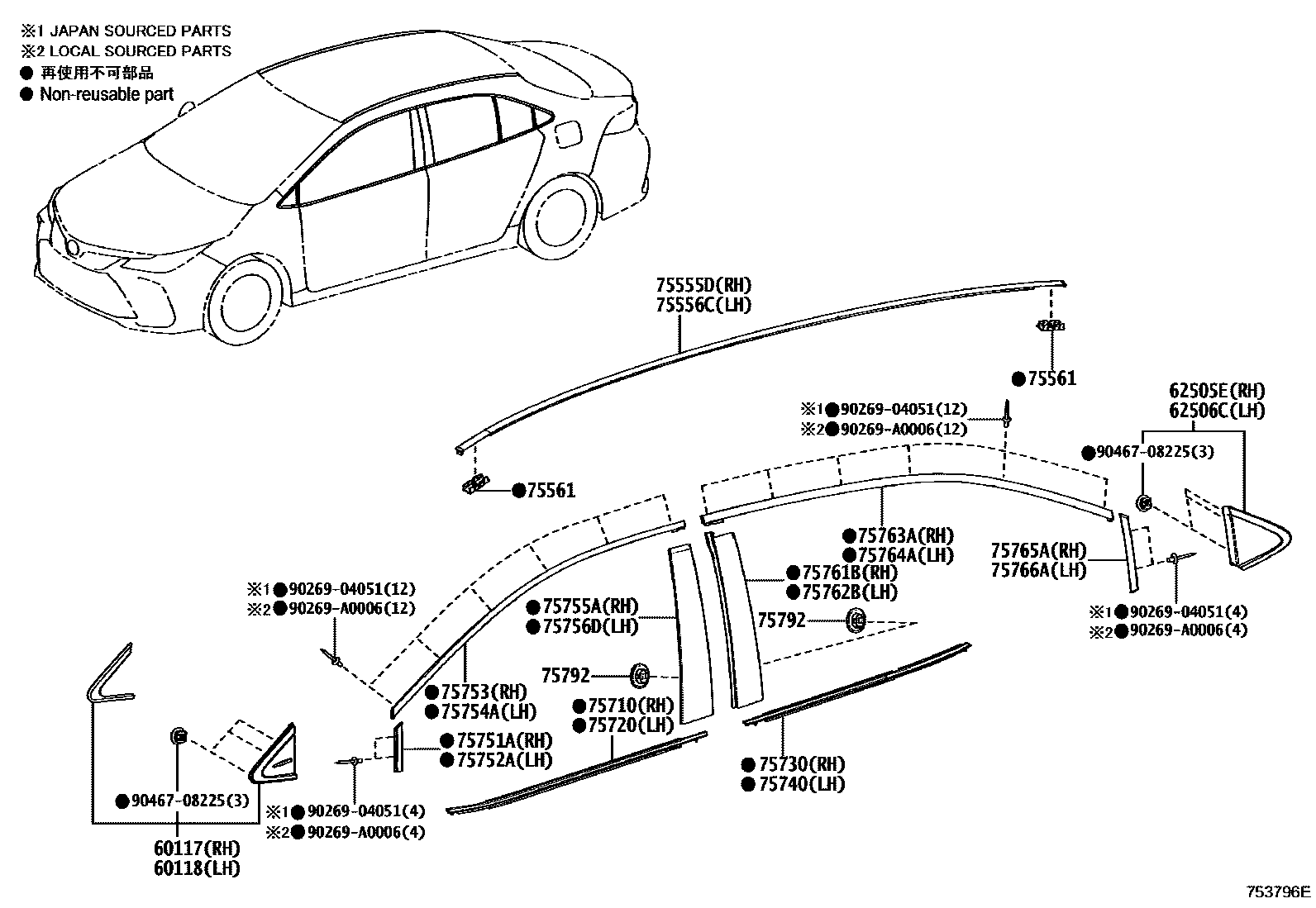

SIDE MOULDING

0001 1 0002 1 0004 1 0005 1

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02210iMZEA12,ZRE212..D,L,S,Y201903-202007

main60117-02220iZRE212..X202007-202211

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02210iMZEA18..D..USA202211

main60118-02220iZRE212..X201903-202007

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-02010iMZEA18..D..USA202211

NO PAINT REQ.

main62505-02020iZRE212..X201903-202007

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-02010iMZEA1#..L,S,Y;MZEA18..D..CND202410

NO PAINT REQ.

main62506-02020iZRE212..X201903-202007

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-02290iMZEA1#..L,S,Y;MZEA18..D..CND202410

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-02280iMZEA18..D..USA202211

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iMZEA1#..L,S,Y;MZEA18..D..CND202410

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-02470iMZEA1#..L,S,Y;MZEA18..D..CND202410

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-02470iMZEA1#..L,S,Y;MZEA18..D..CND202410

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-02450iMZEA1#..L,S,Y;MZEA18..D..CND202410

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-02450iMZEA1#..L,S,Y;MZEA18..D..CND202410

75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)

main75751-02010iMZEA1#..L,S,Y;MZEA18..D..CND202410

75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)

main75752-02010iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-02010iMZEA12,ZRE212..D,L,S,Y202007-202211

main75753-02020iZRE212..X201903-202007

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-02010iMZEA1#..L,S,Y;MZEA18..D..CND202410

NO PAINT REQ.

main75754-02020iZRE212..X202007-202211

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-02110iMZEA12,ZRE212201903-202007

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-02110iMZEA1#..L,S,Y;MZEA18..D..CND202410

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-02120iMZEA1#..L,S,Y;MZEA18..D..CND202410

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-02120iMZEA12,ZRE212201903-202007

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-02010iMZEA12,ZRE212..D,L,S,Y202007-202211

main75763-02020iZRE212..X201903-202007

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-02010iMZEA1#..L,S,Y;MZEA18..D..CND202410

main75764-02020iZRE212..X201903-202007

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-02010iMZEA1#..L,S,Y;MZEA18..D..CND202410

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-02010iMZEA1#..L,S,Y;MZEA18..D..CND202410

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-0R010×2iMZEA12,ZRE212202007-202211

(L)

main75792-47010×2iMZEA12,ZRE212202007-202211

(J)

9026904051

main90269-04051

90269A0006

main90269-A0006

9046708225

main90467-08225

27 parts on this diagram · 4 diagrams in section
