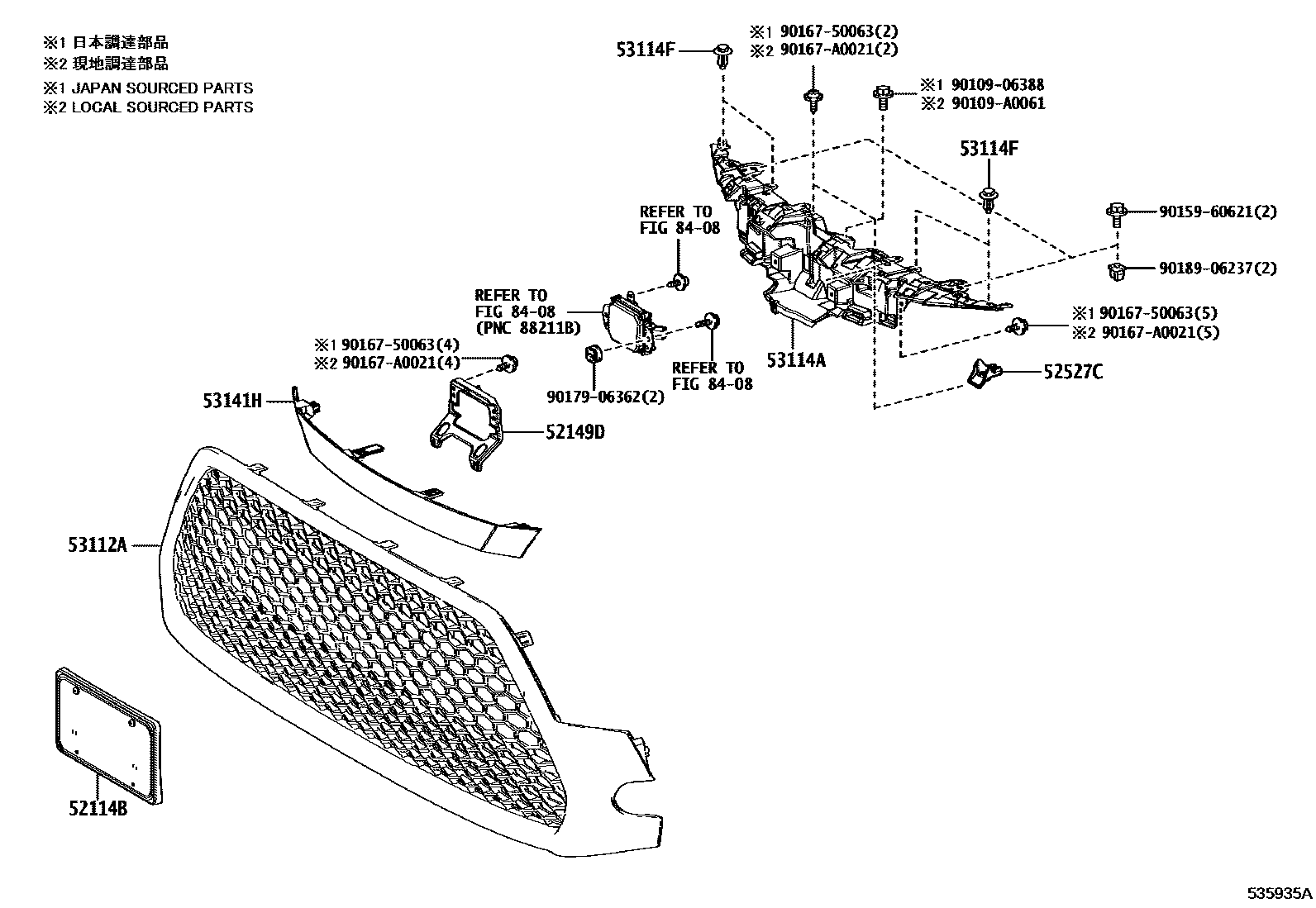

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1

52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-02200iZRE212..CND; ZRE212..USA202007-202211

LICENSE PLATE BRACKET-WITH(FRONT) & WITHOUT(REAR)

main52114-02210iMZEA12..CND; MZEA12..USA201903-202007

LICENSE PLATE BRACKET-WITH(FRONT) & WITHOUT(REAR)

main52114-02290iMZEA18..CND; MZEA18..L..USA202211-202410

LICENSE PLATE BRACKET-WITH

main52114-02300iMZEA12..CND; MZEA12..USA202410

LICENSE PLATE BRACKET-WITH

52149DBRACKET, FRONT BUMPER, INNER

main52149-02010iMZEA12201903-202007

main52149-02060iMZEA12202211-202410

APEX

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-02110iMZEA1#..L,S,Y;MZEA18..D..CND202410

53112AGRILLE, RADIATOR, LOWER

main53112-02A50iMZEA12202001-202007

main53112-02760iMZEA12202009-202211

APEX

main53112-02E10iMZEA12202211-202410

APEX

main53112-02G10iMZEA12..S202309-202410

NIGHT SHADE

53114AGRILLE, RADIATOR, INNER

main53114-02510iMZEA18..L;MZEA18..D..CND202410

main53114-02560iMZEA12202007-202202

main53114-02561iMZEA12202203-202211

53114FCLIP, RADIATOR GRILLE

main90467-05063-C0×4iMZEA1#..L,S,Y;MZEA18..D..CND202410

BLACK

53141HGARNISH, RADIATOR GRILLE

main53141-02180iMZEA12201903-202007

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9010906388

main90109-06388

90109A0061

main90109-A0061

9015960621

main90159-60621

9016750063

main90167-50063

90167A0021

main90167-A0021

9017906362

main90179-06362

9018906237

main90189-06237

15 parts on this diagram · 4 diagrams in section
