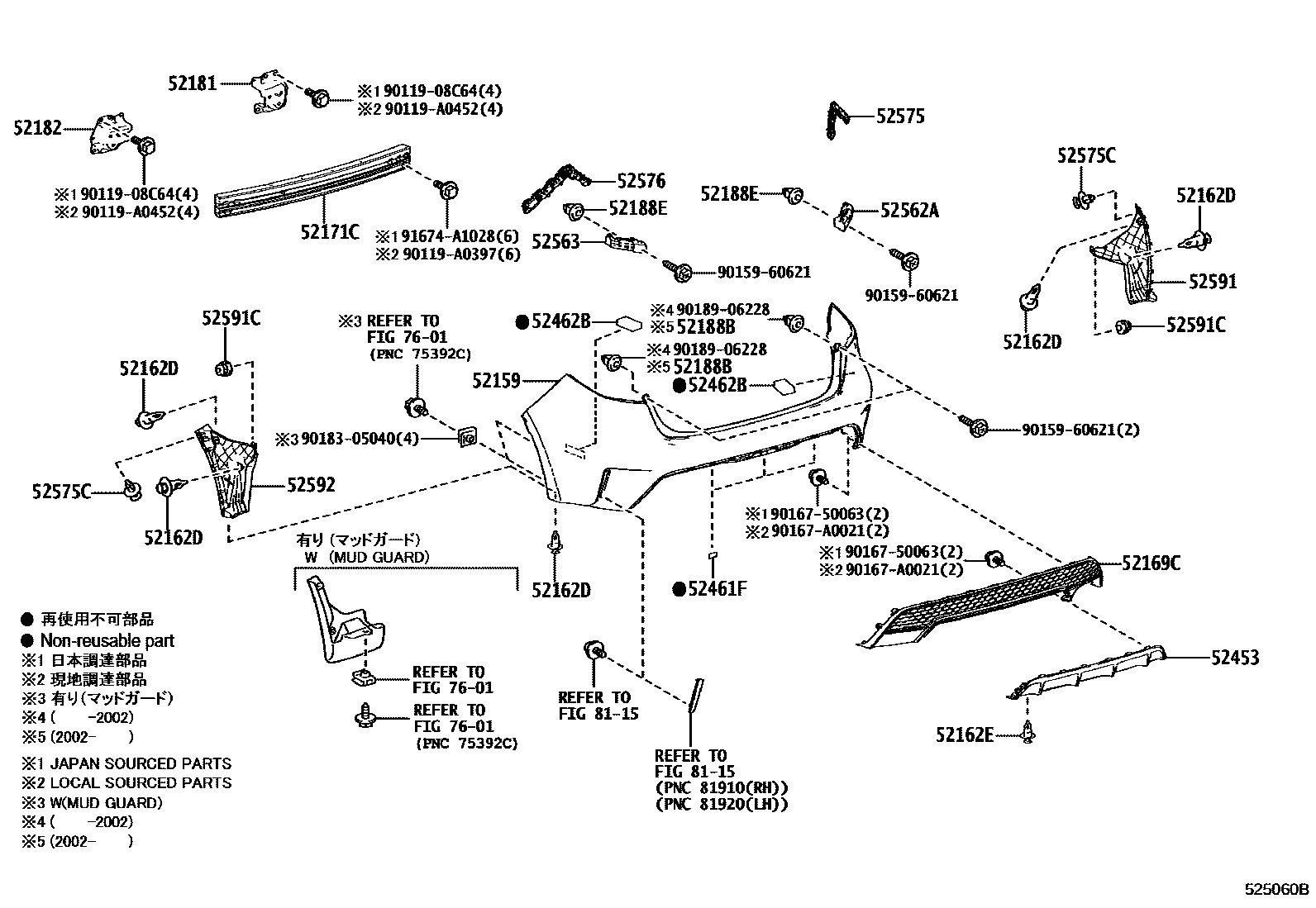

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,APEX
52162DPIECE, REAR BUMPER
52162EPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.,NIGHT SHADE&BUMPER & GRILLE GARNISH-WITH(REAR BUMPER PROTECTOR); PAINT REQ.,NIGHT SHADE&MUD GUARD-WITH&BUMPER & GRILLE GARNISH-WITH(REAR BUMPER PROTECTOR)
NO PAINT REQ.; NO PAINT REQ.,APEX; NO PAINT REQ.,APEX&BUMPER & GRILLE GARNISH-WITH(REAR BUMPER PROTECTOR)
NO PAINT REQ.,NIGHT SHADE; NO PAINT REQ.,NIGHT SHADE&BUMPER & GRILLE GARNISH-WITH(REAR BUMPER PROTECTOR)
52171CREINFORCEMENT, REAR BUMPER
52181ARM, REAR BUMPER, RH
52182ARM, REAR BUMPER, LH
52188BSPACER, REAR BUMPER MOUNTING
52188ESPACER, REAR BUMPER MOUNTING
52453GUARD, REAR BUMPER, CENTER
52461FPAD, REAR BUMPER
52462BPAD, REAR BUMPER
52562ARETAINER, REAR BUMPER FILLER, NO.2
52563RETAINER, REAR BUMPER FILLER, NO.3
52575RETAINER, REAR BUMPER SIDE, RH
52575CCLIP, REAR BUMPER SIDE RETAINER
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
BLACK
(L)
52592SEAL, REAR BUMPER SIDE, LH
7601MUDGUARD & SPOILER
8115REFLEX REFLECTOR
9011908C64
main90119-08C64
90119A0397
main90119-A0397
90119A0452
main90119-A0452
9015960621
main90159-60621
9016750063
main90167-50063
90167A0021
main90167-A0021
9018305040
main90183-05040
9018906228
main90189-06228
91674A1028
main91674-A1028
31 parts on this diagram · 4 diagrams in section
