83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iZRE172201308-201309

(L),DENSO

main83530-12050iZRE172201308-201310

YAZAKI

sub83530-12060

main83530-12050iZRE172201401-201502

PAINTED

sub83530-12060

main83530-12060iZRE172201310-201401

main83530-12060iZRE172201401-201608

NO PAINTED

main83530-28020iZRE172201308-201310

(J),DENSO

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iZRE172..6F201308-201608

84540SWITCH ASSY, NEUTRAL START

main84540-46010iZRE172..4FC201308-201608

main84540-52070iZRE172..CVT201308-201608

84545SWITCH, NEUTRAL POSITION

main84545-52010iZRE172..6F201608

89429FSENSOR, TEMPERATURE

main89429-12010iZRE172..HTWVM201308-201608

89465SENSOR, OXYGEN

main89465-02390iZRE172201308-201608

89467BSENSOR, AIR FUEL RATIO

main89467-02090iZRE172201308-201608

89615SENSOR, KNOCK CONTROL

main89615-06010iZRE172201308-201608

(L)

main89615-20090iZRE172201308-201608

(J)

8271520C40BRACKET,WIRING HARNESS CLAMP

main82715-20C40

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

90105A0105

main90105-A0105

90105A0120

main90105-A0120

9043012221

main90430-12221

9043018008

main90430-18008

9043018032

main90430-18032

9155180835

main91551-80835

9165140620

main91651-40620

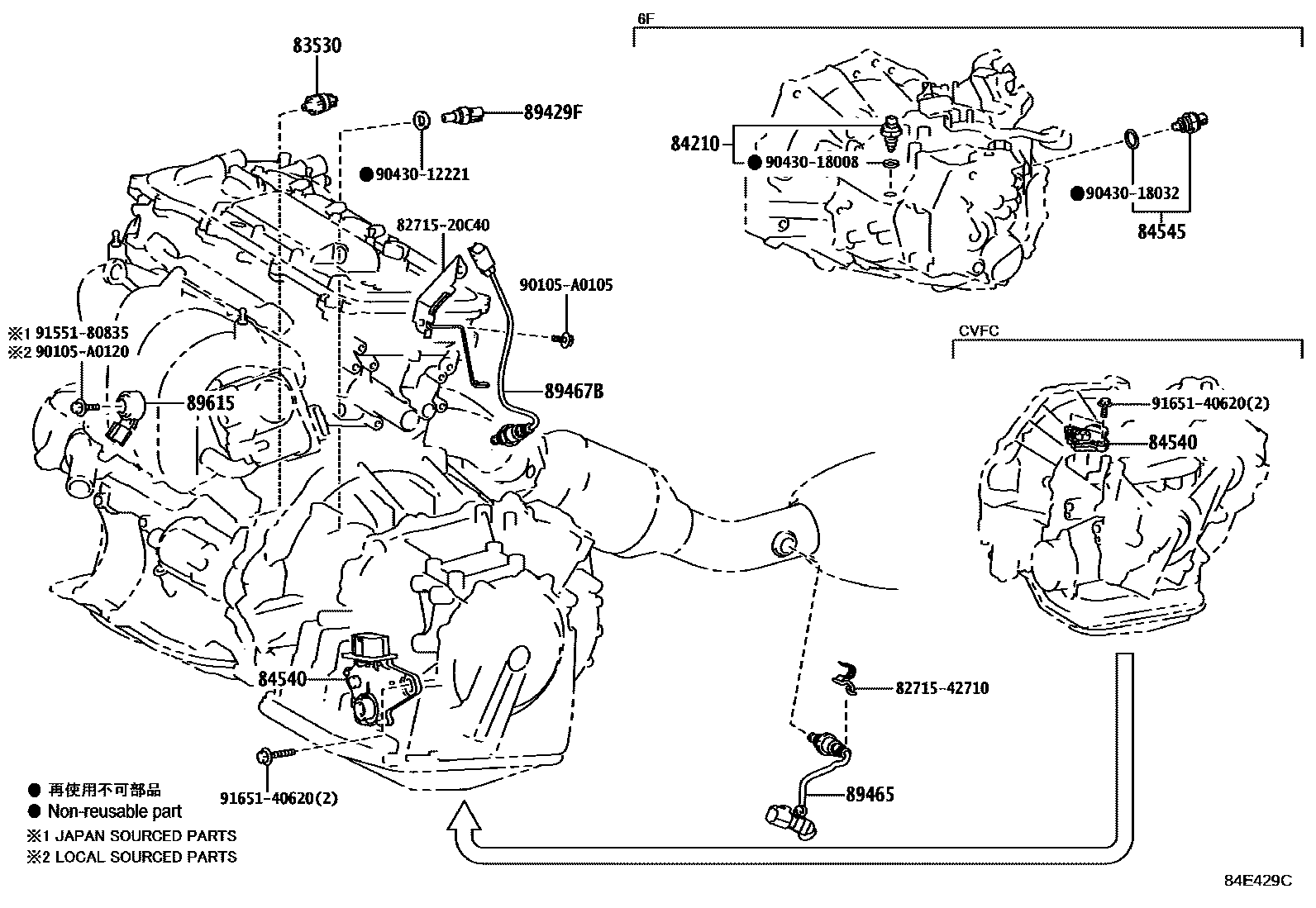

17 parts on this diagram · 10 diagrams in section
