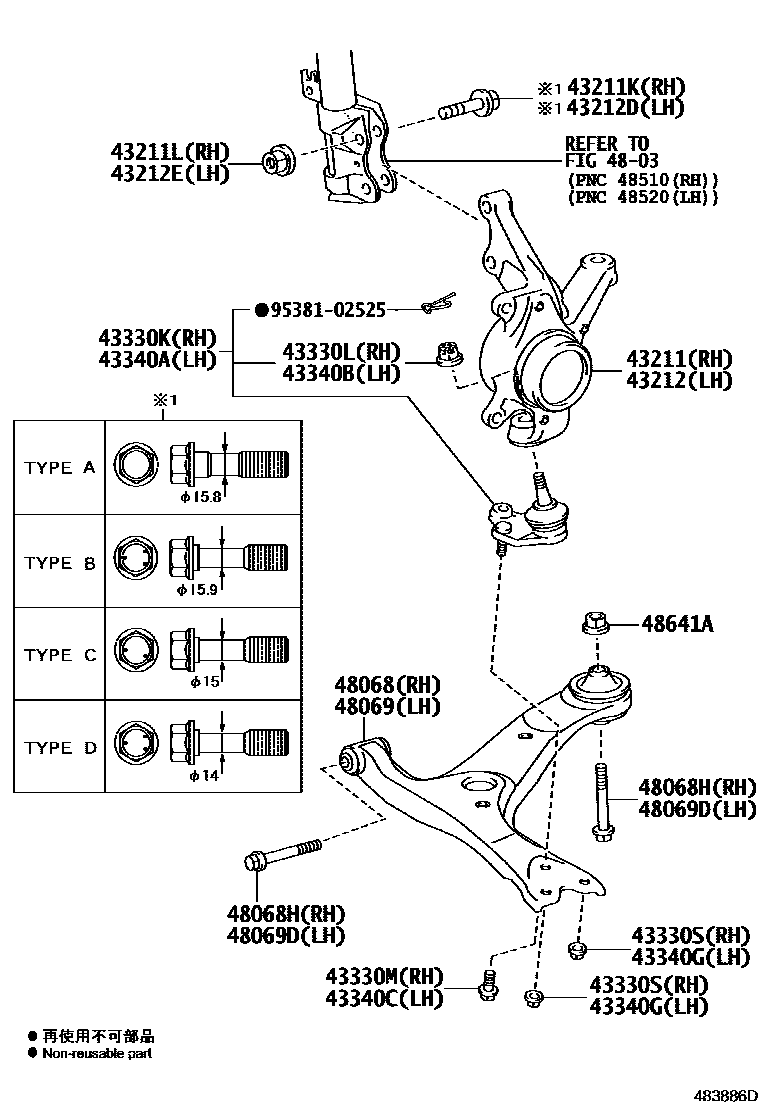

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-02220i201308-201608

43211KBOLT (FOR STEERING KNUCKLE RH)

main90080-10335×2i201608

OD=15.8,TYPE A:REFER ILLUST.

main90105-17009i201308-201608

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010i201308-201608

OD=15,TYPE C:REFER ILLUST.

main90105-17011i201608

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-A0027×2i201608

43212KNUCKLE, STEERING, LH

main43212-02220i201308-201608

43212DBOLT (FOR STEERING KNUCKLE LH)

main90080-10335×2i201308-201608

OD=15.8,TYPE A:REFER ILLUST.

main90105-17009i201608

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010i201308-201608

OD=15,TYPE C:REFER ILLUST.

main90105-17011i201308-201608

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-A0027×2i201308-201608

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09670i201608

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90080-17214i201308-201608

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-A0227i201308-201608

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-A0019×2i201308-201608

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09670i201308-201608

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90080-17214i201308-201608

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-A0227i201308-201608

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-A0019×2i201308-201608

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-02300i201308-201608

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90080-11506×2i201308-201608

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-02300i201308-201608

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90080-11506×2i201308-201608

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90080-17223×2i201308-201608

9538102525

main95381-02525

21 parts on this diagram · 1 diagram in section
