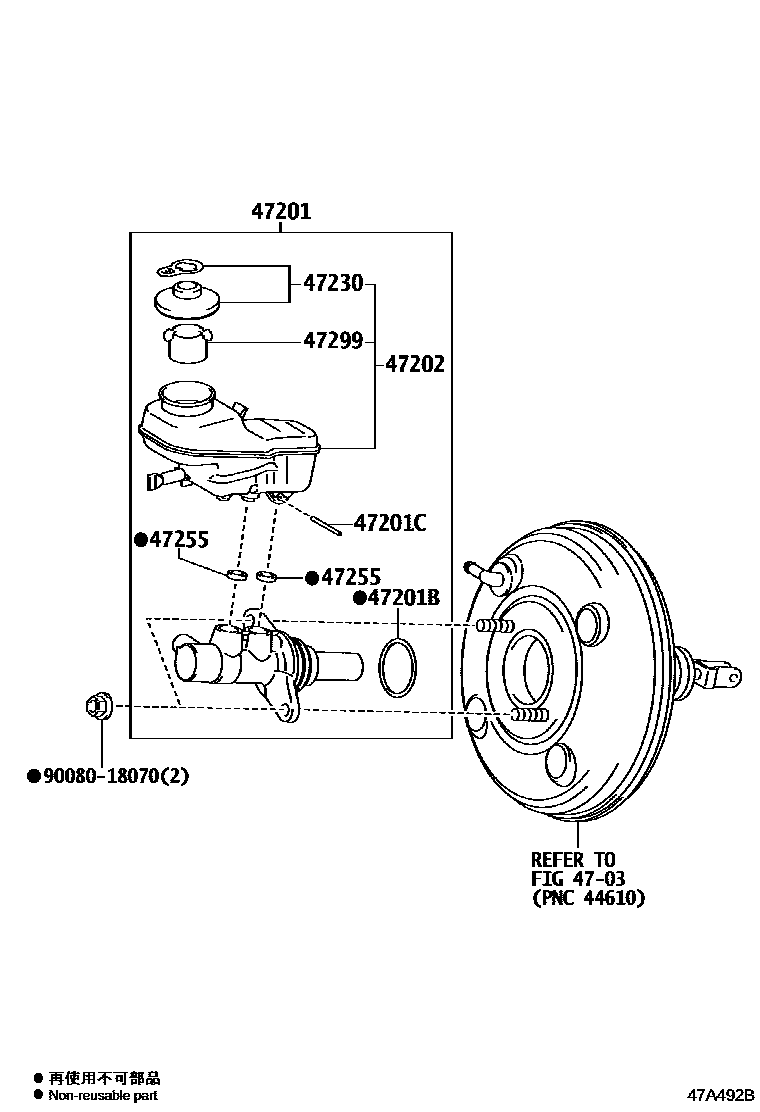

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02660iZRE172..ATM,CVT201308-201608

main47201-02670iZRE172..6F201308-201608

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZRE172201608

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iZRE172201308-201608

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-02340iZRE172..ATM,CVT201308-201608

main47220-02350iZRE172..6F201308-201608

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iZRE172201308-201508

main47230-01031iZRE172201508-201608

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iZRE172201308-201608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iZRE172201308-201608

9008018070

main90080-18070

9 parts on this diagram · 1 diagram in section
