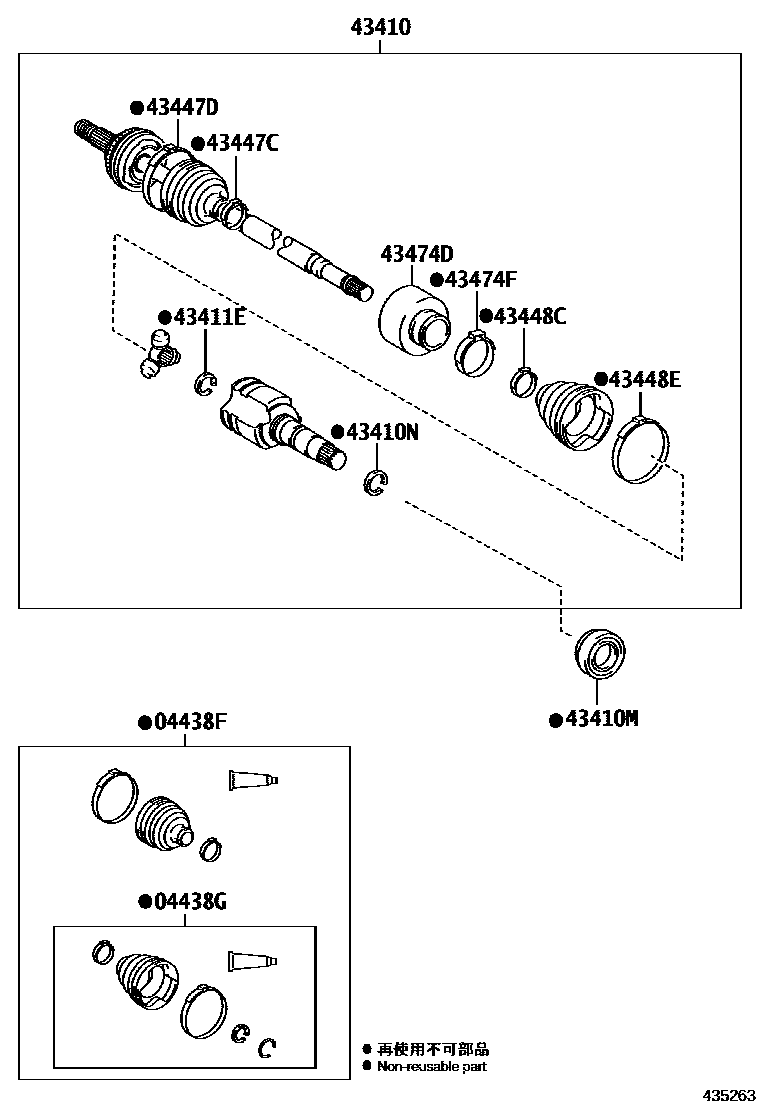

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-01080iZRE172201608

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-01020iZRE172201308-201608

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02A01iZRE172201308-201412

main43410-02A02iZRE172201608-201804

main43410-02A03iZRE172201805

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35055iZRE172..4FC201308-201412

main90311-35065iZRE172..6F201608

main90311-35069iZRE172..CVT201505-201608

main90311-35076iZRE172..CVT201808

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-01030iZRE172201308-201608

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-01040iZRE172201308-201608

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0R080iZRE172201308-201608

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0R070iZRE172201308-201608

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-01040iZRE172201308-201608

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-01030iZRE172201308-201608

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-01021iZRE172201308-201608

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-02871×2iZRE172201308-201608

12 parts on this diagram · 3 diagrams in section
