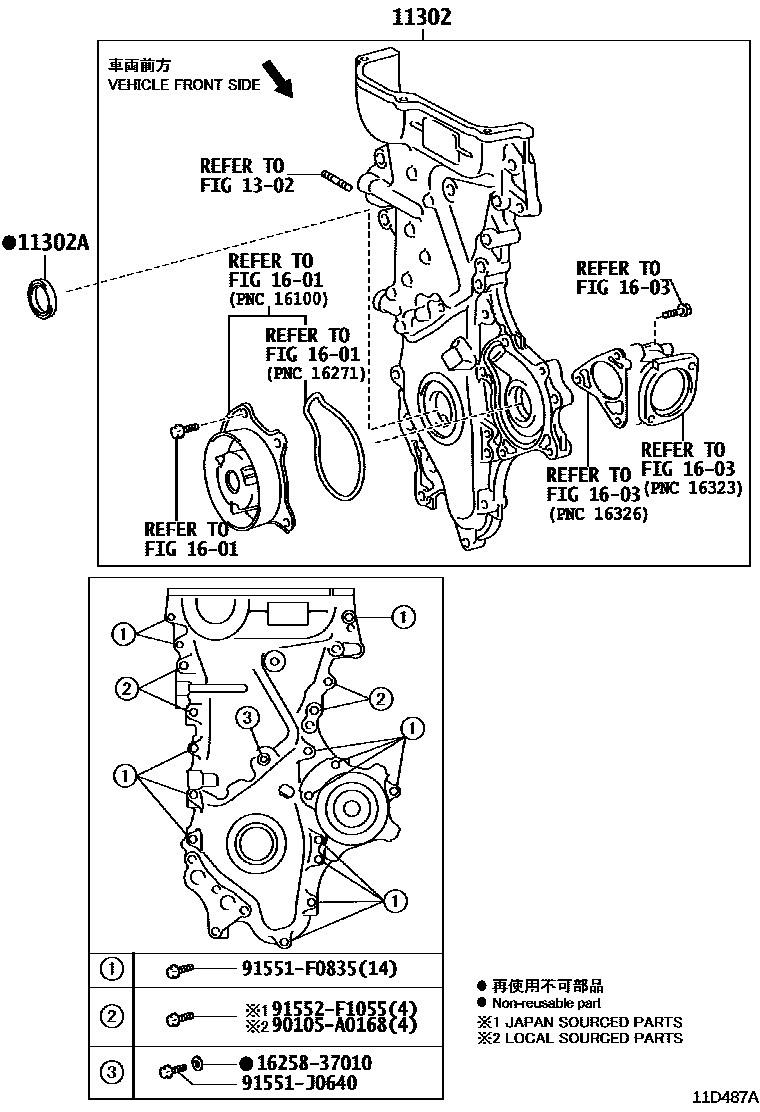

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0T010i2ZRFAE..ZRE172201608

(L)

main11310-0T042i2ZRFE..ZRE172201608

(L)

main11310-37011i2ZRFE..ZRE172201608

(J)

main11310-37040i2ZRFAE..ZRE172201308-201608

(J)

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38096i2ZR#..ZRE172201308-201608

(J)

main90311-A0018i2ZR#..ZRE172201308-201608

(L)

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1601WATER PUMP

→ Go to FIG 16-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

90105A0168

main90105-A0168

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

10 parts on this diagram · 1 diagram in section
