HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

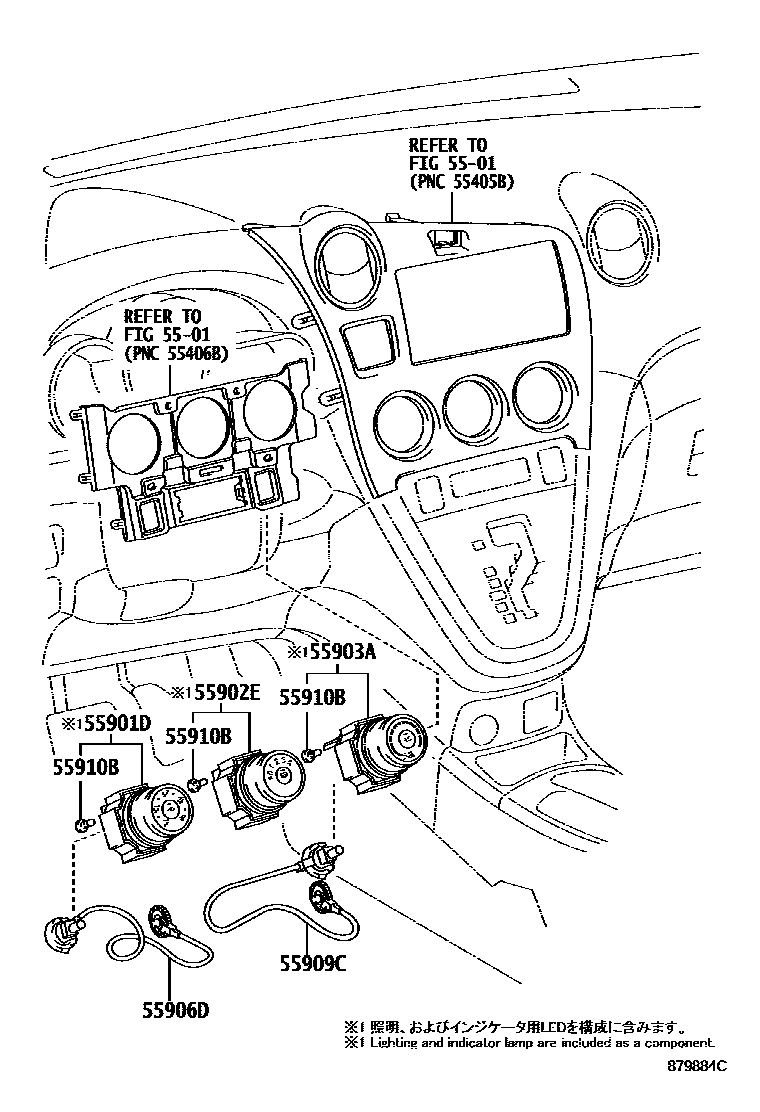

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-02030iAZE14#,ZRE142201012

main55901-02060iAZE14#,ZRE142200801-201012

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-02030iAZE14#,ZRE142201012

main55902-02070iAZE14#,ZRE142200808-201012

main55902-02130iAZE14#,ZRE142200801-200808

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-02070iAZE14#;ZRE142..USA201012-201308

main55903-02130iAZE14#;ZRE142..USA200801-201012

main55903-02050iZRE142..USA201012-201308

COLD AREA SPEC

main55903-02150iZRE142..CND; ZRE142..USA200801-201012

COLD AREA SPEC

main55903-02160supersedes 55903-02150iZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

main55903-02260supersedes 55903-02150iZRE142..CND201012

AIR CONDITIONER-WITHOUT

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-0K010iAZE14#,ZRE142200801-201012

main55906-26060iAZE14#,ZRE142201205-201406

(J)

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K010iAZE14#,ZRE142200801-201012

main55909-26080iAZE14#,ZRE142201205-201406

(J)

55910BBULB, HEATER CONTROL

main90010-01122×3iAZE14#,ZRE142200801-201012

7 parts on this diagram · 3 diagrams in section
