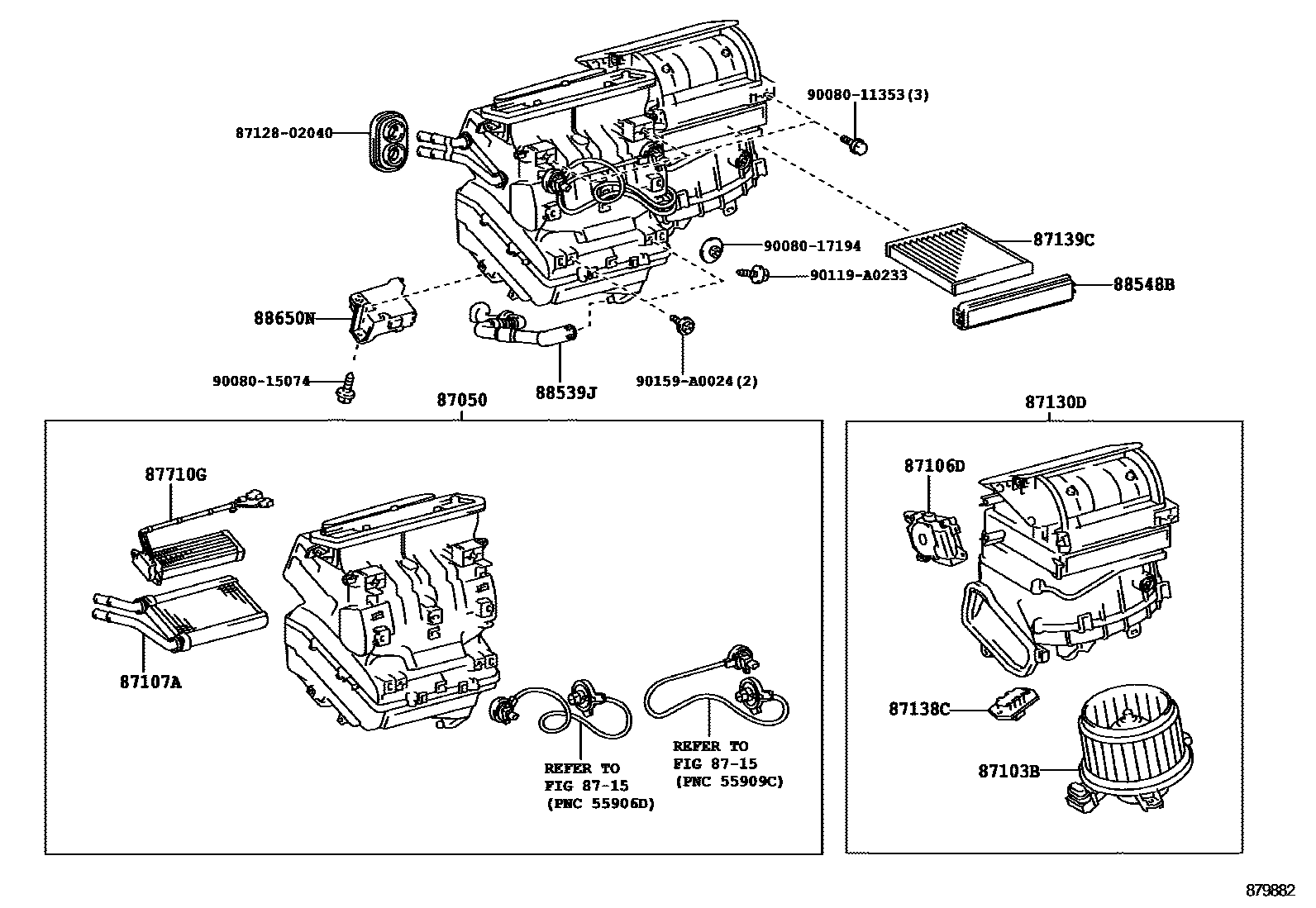

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1W/O(AIR CONDITIONER) 0002 1MANUAL AIR CONDITIONER 0003 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02B70iAZE14#;ZRE142..USA200801-201012

main87050-02C10iZRE142..CND; ZRE142..USA200801-201012

COLD AREA SPEC

main87050-02C20supersedes 87050-02C10iZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02200iAZE14#,ZRE142200801-201012

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-02210iAZE14#,ZRE142200801-201012

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02230iAZE14#,ZRE142200801-201012

87130DBLOWER ASSY

main87130-02500iAZE14#;ZRE142..USA200801-201012

main87130-02520iZRE142..CND201012

87138CRESISTOR, BLOWER

main87138-02110iAZE14#,ZRE142200801-201012

87139CFILTER, CLEAN AIR

main87139-02090iAZE14#,ZRE142; AZE141,ZRE142..(5F,5FC)..USA200801-201012

MEXICO SPEC,MICRO DUST FILTER; MICRO DUST FILTER

main87139-07020iAZE14#,ZRE142201302

MICRO DUST FILTER

main87139-50060iAZE14#,ZRE142201012-201204

DEODORANT FILTER

main87139-50100iAZE14#,ZRE142201205

*DPF

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87710GQUICK HEATER ASSY

main87710-02040iZRE142..CND; ZRE142..USA200801-201012

COLD AREA SPEC

88539JHOSE, DRAIN COOLER

main88539-02160iAZE14#,ZRE142200801-201012

main88539-02410iZRE142..CND201302

88548BCASE, AIR FILTER

main88548-02110iAZE14#,ZRE142200801-201012

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02490iAZE14#;ZRE142..USA200801-201012

main88650-02530iZRE142..4FC..CND; ZRE142..CND; ZRE142..USA200801-201012

AIR CONDITIONER-WITHOUT; COLD AREA SPEC

main88650-02770supersedes 88650-02760iZRE142..CND201012

8712802040GROMMET, HEATER

main87128-02040

9008011353

main90080-11353

9008015074

main90080-15074

9008017194

main90080-17194

90119A0233

main90119-A0233

90159A0024

main90159-A0024

18 parts on this diagram · 3 diagrams in section
