Toyota MATRIX — RADIO RECEIVER & AMPLIFIER & CONDENSER

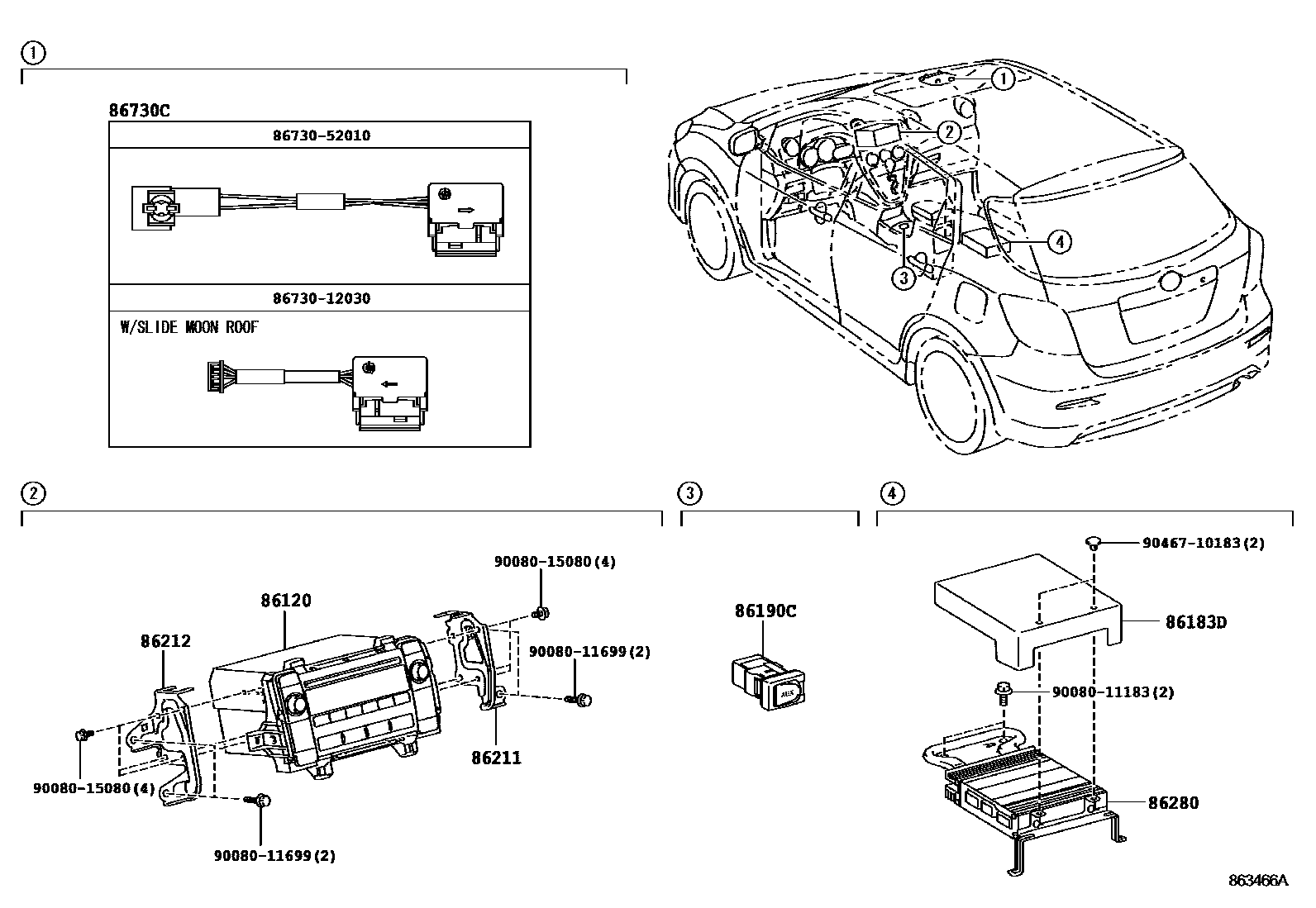

Parts diagram

86120RECEIVER ASSY, RADIO

86183DCOVER, AUDIO AMPLIFIER

86190CADAPTER ASSY, STEREO JACK, NO.1

86211BRACKET, RADIO, NO.1

86212BRACKET, RADIO, NO.2

86280AMPLIFIER ASSY, STEREO COMPONENT

86730CMICROPHONE ASSY, TELEPHONE

9008011183

9008011699

9008015080

9046710183

11 parts on this diagram · 4 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota MATRIX

This section contains 19 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota MATRIX. Key components include: CONDENSER, RADIO SETTING, RECEIVER ASSY, RADIO, KNOB, RADIO RECEIVER SWITCH, COVER, AUDIO AMPLIFIER.
