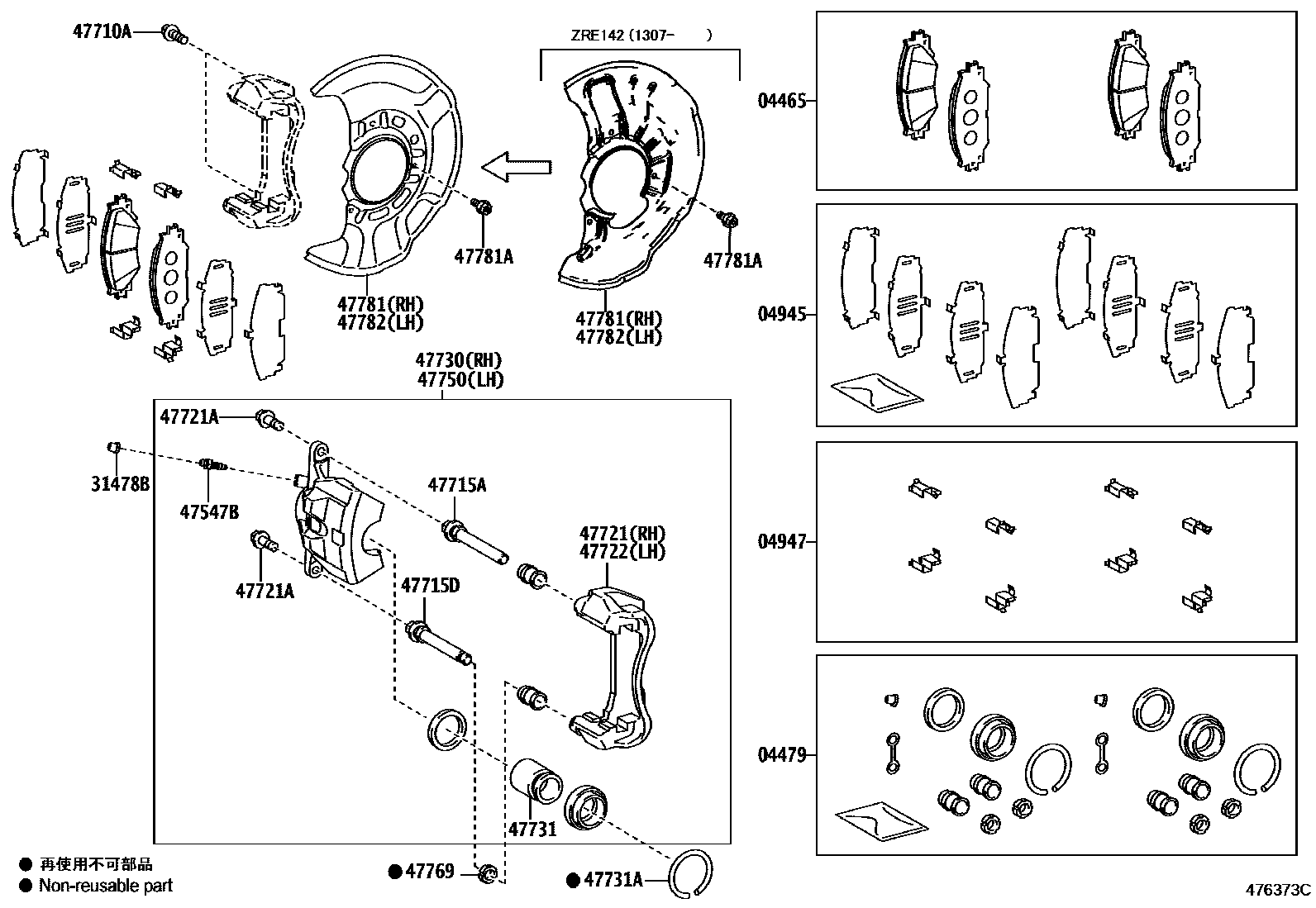

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02230iAZE14#200801-201012

MARK ADVICS PV565H

main04465-02240iZRE142200801-201012

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02230iZRE142201012

main04478-02240iAZE14#200801-200811

main04478-0R020iAZE14#200811-201012

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02140iAZE14#200801-200811

main04945-02150iZRE142200801-201012

main04945-0R030iAZE14#200811-201012

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0R010iAZE14#200811-201012

main04947-42050iZRE142201012

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAZE14#; ZRE142200801-201012

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-06040×2iAZE14#201012-201211

ADVICS

main47547-12130×2iAZE14#201211-201308

AKEBONO

main47547-20010×2iZRE142200801-201011

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10067×4iAZE14#,ZRE142201012-201406

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-02400×2iZRE142200801-201012

main47715-04080×2iAZE14#200801-201012

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-02400×2iZRE142201012

main47715-33340×2iAZE14#201012-201308

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02400iZRE142201012

main47721-02410iAZE14#200801-201012

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA103×4iAZE14#200801-201012

main90016-AA604×4iZRE142200801-201012

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-02400iZRE142201012

main47722-02410iAZE14#200801-201012

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02400iZRE142201012

main47730-02410iAZE14#200801-201012

47731PISTON, FRONT DISC BRAKE

main47731-02400×2iZRE142200801-201012

main47731-02401×2iZRE142201105

main47731-08020×2iAZE14#200801-201012

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90016-AU506×2iZRE142201012

main90080-52108×2iAZE14#200811-201012

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02400iZRE142201012

main47750-02410iAZE14#200801-201012

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iZRE142201105

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02130iZRE142200801-201012

main47781-02140iAZE14#200801-201012

main47781-02210iZRE142201307-201406

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11429×6iAZE14#,ZRE142201012-201406

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-02140iAZE14#200801-201012

main47782-02130iZRE142200801-201012

main47782-02210iZRE142201307-201406

20 parts on this diagram · 1 diagram in section
