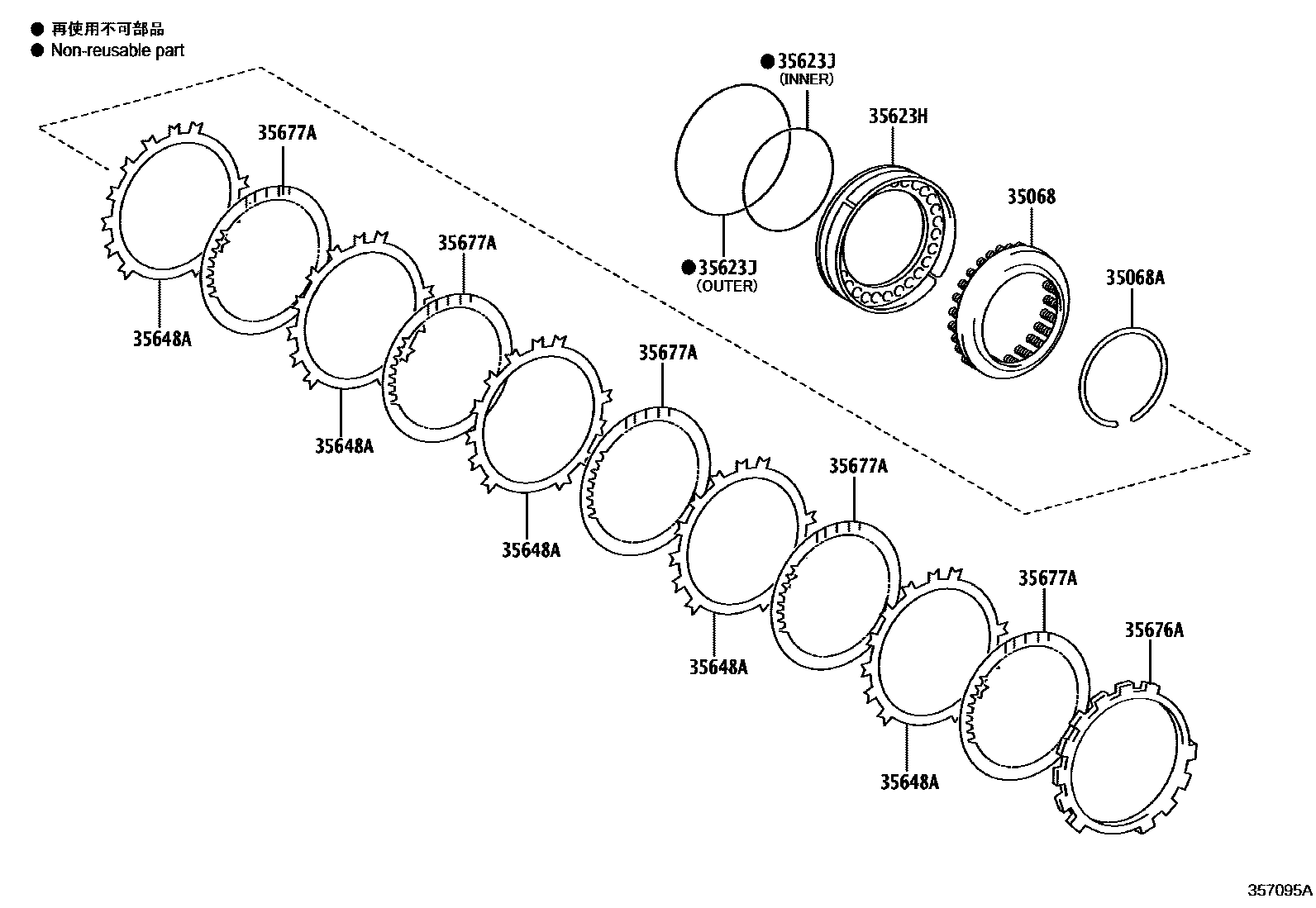

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U140F,U250E 0002 1U341E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21010iAZE141,146..5FC200801-201012

main35068-21011iAZE144201012-201308

main35068-52030iZRE142..4FC201012

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iAZE14#..ATM200801-201012

35623HPISTON, 1ST & REVERSE BRAKE

main35623-28020iAZE144200801-201012

main35623-33050iAZE141,146..5FC200801-201012

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99096iAZE14#..ATM201012-201308

INNER

main90301-99098iAZE14#..ATM200801-201012

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-21011×5iAZE14#..ATM200801-201012

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iAZE14#..ATM200801-201012

T=1.8,MARK 1

main35678-21020iAZE14#..ATM200801-201012

T=1.9,MARK 2

main35678-21030iAZE14#..ATM200801-201012

T=2.0,MARK 3

main35678-21040iAZE14#..ATM201012-201308

T=2.1,MARK 4

main35678-21050iAZE14#..ATM200801-201012

T=2.2,MARK 5

main35678-21060iAZE14#..ATM201012-201308

T=2.3,MARK 6

main35678-21070iAZE14#..ATM200801-201012

T=2.4,MARK 7

main35678-21080iAZE14#..ATM201012-201308

T=2.5,MARK 8

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-28010×5iAZE14#..ATM201012-201308

7 parts on this diagram · 2 diagrams in section
