TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

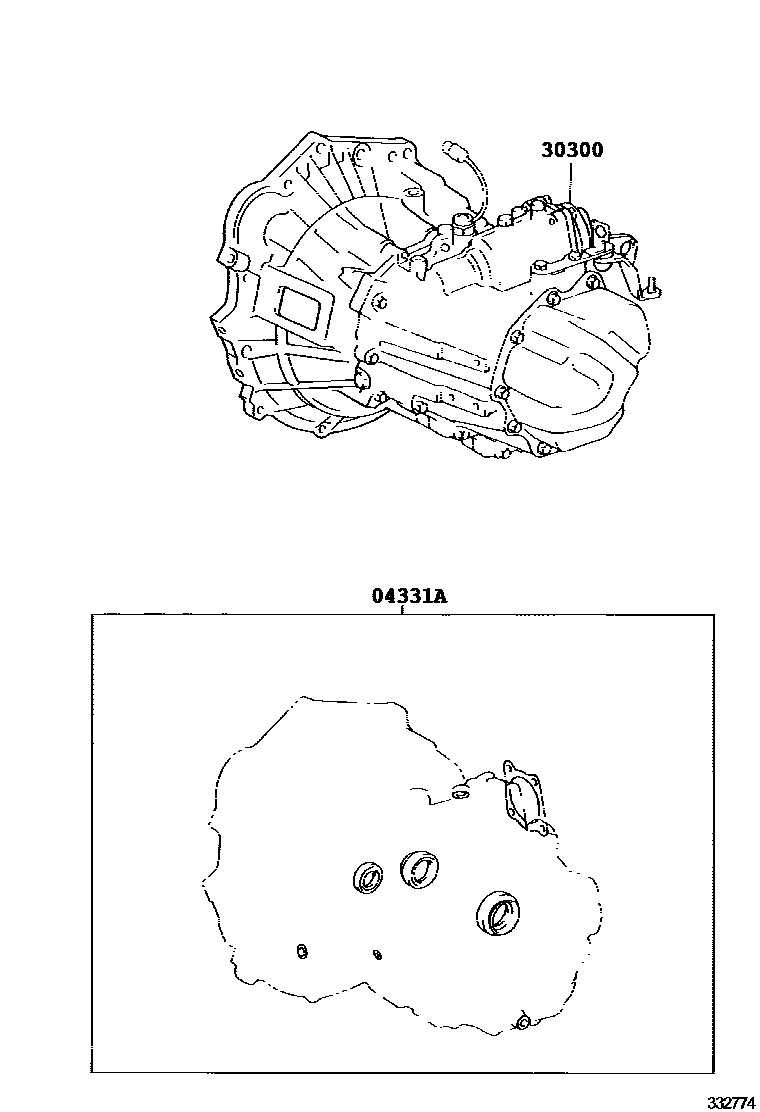

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12650i200801-201010

main04331-12800i201010-201012

main04331-20240i201012-201308

30300TRANSAXLE ASSY, MANUAL

main30300-12B60i200801-201012

E351

main30300-12B70i200801-201012

C59

2 parts on this diagram · 2 diagrams in section
