ALTERNATOR

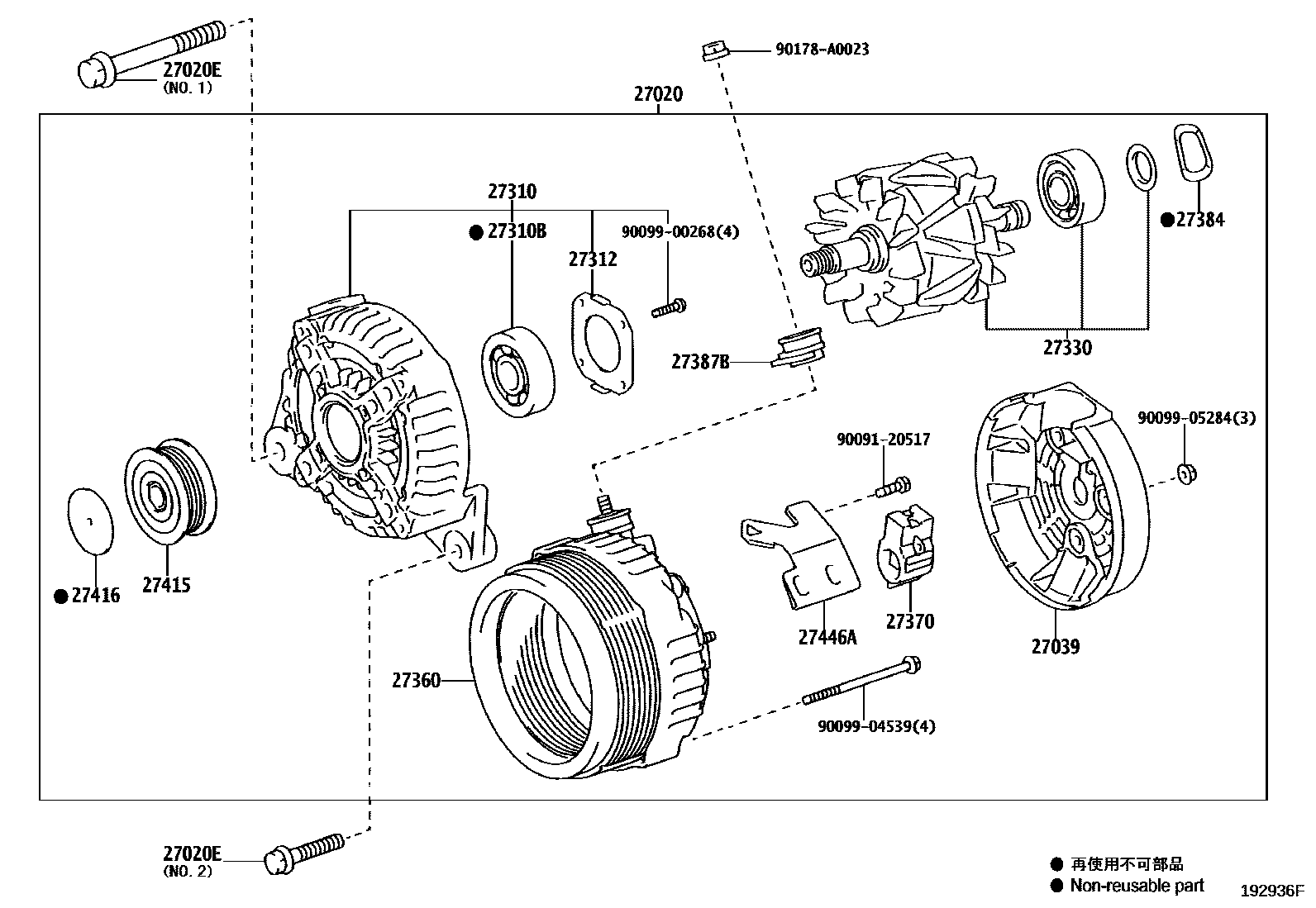

Parts diagram
27020ALTERNATOR ASSY
main27060-0H110i200801-200807
12V 100A
sub27060-0H111
main27060-0H111i200808-201308
12V 100A
main27060-0T040i200801-200810
12V 100A
sub27060-0T041
main27060-0T041i200811-201012
12V 100A
main27060-0T130i201012
12V 100A
27020EBOLT(FOR ALTERNATOR)
main90080-10111i200801-201308
(L),NO.1
main90105-10307i200801-201012
main90105-A0145i200801-201308
(L),NO.2
main91512-81085i200801-201308
(J),NO.1
main91551-80840i200801-201308
(J),NO.2
27039COVER, ALTERNATOR REAR END
main27039-0A110i200801-200906
main27039-0T040i200801-201012
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-0H060i200801-201308
main27310-0T040i200801-201012
main27310-0T120i201012
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90068-10033i200801-201012
main90068-10142i200801-200811
27312PLATE, RETAINER
main27312-72100i200801-201012
27330ROTOR ASSY, ALTERNATOR
main27330-0F060i200801-201012
27360COIL ASSY, ALTERNATOR
main27360-0H070i200801-201308
main27360-0T040i200801-201012
27370HOLDER ASSY, ALTERNATOR BRUSH
main27370-0F060i200801-201308
main27370-0P020i200801-201012
27384WASHER
main27384-0A020i200801-201012
27387BINSULATOR, ALTERNATOR TERMINAL
main27387-0V060i201010-201012
main27387-20130i200801-201010
27415PULLEY, ALTERNATOR W/CLUTCH
main27415-0T010i200801-200810
sub27415-0T011
main27415-0T011i200811-201307
sub27415-0T060
sub27416-0W050
main27415-0T060i201308-201406
main27415-0W040i200801-200902
sub27415-0W041
main27415-0W041i200902-201308
sub27415-0W042
sub27416-0W050
27416CAP, ALTERNATOR PULLEY
main27416-0W020i200801-201308
main27416-0W050i201308-201406
27446ACLAMP
main27446-28120i200801-201308
9009120517
main90091-20517
9009900268
main90099-00268
9009904539
main90099-04539
9009905284
main90099-05284
90178A0023
main90178-A0023

19 parts on this diagram · 2 diagrams in section
