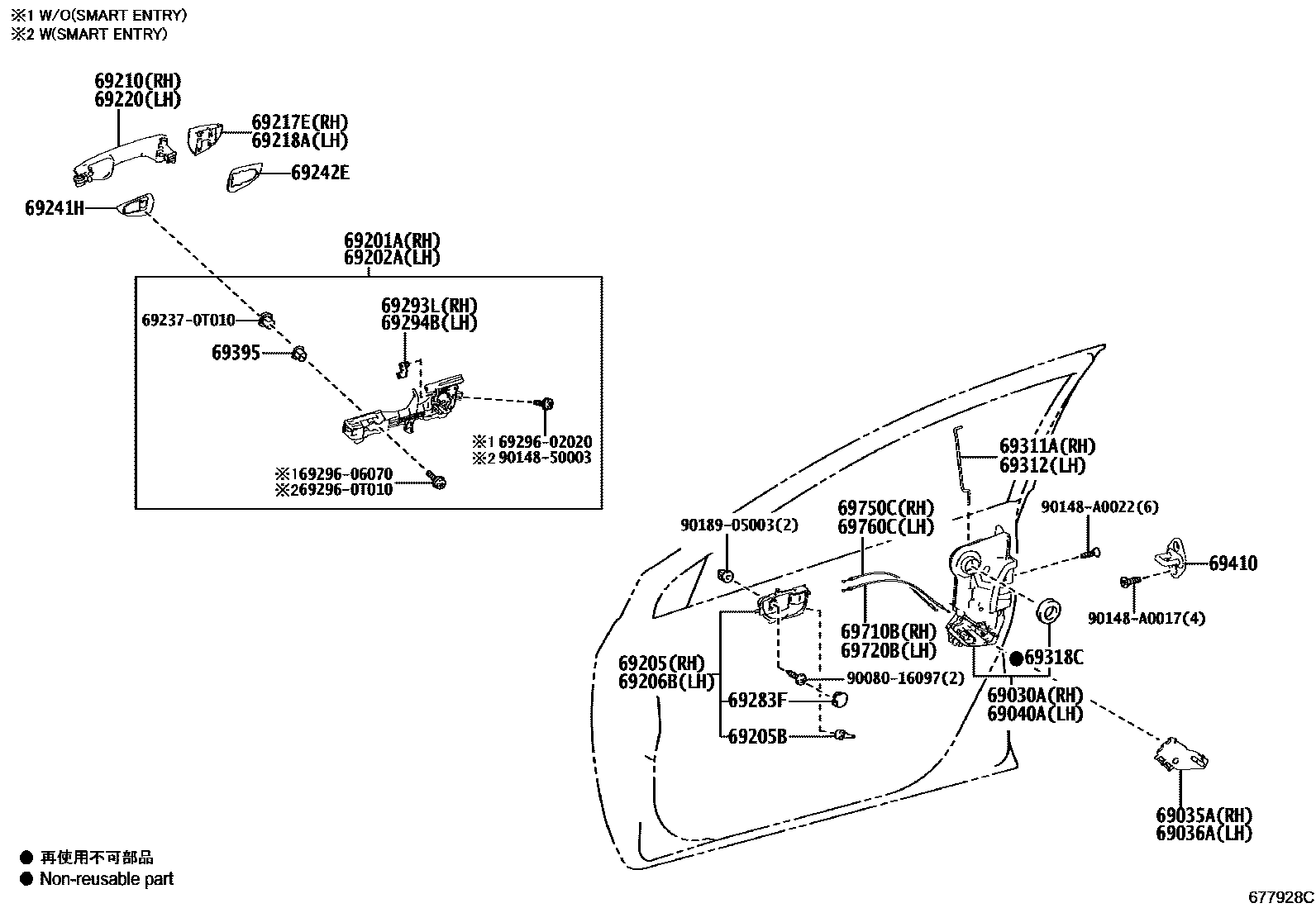

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02380iZRE172..4FC201308-201608

main69030-02550iZRE172..(LE,S)..GEN201404-201608

main69030-02660iZRE172..STD..GEN201404-201608

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02030iZRE172201308-201608

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02030iZRE172..4FC201308-201608

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02440iZRE172..MXC201308-201608

main69040-02520iZRE172..GEN201404-201608

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02240iZRE172..MXC;ZRE172..STD..GEN201308-201809

sub69201-02450

main69201-02450iZRE172..MXC;ZRE172..STD..GEN201809

main69201-0R010iZRE172..(LE,S)..GEN201404-201608

sub69201-0R120

main69201-0R010iZRE172..(LE,S)..GEN201608-201808

STARTING SYSTEM-PUSH(WITH/SMART)

sub69201-0R120

main69201-0R120iZRE172..(LE,S)..GEN201809

STARTING SYSTEM-PUSH(WITH/SMART)

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02180iZRE172..MXC;ZRE172..STD..GEN201308-201809

sub69202-02370

main69202-02370iZRE172..MXC;ZRE172..STD..GEN201809

main69202-0R010iZRE172..(LE,S)..MXC201608-201808

STARTING SYSTEM-PUSH(WITH/SMART)

sub69202-0R100

main69202-0R010iZRE172..(LE,S)..GEN201404-201608

sub69202-0R100

main69202-0R100iZRE172..(LE,S)..MXC201809

STARTING SYSTEM-PUSH(WITH/SMART)

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02250-A0iZRE172..LE;ZRE172..STD..GEN201308-201608

IVORY,TRIM0#

main69205-02250-A1iZRE172..LE201902-201903

FLAXEN,TRIM0#,(L)

main69205-02250-A1iZRE172..LE201608-201902

FLAXEN,TRIM0#

main69205-02250-B0iZRE172..LE201308-201902

GRAY,TRIM1#

main69205-02250-B0iZRE172..STD..GEN201404-201608

GRAY,TRIM16

main69205-02250-B0iZRE172..LE201902-201903

GRAY,TRIM1#,(L)

main69205-02250-C0iZRE172..S201608-201902

BLACK,TRIM1#

main69205-02250-C0iZRE172..S201608-201902

BLACK,TRIM2#

main69205-02250-C0iZRE172..S201308-201902

BLACK,TRIM2#,4#,8#

main69205-02250-C0iZRE172..LE201902-201903

BLACK,TRIM1#,(L)

main69205-02250-C0iZRE172..LE..MXC201308-201608

BLACK,TRIM2#,4#

main69205-02250-C0iZRE172..STD..GEN201404-201608

BLACK,TRIM11,4#

main69205-02250-C0iZRE172..STD..GEN201404-201608

BLACK,TRIM4#

main69205-02250-C0iZRE172..LE201902-201903

BLACK,TRIM2#,4#,8#,(L)

main69205-02250-C0iZRE172..S201902-201903

BLACK,TRIM2#,(L)

main69205-02270-C0iZRE172..STD..MXC201308-201903

BLACK,TRIM1#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iZRE172..4FC201308-201608

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02180-A0iZRE172..LE;ZRE172..STD..GEN201308-201608

IVORY,TRIM0#

main69206-02180-A1iZRE172..LE201902-201903

FLAXEN,TRIM0#,(L)

main69206-02180-A1iZRE172..LE201608-201902

FLAXEN,TRIM0#

main69206-02180-B0iZRE172..STD..GEN201404-201608

GRAY,TRIM16

main69206-02180-B0iZRE172..LE201308-201902

GRAY,TRIM1#

main69206-02180-B0iZRE172..LE201902-201903

GRAY,TRIM1#,(L)

main69206-02180-C0iZRE172..LE201902-201903

BLACK,TRIM1#,(L)

main69206-02180-C0iZRE172..LE..MXC201308-201608

BLACK,TRIM2#,4#

main69206-02180-C0iZRE172..LE..MXC201308-201902

BLACK,TRIM2#,4#,8#

main69206-02180-C0iZRE172..STD..GEN201404-201608

BLACK,TRIM11,4#

main69206-02180-C0iZRE172..STD..GEN201404-201608

BLACK,TRIM4#

main69206-02180-C0iZRE172..STD..GEN201608-201902

BLACK,TRIM1#

main69206-02180-C0iZRE172..STD..GEN201608-201902

BLACK,TRIM2#

main69206-02180-C0iZRE172..STD..GEN201902-201903

BLACK,TRIM2#,(L)

main69206-02180-C0iZRE172..STD..GEN201902-201903

BLACK,TRIM2#,4#,8#,(L)

main69206-02270-C0iZRE172..STD..MXC201308-201903

BLACK,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02140-A0iZRE172..(LE,S)..MXC201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),SUPER WHITE 2,040

main69210-02140-A0iZRE172..(LE,S)..GEN201404-201903

SUPER WHITE 2,040

main69210-02140-B0iZRE172..(LE,S)..MXC201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),SILVER ME.,1F7

main69210-02140-B0iZRE172..(LE,S)..GEN201404-201903

SILVER ME.,1F7

main69210-02140-B1iZRE172..(LE,S)..GEN201404-201903

GRAY ME.,1F9

main69210-02140-B1iZRE172..(LE,S)..MXC201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),GRAY ME.,1F9

main69210-02140-B2iZRE172..(LE,S)..GEN201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),GRAY ME.,1G2

main69210-02140-B2iZRE172..(LE,S)..GEN201608-201903

GRAY ME.,1G2

main69210-02140-C0iZRE172..(LE,S)..MXC201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),BLACK MC.,209

main69210-02140-C0iZRE172..(LE,S)..MXC201404-201903

BLACK MC.,209

main69210-02140-C1iZRE172..(LE,S)..GEN201608-201903

BLACKISH AGEHA GF.,221

main69210-02140-C1iZRE172..(LE,S)..GEN201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),BLACKISH AGEHA GF.,221

main69210-02140-D0iZRE172..(LE,S)..MXC201404-201903

RED M.M.,3R3

main69210-02140-D0iZRE172..(LE,S)..MXC201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),RED M.M.,3R3

main69210-02140-E0iZRE172..(LE,S)..GEN201404-201608

AVANT-GARDE BRONZE ME.,4V8

main69210-02140-G0iZRE172..LE..GEN201404-201608

GREEN M.M.,6W3

main69210-02140-J0iZRE172..S..GEN201404-201903

DK.BLUE M.M.,8W7

main69211-02230-A0iZRE172..MXC;ZRE172..STD..GEN201308-201903

SUPER WHITE 2,040

main69211-02230-B0iZRE172..MXC;ZRE172..STD..GEN201308-201903

SILVER ME.,1F7

main69211-02230-B1iZRE172..MXC;ZRE172..STD..GEN201308-201903

GRAY ME.,1F9

main69211-02230-B3iZRE172..(LE,S)..MXC201608-201903

GRAY ME.,1G2

main69211-02230-C0iZRE172..STD..GEN;ZRE172..(LE,S)..MXC201308-201903

BLACK MC.,209

main69211-02230-C1iZRE172..MXC201608-201903

BLACKISH AGEHA GF.,221

main69211-02230-D0iZRE172..(LE,S)..MXC201308-201903

RED M.M.,3R3

main69211-02230-E0iZRE172..LE..MXC201308-201608

AVANT-GARDE BRONZE ME.,4V8

main69211-02230-G0iZRE172..LE..MXC201308-201608

GREEN M.M.,6W3

main69211-02230-J0iZRE172..S..MXC201308-201608

DK.BLUE M.M.,8W7

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-02310-A0iZRE172..(LE,S)..GEN201404-201608

SUPER WHITE 2,040

main69217-02310-A0iZRE172..(LE,S)..MXC201608

STARTING SYSTEM-PUSH(WITH/SMART),SUPER WHITE 2,040

main69217-02310-B0iZRE172..(LE,S)..GEN201404-201608

SILVER ME.,1F7

main69217-02310-B0iZRE172..(LE,S)..GEN201608

STARTING SYSTEM-PUSH(WITH/SMART),SILVER ME.,1F7

main69217-02310-B1iZRE172..(LE,S)..MXC201608

STARTING SYSTEM-PUSH(WITH/SMART),GRAY ME.,1F9

main69217-02310-B1iZRE172..(LE,S)..GEN201404-201608

GRAY ME.,1F9

main69217-02310-B2iZRE172..(LE,S)..GEN201608

GRAY ME.,1G2

main69217-02310-B2iZRE172..(LE,S)..MXC201608

STARTING SYSTEM-PUSH(WITH/SMART),GRAY ME.,1G2

main69217-02310-C0iZRE172..(LE,S)..GEN201608

STARTING SYSTEM-PUSH(WITH/SMART),BLACK MC.,209

main69217-02310-C0iZRE172..(LE,S)..GEN201404-201608

BLACK MC.,209

main69217-02310-C1iZRE172..(LE,S)..MXC201608

BLACKISH AGEHA GF.,221

main69217-02310-C1iZRE172..(LE,S)..MXC201608

STARTING SYSTEM-PUSH(WITH/SMART),BLACKISH AGEHA GF.,221

main69217-02310-D0iZRE172..(LE,S)..MXC201404-201608

RED M.M.,3R3

main69217-02310-D0iZRE172..(LE,S)..GEN201608

STARTING SYSTEM-PUSH(WITH/SMART),RED M.M.,3R3

main69217-02310-E0iZRE172..(LE,S)..GEN201404-201608

AVANT-GARDE BRONZE ME.,4V8

main69217-02310-G0iZRE172..LE..GEN201404-201608

GREEN M.M.,6W3

main69217-02310-J0iZRE172..S..GEN201404-201608

DK.BLUE M.M.,8W7

main69217-02320-A0iZRE172..MXC;ZRE172..STD..GEN201308-201608

SUPER WHITE 2,040

main69217-02320-A1iZRE172..LE..MXC201308-201408

WHITE PEARL CS.,070

main69217-02320-B0iZRE172..MXC;ZRE172..STD..GEN201308-201608

SILVER ME.,1F7

main69217-02320-B1iZRE172..MXC;ZRE172..STD..GEN201308-201608

GRAY ME.,1F9

main69217-02320-B2iZRE172..(LE,S)..MXC201608

GRAY ME.,1G2

main69217-02320-C0iZRE172..MXC;ZRE172..STD..GEN201308-201608

BLACK MC.,209

main69217-02320-C1iZRE172..MXC201608

BLACKISH AGEHA GF.,221

main69217-02320-D0iZRE172..MXC201308-201608

RED M.M.,3R3

main69217-02320-E0iZRE172..LE..MXC;ZRE172..STD..GEN;ZRE172..(4FC,6F)..S..MXC201308-201608

AVANT-GARDE BRONZE ME.,4V8

main69217-02320-G0iZRE172..LE..MXC;ZRE172..(4FC,6F)..S..MXC201308-201608

GREEN M.M.,6W3

main69217-02320-J0iZRE172..S..MXC;ZRE172..STD..GEN;ZRE172..(4FC,6F)..(LE,STD)..MXC201308-201608

DK.BLUE M.M.,8W7

69218ACOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-02060-A0iZRE172..(LE,S)..MXC201404-201608

SUPER WHITE 2,040

main69218-02060-A0iZRE172..(LE,S)..GEN201608

STARTING SYSTEM-PUSH(WITH/SMART),SUPER WHITE 2,040

main69218-02060-B0iZRE172..(LE,S)..GEN201608

STARTING SYSTEM-PUSH(WITH/SMART),SILVER ME.,1F7

main69218-02060-B0iZRE172..(LE,S)..GEN201404-201608

SILVER ME.,1F7

main69218-02060-B1iZRE172..(LE,S)..MXC201608

STARTING SYSTEM-PUSH(WITH/SMART),GRAY ME.,1F9

main69218-02060-B1iZRE172..(LE,S)..MXC201404-201608

GRAY ME.,1F9

main69218-02060-B2iZRE172..(LE,S)..MXC201608

STARTING SYSTEM-PUSH(WITH/SMART),GRAY ME.,1G2

main69218-02060-B2iZRE172..(LE,S)..MXC201608

GRAY ME.,1G2

main69218-02060-C0iZRE172..(LE,S)..GEN201404-201608

BLACK MC.,209

main69218-02060-C0iZRE172..(LE,S)..GEN201608

STARTING SYSTEM-PUSH(WITH/SMART),BLACK MC.,209

main69218-02060-C1iZRE172..(LE,S)..MXC201608

STARTING SYSTEM-PUSH(WITH/SMART),BLACKISH AGEHA GF.,221

main69218-02060-C1iZRE172..(LE,S)..GEN201608

BLACKISH AGEHA GF.,221

main69218-02060-D0iZRE172..(LE,S)..MXC201608

STARTING SYSTEM-PUSH(WITH/SMART),RED M.M.,3R3

main69218-02060-D0iZRE172..(LE,S)..GEN201404-201608

RED M.M.,3R3

main69218-02060-E0iZRE172..(LE,S)..GEN201404-201608

AVANT-GARDE BRONZE ME.,4V8

main69218-02060-G0iZRE172..LE..GEN201404-201608

GREEN M.M.,6W3

main69218-02060-J0iZRE172..S..GEN201404-201608

DK.BLUE M.M.,8W7

main69218-02070-A0iZRE172..MXC;ZRE172..STD..GEN201308-201608

SUPER WHITE 2,040

main69218-02070-B0iZRE172..MXC;ZRE172..STD..GEN201308-201608

SILVER ME.,1F7

main69218-02070-B1iZRE172..MXC;ZRE172..STD..GEN201308-201608

GRAY ME.,1F9

main69218-02070-B2iZRE172..(LE,S)..MXC201608

GRAY ME.,1G2

main69218-02070-C0iZRE172..STD..GEN;ZRE172..(LE,S)..MXC201308-201608

BLACK MC.,209

main69218-02070-C1iZRE172..MXC201608

BLACKISH AGEHA GF.,221

main69218-02070-D0iZRE172..MXC201308-201608

RED M.M.,3R3

main69218-02070-E0iZRE172..LE..MXC201308-201608

AVANT-GARDE BRONZE ME.,4V8

main69218-02070-G0iZRE172..LE..MXC201308-201608

GREEN M.M.,6W3

main69218-02070-J0iZRE172..S..MXC201308-201608

DK.BLUE M.M.,8W7

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69212-02080-A0iZRE172..MXC;ZRE172..STD..GEN201308-201903

SUPER WHITE 2,040

main69212-02080-B0iZRE172..MXC;ZRE172..STD..GEN201308-201903

SILVER ME.,1F7

main69212-02080-B1iZRE172..MXC;ZRE172..STD..GEN201308-201903

GRAY ME.,1F9

main69212-02080-B3iZRE172..(LE,S)..MXC201608-201903

GRAY ME.,1G2

main69212-02080-C0iZRE172..STD..GEN;ZRE172..(LE,S)..MXC201308-201903

BLACK MC.,209

main69212-02080-C1iZRE172..MXC201608-201903

BLACKISH AGEHA GF.,221

main69212-02080-D0iZRE172..(LE,S)..MXC201308-201903

RED M.M.,3R3

main69212-02080-E0iZRE172..LE..MXC201308-201608

AVANT-GARDE BRONZE ME.,4V8

main69212-02080-G0iZRE172..LE..MXC201308-201608

GREEN M.M.,6W3

main69212-02080-J0iZRE172..S..MXC201308-201608

DK.BLUE M.M.,8W7

main69220-02070-A0iZRE172..(LE,S)..GEN201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),SUPER WHITE 2,040

main69220-02070-A0iZRE172..(LE,S)..GEN201404-201903

SUPER WHITE 2,040

main69220-02070-B0iZRE172..(LE,S)..GEN201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),SILVER ME.,1F7

main69220-02070-B0iZRE172..(LE,S)..MXC201404-201903

SILVER ME.,1F7

main69220-02070-B1iZRE172..(LE,S)..MXC201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),GRAY ME.,1F9

main69220-02070-B1iZRE172..(LE,S)..GEN201404-201903

GRAY ME.,1F9

main69220-02070-B2iZRE172..(LE,S)..MXC201608-201903

GRAY ME.,1G2

main69220-02070-B2iZRE172..(LE,S)..MXC201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),GRAY ME.,1G2

main69220-02070-C0iZRE172..(LE,S)..GEN201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),BLACK MC.,209

main69220-02070-C0iZRE172..(LE,S)..MXC201404-201903

BLACK MC.,209

main69220-02070-C1iZRE172..(LE,S)..MXC201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),BLACKISH AGEHA GF.,221

main69220-02070-C1iZRE172..(LE,S)..GEN201608-201903

BLACKISH AGEHA GF.,221

main69220-02070-D0iZRE172..(LE,S)..GEN201404-201903

RED M.M.,3R3

main69220-02070-D0iZRE172..(LE,S)..MXC201608-201903

STARTING SYSTEM-PUSH(WITH/SMART),RED M.M.,3R3

main69220-02070-E0iZRE172..(LE,S)..GEN201404-201608

AVANT-GARDE BRONZE ME.,4V8

main69220-02070-G0iZRE172..LE..GEN201404-201608

GREEN M.M.,6W3

main69220-02070-J0iZRE172..S..GEN201404-201903

DK.BLUE M.M.,8W7

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02120iZRE172201308-201608

RH

main69242-02110iZRE172201308-201608

LH

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-02130iZRE172201308-201608

RH

main69242-02120iZRE172201308-201608

LH

69283FPLUG, FRONT DOOR INSIDE HANDLE BEZEL

main69283-02060-A0iZRE172..LE;ZRE172..STD..GEN201308-201608

IVORY,TRIM0#

main69283-02060-A1iZRE172..LE201608-201903

FLAXEN,TRIM0#

main69283-02060-B0iZRE172..STD..GEN201404-201608

GRAY,TRIM16

main69283-02060-B0iZRE172..LE201308-201903

GRAY,TRIM1#

main69283-02060-C0iZRE172..LE..GEN201404-201608

BLACK,TRIM4#

main69283-02060-C0iZRE172..LE201608-201903

BLACK,TRIM2#

main69283-02060-C0iZRE172..LE201308-201903

BLACK,TRIM2#,4#,8#

main69283-02060-C0iZRE172..LE201308-201903

BLACK,TRIM1#

main69283-02060-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM2#,4#

main69283-02060-C0iZRE172..STD..GEN201404-201608

BLACK,TRIM11,4#

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iZRE172..(LE,S)..GEN201404-201608

main69293-12030iZRE172..(LE,S)..GEN201608

STARTING SYSTEM-PUSH(WITH/SMART)

main69293-33010iZRE172..MXC;ZRE172..STD..GEN201308-201608

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iZRE172..(LE,S)..MXC201608

STARTING SYSTEM-PUSH(WITH/SMART)

main69293-12040iZRE172..(LE,S)..GEN201404-201608

main69293-33020iZRE172..MXC;ZRE172..STD..GEN201308-201608

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-02260iZRE172..4FC201308-201608

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-02260iZRE172..4FC201308-201608

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010iZRE172201308-201608

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-0T010iZRE172201308-201608

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02030iZRE172..4FC201308-201608

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-02230iZRE172..4FC201308-201608

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-02230iZRE172..4FC201308-201608

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-02260iZRE172..4FC201308-201608

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-02260iZRE172201308-201608

692370T010RETAINER, DOOR OUTSIDE HANDLE

main69237-0T010

6929602020SCREW, DOOR INSIDE HANDLE

main69296-02020

6929606070SCREW, DOOR INSIDE HANDLE

main69296-06070

692960T010SCREW, DOOR INSIDE HANDLE

main69296-0T010

9008016097

main90080-16097

9014850003

main90148-50003

90148A0017

main90148-A0017

90148A0022

main90148-A0022

9018905003

main90189-05003

36 parts on this diagram · 1 diagram in section
