1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-A0140×7i201308-201408

*10-1.25PX45-30

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230i201308-201408

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018i201308-201408

34365ARETAINER, OUTER RACE

main34365-52012i201308-201408

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-02050i201308-201408

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52020i201308-201408

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08365×11i201308-201408

*8-1.25PX28-20

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001×4i201308-201408

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×4i201308-201408

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-14007i201308-201408

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-02120i201308-201408

35103CRING, O

main90301-10018×4i201308-201408

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149i201308-201408

NO.1

main90930-03166i201308-201408

NO.2

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-20132i201308-201408

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×5i201308-201408

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×5i201308-201408

35104VHOSE (FOR BREATHER PLUG)

main35121-12070i201308-201408

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×2i201308-201408

35104XRING, O (FOR BREATHER PLUG)

main90301-06021i201308-201408

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016i201308-201408

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008i201308-201408

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-52020i201308-201408

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×19i201308-201408

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08071×14i201308-201408

*8-1.25PX30-25

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35145CGASKET, TRANSAXLE CASE

main35145-21010i201308-201408

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010i201308-201408

35159GASKET, BRAKE DRUM

main35159-21010i201308-201408

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52030i201308-201408

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-52020i201308-201408

35179GASKET, OVERDRIVE BRAKE

main90301-06024×2i201308-201408

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173i201308-201408

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2i201308-201408

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-41010i201308-201408

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

90119A0074

main90119-A0074

90119A0183

main90119-A0183

9046400952

main90464-00952

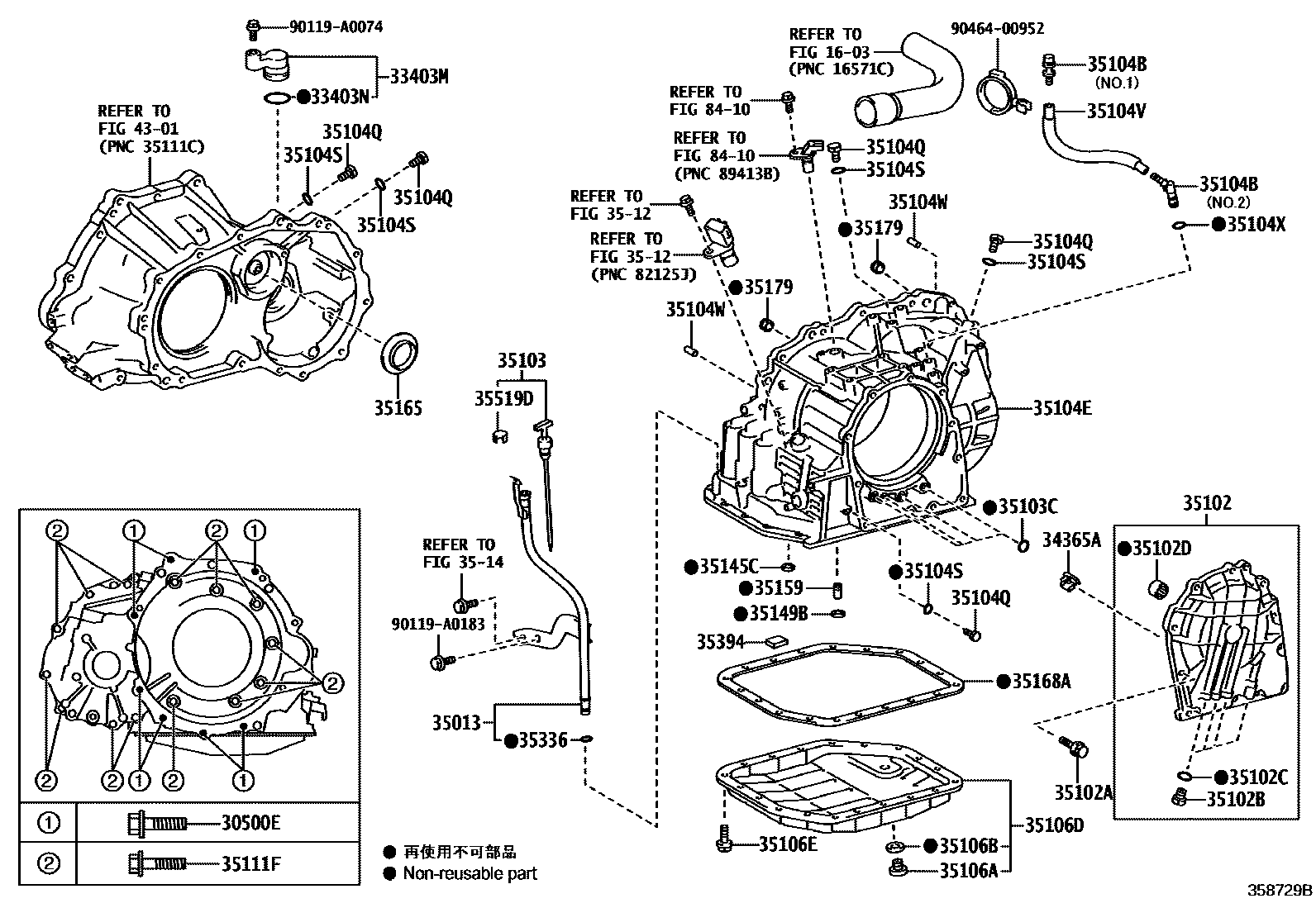

TRANSMISSION CASE & OIL PAN (ATM)
