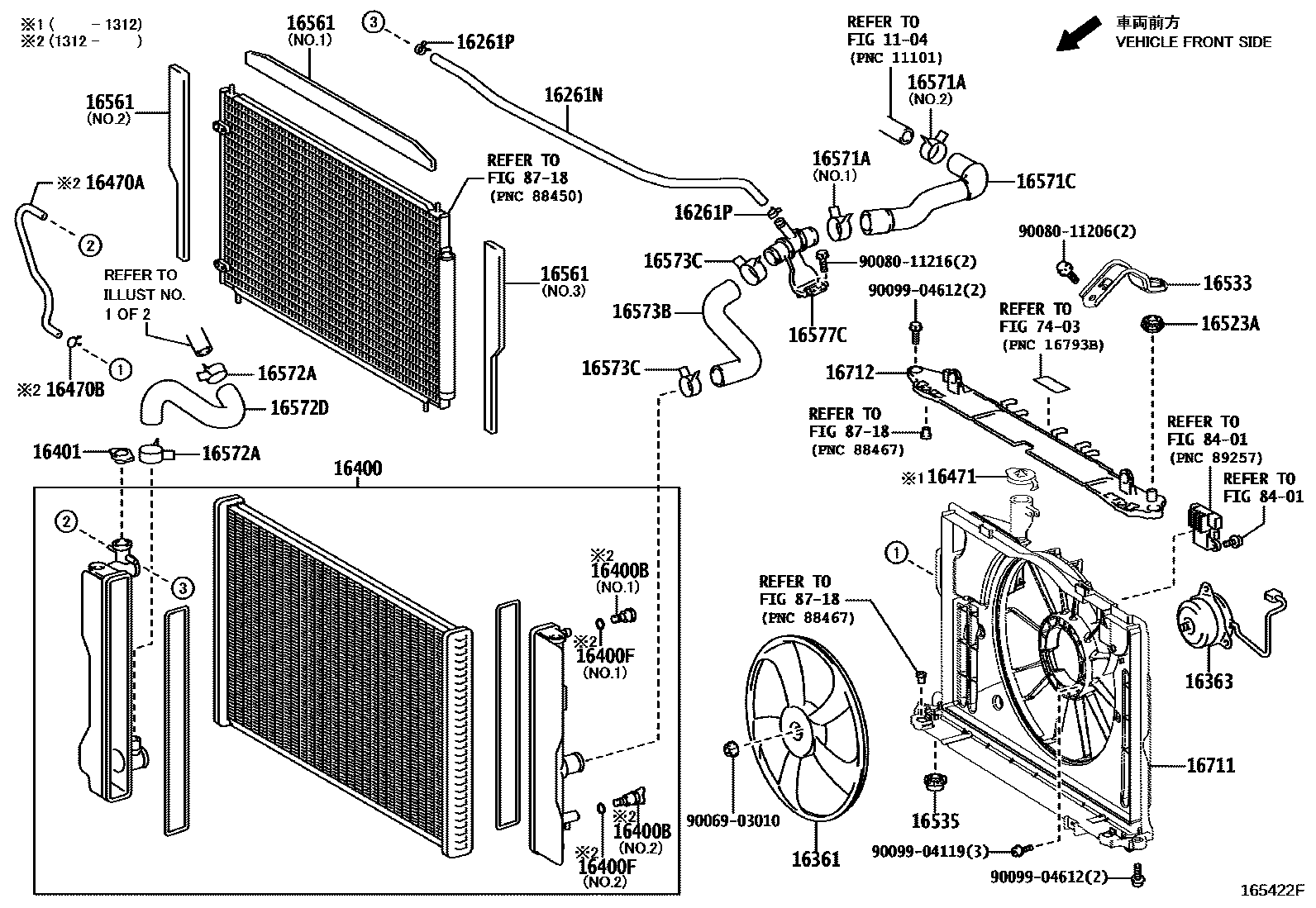

RADIATOR & WATER OUTLET
1104
16261HOSE, WATER BY-PASS
(L)
(J)
16261NHOSE, WATER BY-PASS, NO.2
16261PCLIP(FOR WATER BY-PASS HOSE NO.2)
16363MOTOR, COOLING FAN
sub16363-0T100
16400BPLUG, RADIATOR DRAIN COCK
NO.1
16400FPACKING(FOR RADIATOR DRAIN COCK)
NO.1
NO.2
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
NO.1
NO.2
NO.3
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
(L),NO.2
NO.2
NO.1
(J),NO.2
16571CHOSE, RADIATOR, NO.1
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572DHOSE, RADIATOR, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
(L)
(J)
16712SHROUD, FAN, NO.2
7403
8401
8718
9006903010
main90069-03010
9008011206
main90080-11206
9008011216
main90080-11216
9009904119
main90099-04119
9009904612
main90099-04612
34 parts on this diagram · 4 diagrams in section
