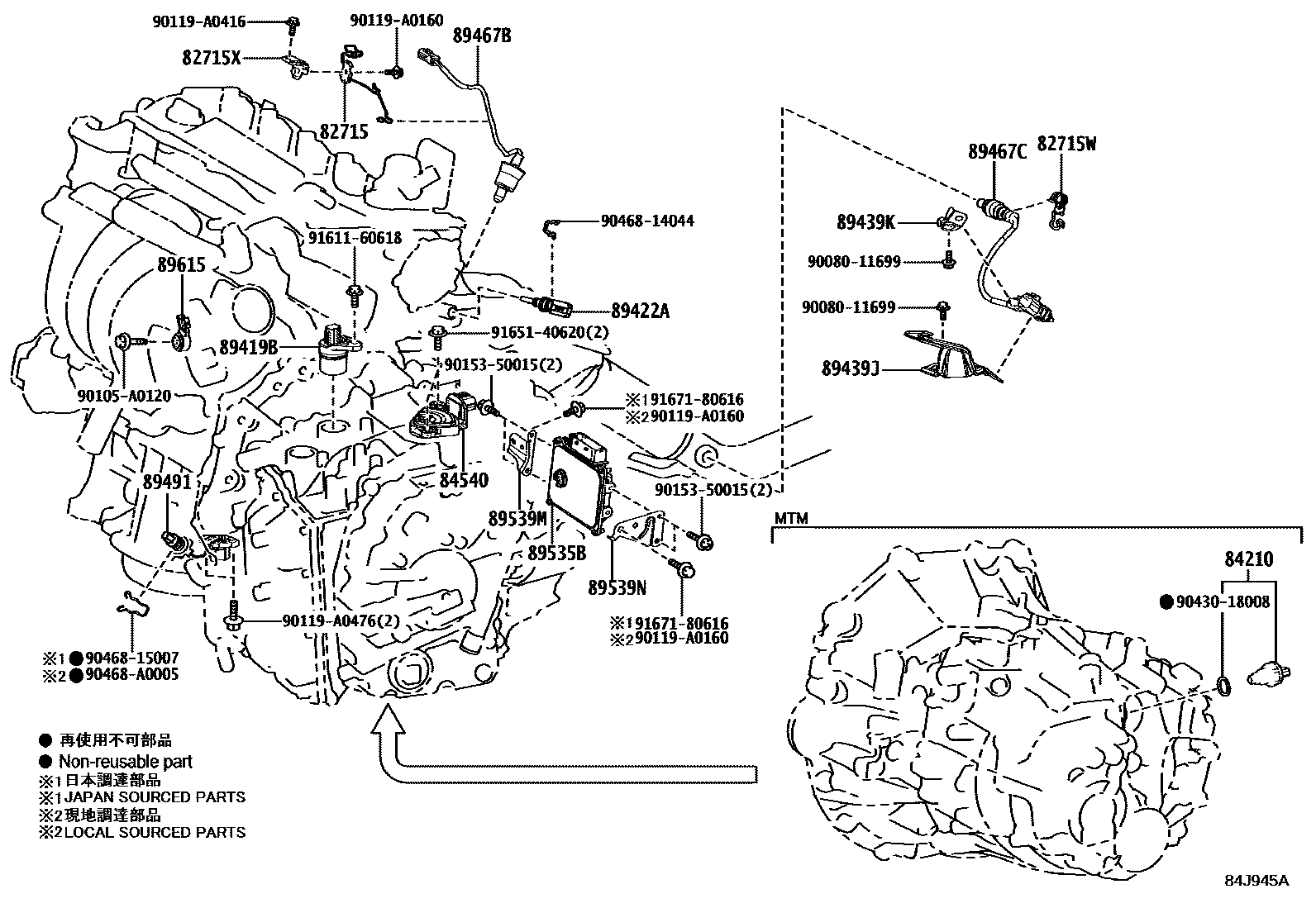

82715BRACKET,WIRING HARNESS CLAMP

main82715-10410iZRE212201903-202211

main82715-12V90iMZEA12..6F201903-202410

82715WBRACKET, WIRING HARNESS CLAMP

main82729-20040iMZEA1#201903-202410

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-0Z390iMZEA12..CVT201903-202410

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iMZEA12,ZRE212..6F201903-202211

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMZEA1#201903-202410

main84540-52070iZRE212..CVT201903-202211

main89451-42010iMZEA1#202410

89419BSENSOR, SHIFT STROKE

main89419-12010iMZEA12..CVT201903-201904

sub89419-12011

main89419-12011iMZEA12202106-202203

MARK=CS1

main89419-12011iMZEA12201905-202410

main89419-K2010iMZEA1#202106-202410

MARK=HK-82

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZEA1#201903-202410

89439JBRACKET, SENSOR, NO.2

main82715-02V70iMZEA1#201903-202410

89439KBRACKET, SENSOR, NO.3

main82715-02V80iMZEA1#201903-202410

89467BSENSOR, AIR FUEL RATIO

main89467-02090iZRE212201903-202211

main89467-02130iMZEA1#201903-202410

main89467-0A010iMZEA1#202410

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-02140iMZEA12201903-202410

main89467-02360iMZEA1#202410

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iMZEA12201903-202204

sub89491-33052

main89491-33052iMZEA12202205-202410

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-12130iMZEA12..CVT201903-202007

main89535-12210iMZEA12..CVT202007-202107

main89535-12340iMZEA12202211-202410

*614

main89535-12350iMZEA18202211-202410

*614

main89535-12370iMZEA12202107-202211

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-12070iMZEA12..CVT201903-202410

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-12080iMZEA12..CVT201903-202410

89615SENSOR, KNOCK CONTROL

main89615-06010iMZEA1#202007-202410

main89615-06010iMZEA12201903-202211

(L)

main89615-06010iMZEA12202209-202211

MARK 89615-06010

main89615-20090iZRE212201903-202211

(J)

main89615-F6010iMZEA12202209-202211

MARK 89615-F6010

9008011699

main90080-11699

90105A0120

main90105-A0120

90119A0160

main90119-A0160

90119A0416

main90119-A0416

90119A0476

main90119-A0476

9015350015

main90153-50015

9043018008

main90430-18008

9046814044

main90468-14044

9046815007

main90468-15007

90468A0005

main90468-A0005

9161160618

main91611-60618

9165140620

main91651-40620

9167180616

main91671-80616

29 parts on this diagram · 15 diagrams in section
