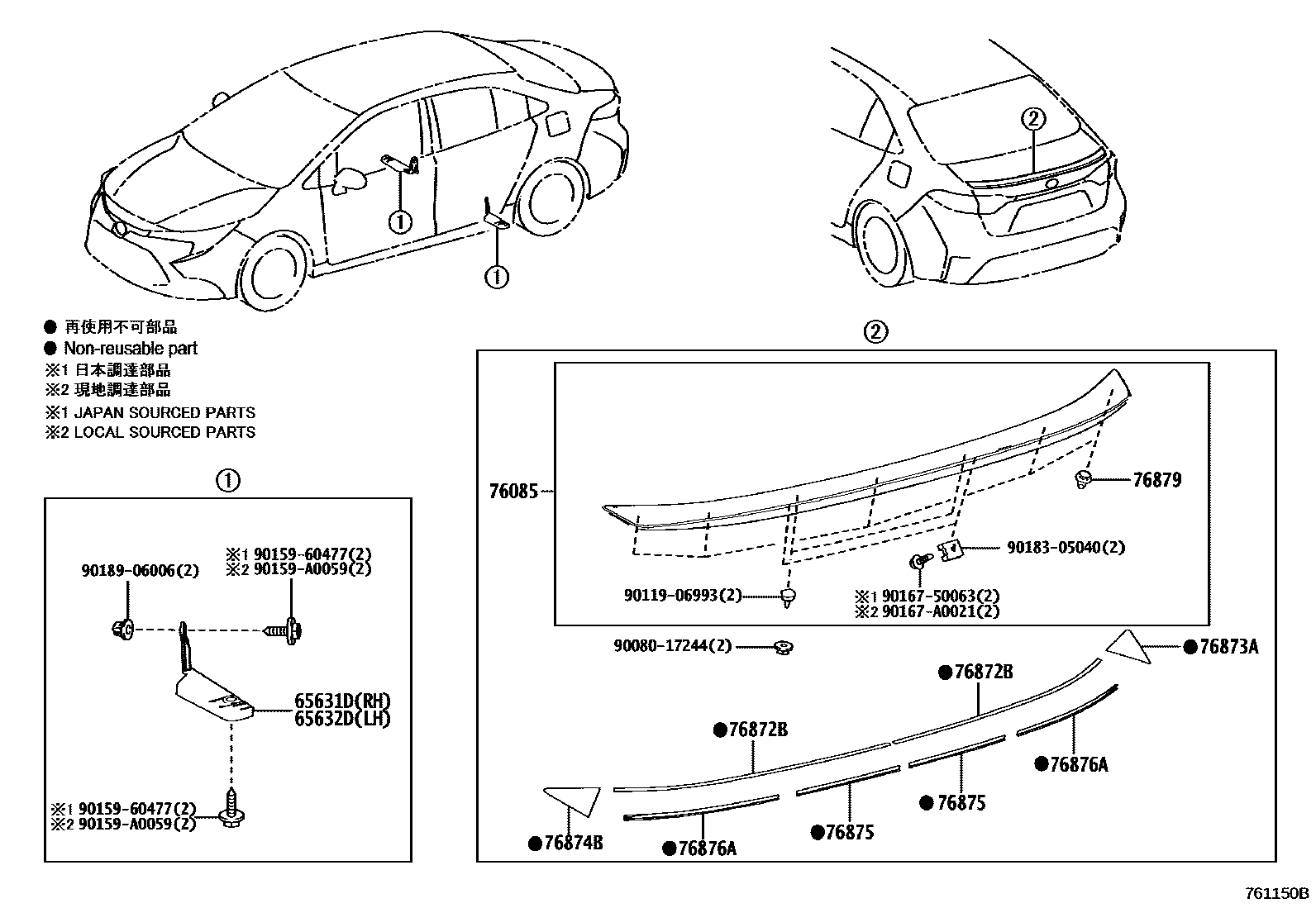

MUDGUARD & SPOILER

0001 1 0002 1 0003 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-02210iMZEA12202410

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-02210iMZEA12202410

76085SPOILER SUB-ASSY, REAR

main76085-02904iMZEA12202410

PAINT REQ.

76872BPROTECTOR, REAR SPOILER, CENTER

main76872-02060iMZEA12202410

76873APROTECTOR, REAR SPOILER, RH

main76873-02070iMZEA12202410

76874BPROTECTOR, REAR SPOILER, LH

main76874-02080iMZEA12202410

76875PROTECTOR, REAR SPOILER, NO.4

main76875-02050×5iMZEA12202410

76876APROTECTOR, REAR SPOILER, NO.10

main76876-02040×2iMZEA12201903-202002

76879CLIP, REAR SPOILER, NO.1

main90467-09206×5iMZEA12202410

9008017244

main90080-17244

9011906993

main90119-06993

9015960477

main90159-60477

90159A0059

main90159-A0059

9016750063

main90167-50063

90167A0021

main90167-A0021

9018305040

main90183-05040

9018906006

main90189-06006

17 parts on this diagram · 3 diagrams in section
