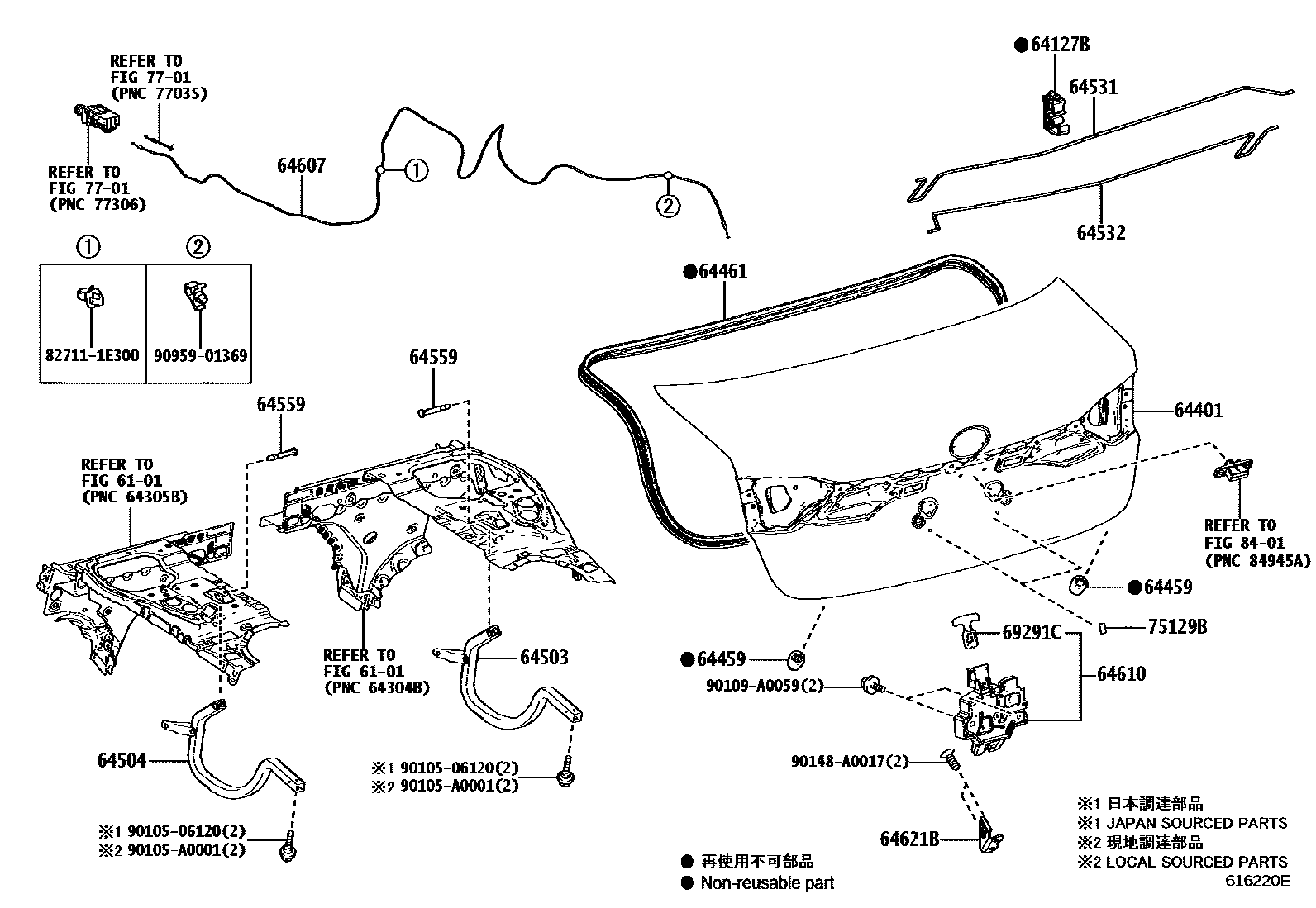

LUGGAGE COMPARTMENT DOOR & LOCK

6101SIDE MEMBER

→ Go to FIG 61-01

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-06052i201903-202007

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-02E80i202211-202410

main64401-02E70i201903-202007

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main64401-02F00supersedes 64401-02J00i201903-202007

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main64401-02J00supersedes 64401-02J10i202007-202106

BACK MONITOR-CAMERA & WIRE HARNESS

main64401-02J20supersedes 64401-02J30i202007-202211

BACK MONITOR-CAMERA & WIRE HARNESS

main64401-02K70supersedes 64401-02J10i202007-202106

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069×2i202410

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-02290i202410

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-02220i202410

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-02220i202410

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-02530i202410

main64531-02540i202007-202211

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-02530i202007-202211

main64532-02540i202007-202106

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2i202410

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02500i202007-202106

main64607-02501i202501

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-06041i201903-202007

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06030i202007-202106

69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE

main69291-33020i202410

75129BCUSHION, REAR LICENCE PLATE

main75129-30010×2i202007-202106

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9010506120

main90105-06120

90105A0001

main90105-A0001

90109A0059

main90109-A0059

90148A0017

main90148-A0017

9095901369

main90959-01369

23 parts on this diagram · 1 diagram in section
