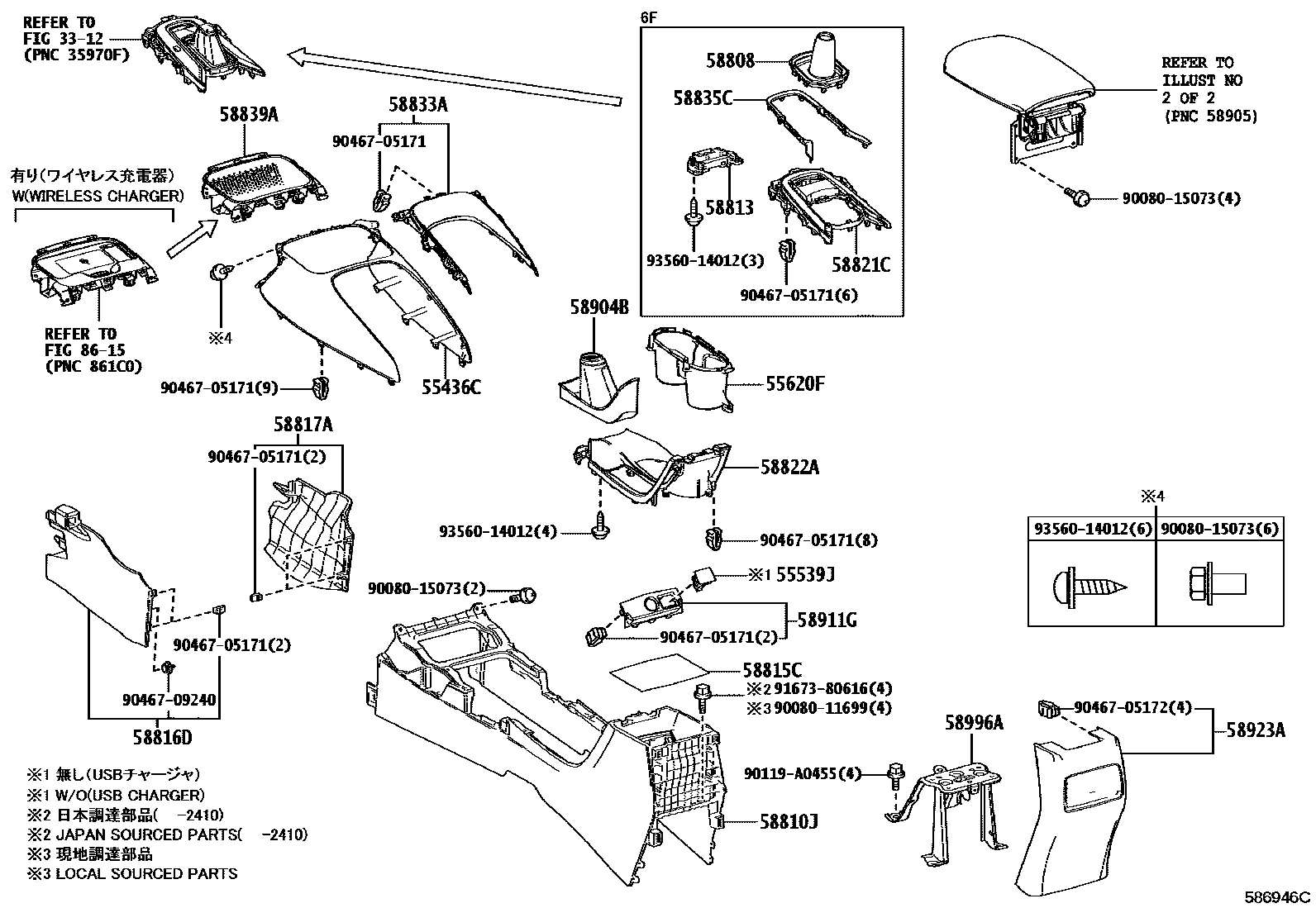

CONSOLE BOX & BRACKET
3312
55436CPANEL, INSTRUMENT PANEL FINISH, END LH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
55539JCOVER, SPARE SWITCH HOLE
BLACK,TRIM1#,2#
55620FHOLDER ASSY, CONSOLE BOX CUP
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#
BLACK,TRIM1#,2#
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
58813BOX, CONSOLE, UPPER
58815CCARPET, CONSOLE BOX
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
58821CPANEL, CONSOLE, UPPER
58822APANEL, CONSOLE, UPPER REAR
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER(SPORT)
58833ACOVER, CONSOLE, UPPER
FROMAGE,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
COOL GRAY,TRIM1#,22,23
SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK, BLACK,TRIM2#
BLACK, BLACK,TRIM20,21
SEAT COVER MATERIAL-SPORT LEATHER,BLACK, BLACK,TRIM2#
BLACK,TRIM2#
58835CORNAMENT, CONSOLE BOX
SILVER,TRIM2#
SILVER,TRIM1#,2#
58839ACOVER, CONSOLE BOX HOLE
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
58911GPANEL, BOX, NO.1
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
58923APANEL, CONSOLE REAR END
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
ACCESSORY SOCKET-CONSOLE BOX:1 & END PANEL:2,BLACK,TRIM0#,1#,2#
ACCESSORY SOCKET-CONSOLE BOX1 & END PANEL2(UPPER SIDE),BLACK,TRIM0#,1#,2#
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8615
9008011699
main90080-11699
9008015073
main90080-15073
90119A0455
main90119-A0455
9046705171
main90467-05171
9046705172
main90467-05172
9046709240
main90467-09240
9167380616
main91673-80616
9356014012
main93560-14012
28 parts on this diagram · 2 diagrams in section
