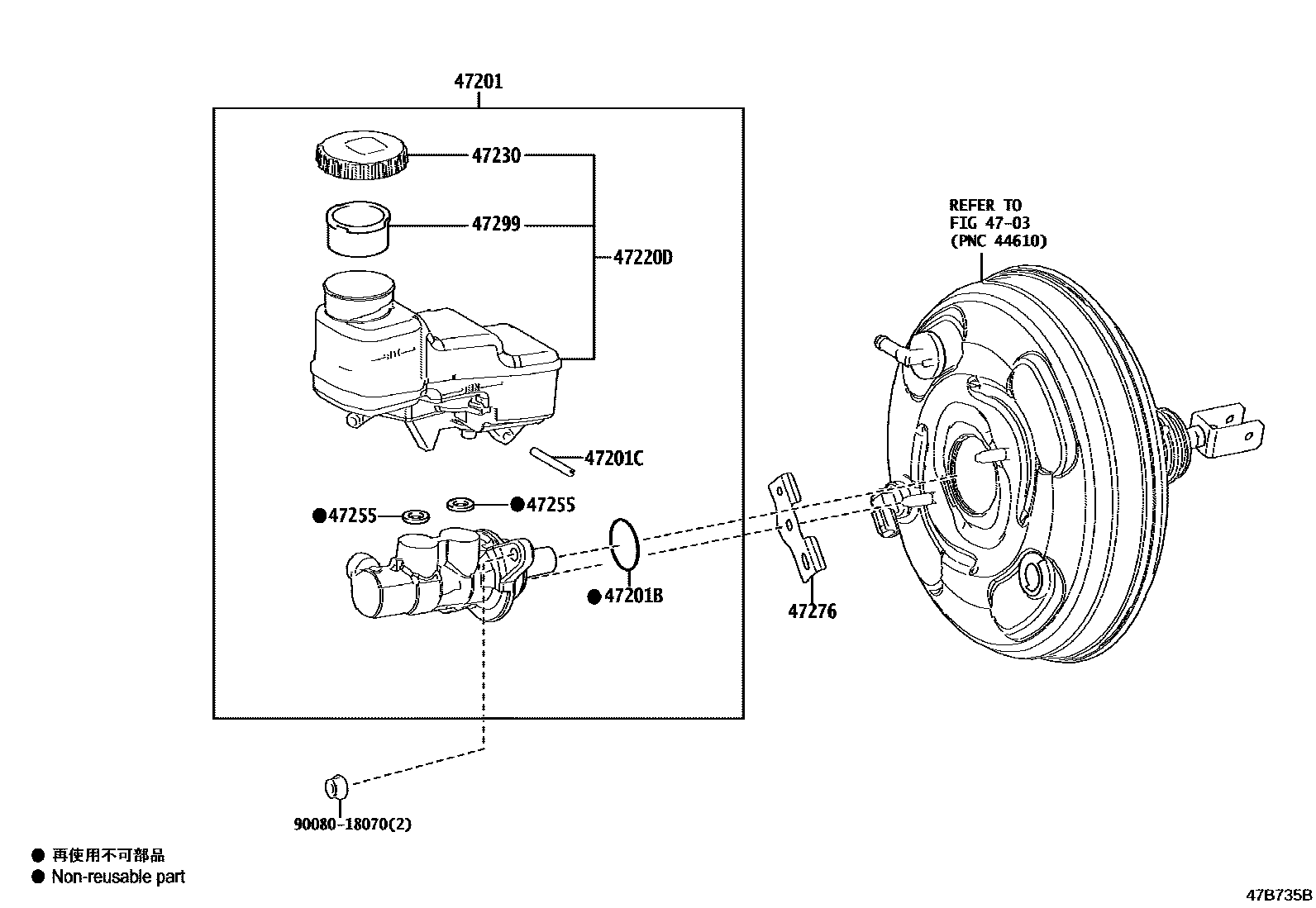

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02860iMZEA12,ZRE212..CVT201903-202007

main47201-02870iMZEA12,ZRE212..6F201903-202007

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZRE212;MZEA12..CVT202007-202211

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMZEA1#202410

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-02310iMZEA1#202410

main47220-02330iZRE212..6F202007-202211

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iMZEA1#202410

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iMZEA1#202410

47276BRACKET, BRAKE MASTER CYLINDER

main47276-12050iMZEA1#202410

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMZEA1#202410

9008018070

main90080-18070

10 parts on this diagram · 1 diagram in section
