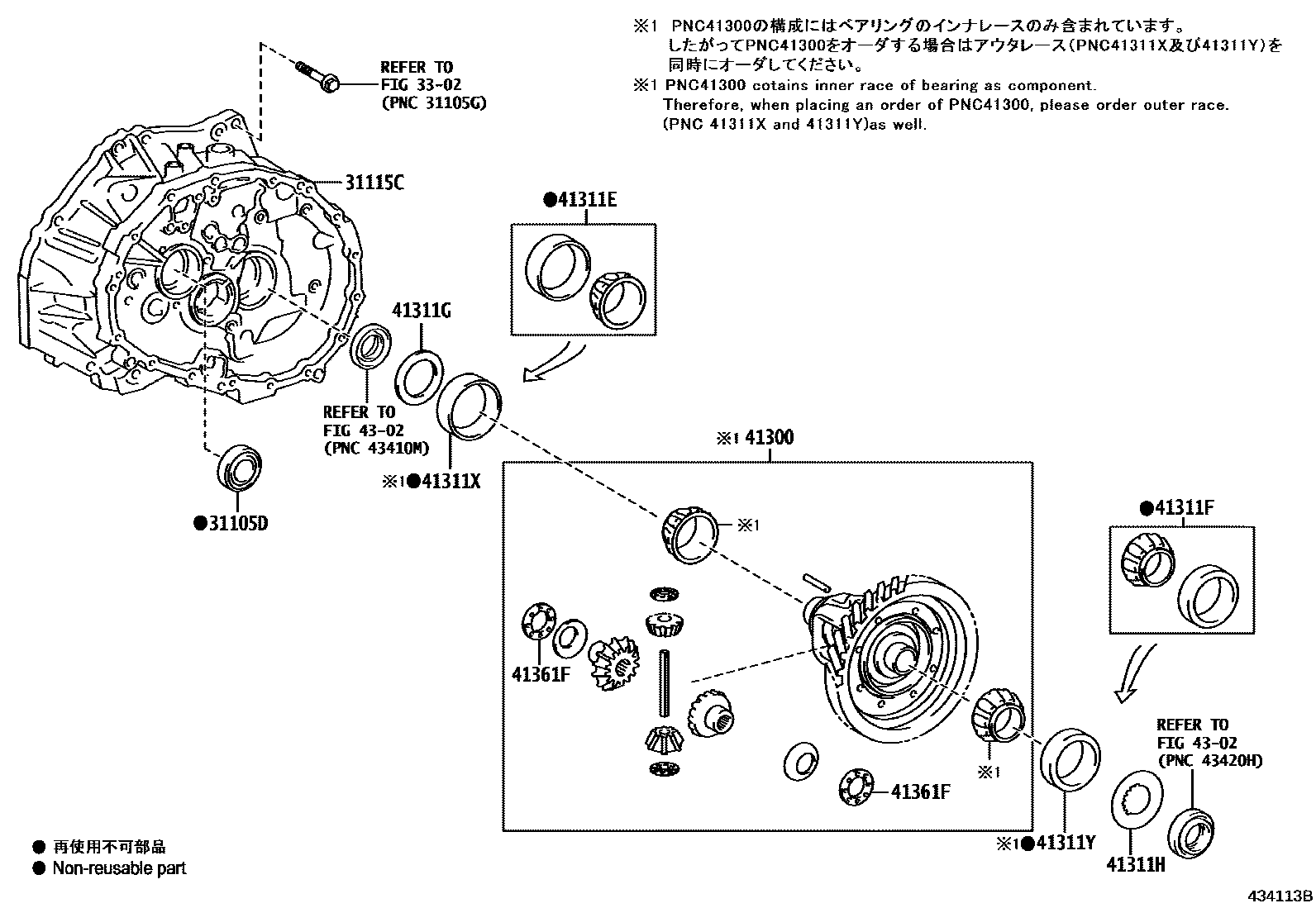

FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)
41300CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.1
T=1.59, MARK A
T=1.62, MARK B
T=1.65, MARK C
T=1.68, MARK D
T=1.71, MARK E
T=1.74, MARK F
T=1.77, MARK G
T=1.80, MARK H
T=1.83, MARK J
T=1.86, MARK K
T=1.89, MARK L
T=1.92, MARK M
T=1.95, MARK N
T=1.98, MARK P
T=2.01, MARK Q
T=2.04, MARK R
T=2.07, MARK S
T=2.10, MARK T
T=2.13, MARK U
T=2.16, MARK V
T=2.19, MARK W
T=2.22, MARK X
T=2.25, MARK Y
T=1.73,MARK A
T=1.76,MARK B
T=1.79,MARK C
T=1.82,MARK D
T=1.85,MARK E
T=1.88,MARK F
T=1.91,MARK G
T=1.94,MARK H
T=1.97,MARK J
T=2.00,MARK K
T=2.03,MARK L
T=2.06,MARK M
T=2.09,MARK N
T=2.12,MARK P
T=2.15,MARK Q
T=2.18,MARK S
T=2.21,MARK T
T=2.24,MARK U
T=2.27,MARK V
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.100, MARK 10
T=2.125, MARK 11
T=2.150, MARK 12
T=2.175, MARK 13
T=2.200, MARK 14
T=2.225, MARK 15
T=2.250, MARK 16
T=2.275, MARK 17
T=2.300, MARK 18
T=2.325, MARK 19
T=2.350, MARK 20
T=2.375, MARK 21
T=2.400, MARK 22
T=2.425, MARK 23
T=2.450, MARK 24
T=2.475, MARK 25
T=2.500, MARK 26
T=2.525, MARK 27
T=2.550, MARK 28
T=2.575, MARK 29
T=2.600, MARK 30
T=2.625, MARK 31
T=2.650, MARK 32
T=2.675, MARK 33
T=2.700, MARK 34
T=2.725, MARK 35
T=2.750, MARK 36
T=2.775, MARK 37
T=2.800, MARK 38
T=2.825, MARK 39
T=2.850, MARK 40
41311XOUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRONT)
41311YOUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR)
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
T=0.90,MARK 19
4302FRONT DRIVE SHAFT
13 parts on this diagram · 4 diagrams in section
