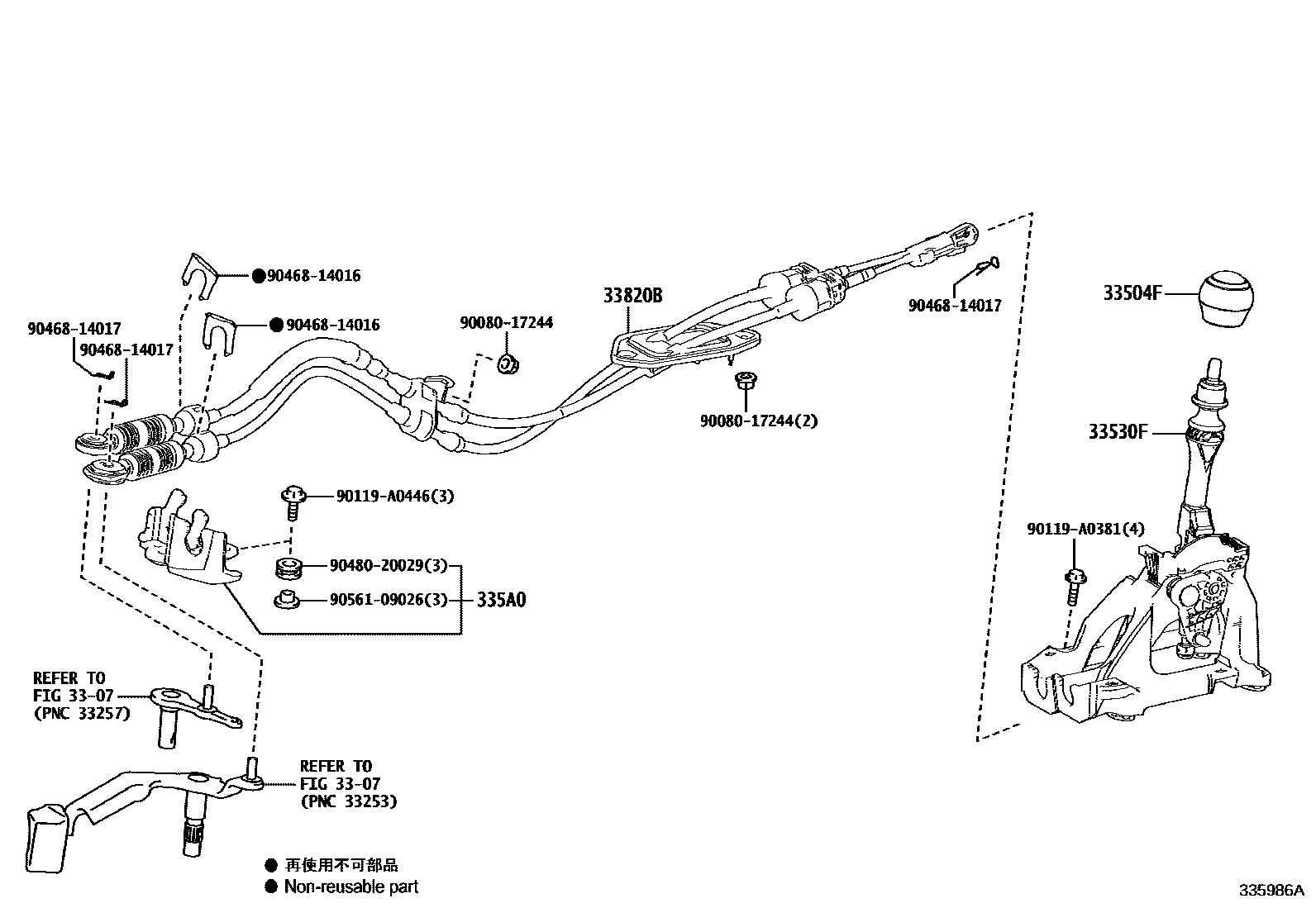

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02700-C0iMZEA12; MZEA18..L202410

BLACK,TRIM0#,1#,2#; BLACK,TRIM2#

main33504-02720-C0iMZEA18..D202410

BLACK,TRIM1#,2#

main33504-02850-C0supersedes 33504-02700-C0iMZEA12..CVT; ZRE212..L201903-202002

BLACK,TRIM2#; STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM0#,1#,2#

main33504-12750-C0iMZEA12..6F201903-202002

BLACK,TRIM1#,2#

main33504-12760-C0iZRE212..6F201903-202007

BLACK,TRIM1#,2#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12C50iMZEA12,ZRE212..6F201903-202007

335A0BRACKET ASSY, CONTROL CABLE

main335A0-02010iMZEA12..6F201903-201910

main335A0-12040iMZEA12..6F202105-202106

main335A0-20010iZRE212..6F202007-202211

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-02830iMZEA12..6F201903-202007

main33820-02A00iZRE212..6F202007-202211

main33820-02A10iMZEA1#202211-202410

main33820-02A50iZRE212..CVT202007-202211

9008017244

main90080-17244

90119A0381

main90119-A0381

90119A0446

main90119-A0446

9046814016

main90468-14016

9046814017

main90468-14017

9048020029

main90480-20029

9056109026

main90561-09026

12 parts on this diagram · 4 diagrams in section
