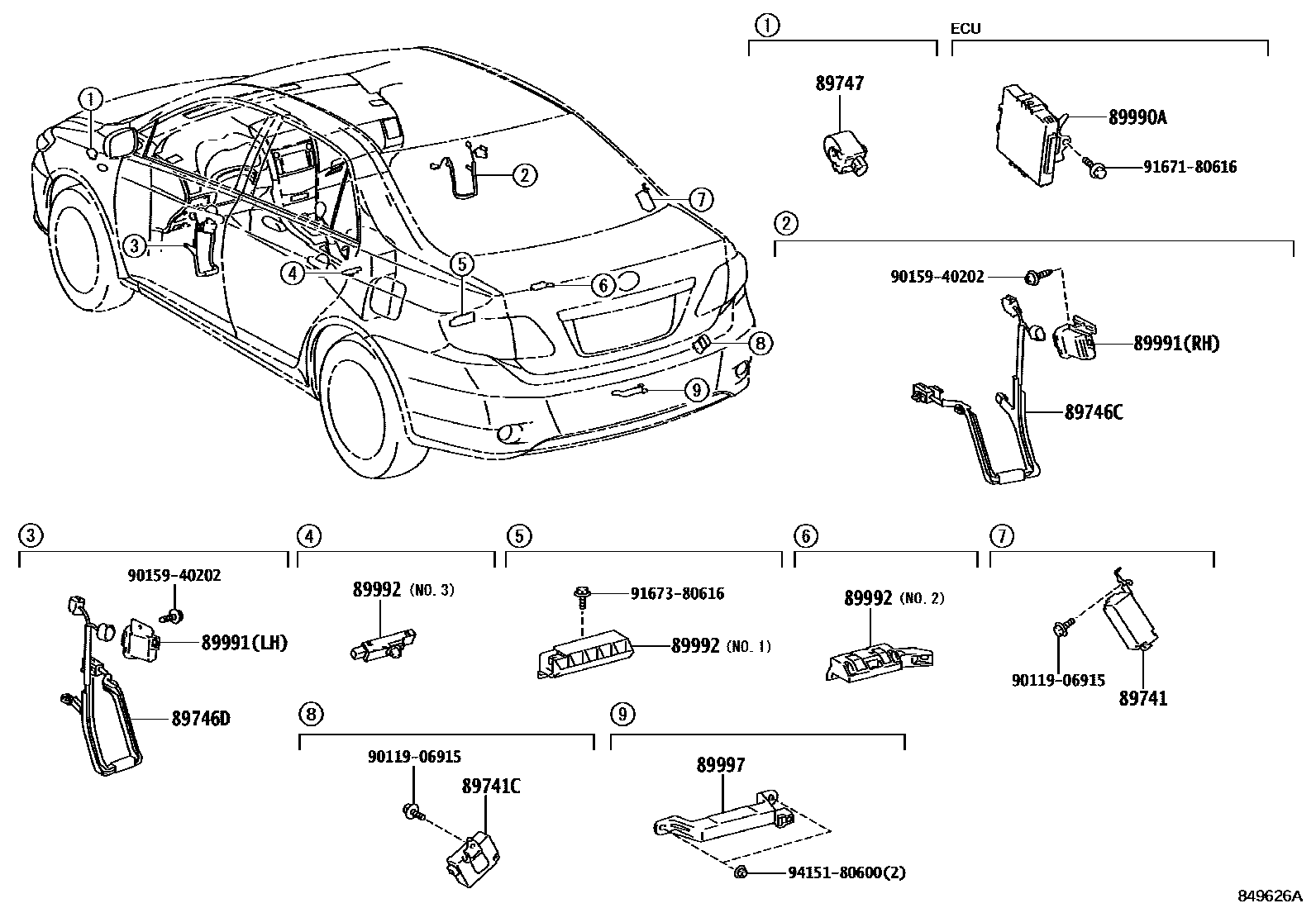

WIRELESS DOOR LOCK
89741RECEIVER, DOOR CONTROL
STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGERKEY CYLINDER)&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
KOREA SPEC
89741CRECEIVER, DOOR CONTROL, NO.3
STARTING SYSTEM-PUSH BUTTON
89746CHARNESS, ELECTRICAL KEY WIRE, NO.1
STARTING SYSTEM-PUSH BUTTON
89746DHARNESS, ELECTRICAL KEY WIRE, NO.2
STARTING SYSTEM-PUSH BUTTON
89747BUZZER, WIRELESS DOOR LOCK
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGERKEY CYLINDER)&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
89990ACOMPUTER ASSY, SMART KEY
STARTING SYSTEM-PUSH BUTTON
89991OSCILLATOR, DOOR ELECTRICAL KEY
STARTING SYSTEM-PUSH BUTTON,RH
STARTING SYSTEM-PUSH BUTTON,LH
89992OSCILLATOR, INDOOR ELECTRICAL KEY
STARTING SYSTEM-PUSH BUTTON,NO.1
STARTING SYSTEM-PUSH BUTTON,NO.2
STARTING SYSTEM-PUSH BUTTON,NO.3
89997ANTENNA, ELECTRICAL KEY
STARTING SYSTEM-PUSH BUTTON
9011906915
main90119-06915
9015940202
main90159-40202
9167180616
main91671-80616
9167380616
main91673-80616
9415180600
main94151-80600
14 parts on this diagram · 2 diagrams in section
