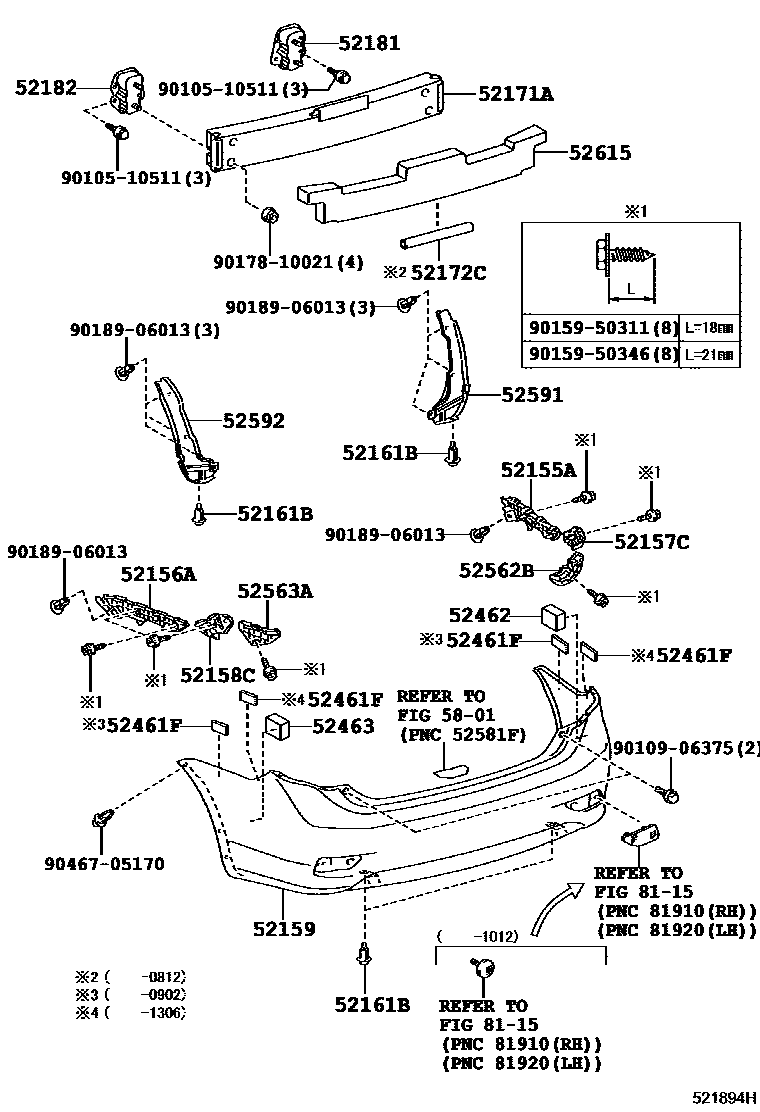

Toyota COROLLA JPP151 — REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52161BPIECE, REAR BUMPER
52171AREINFORCEMENT, REAR BUMPER, NO.1
52172CREINFORCEMENT, REAR BUMPER BAR, CENTER
52181ARM, REAR BUMPER, RH
52182ARM, REAR BUMPER, LH
52461FPAD, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
5801FLOOR PAN & LOWER BACK PANEL
8115REFLEX REFLECTOR
9010510511
9010906375
9015950311
9015950346
9017810021
9018906013
9046705170
27 parts on this diagram · 1 diagram in section
REAR BUMPER & BUMPER STAY for Toyota COROLLA JPP151
This section contains 27 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota COROLLA JPP151. Key components include: SUPPORT, REAR BUMPER SIDE, RH, SUPPORT, REAR BUMPER SIDE, LH, SUPPORT, REAR BUMPER SIDE, NO.2 RH, SUPPORT, REAR BUMPER SIDE, NO.2 LH, COVER, REAR BUMPER.
