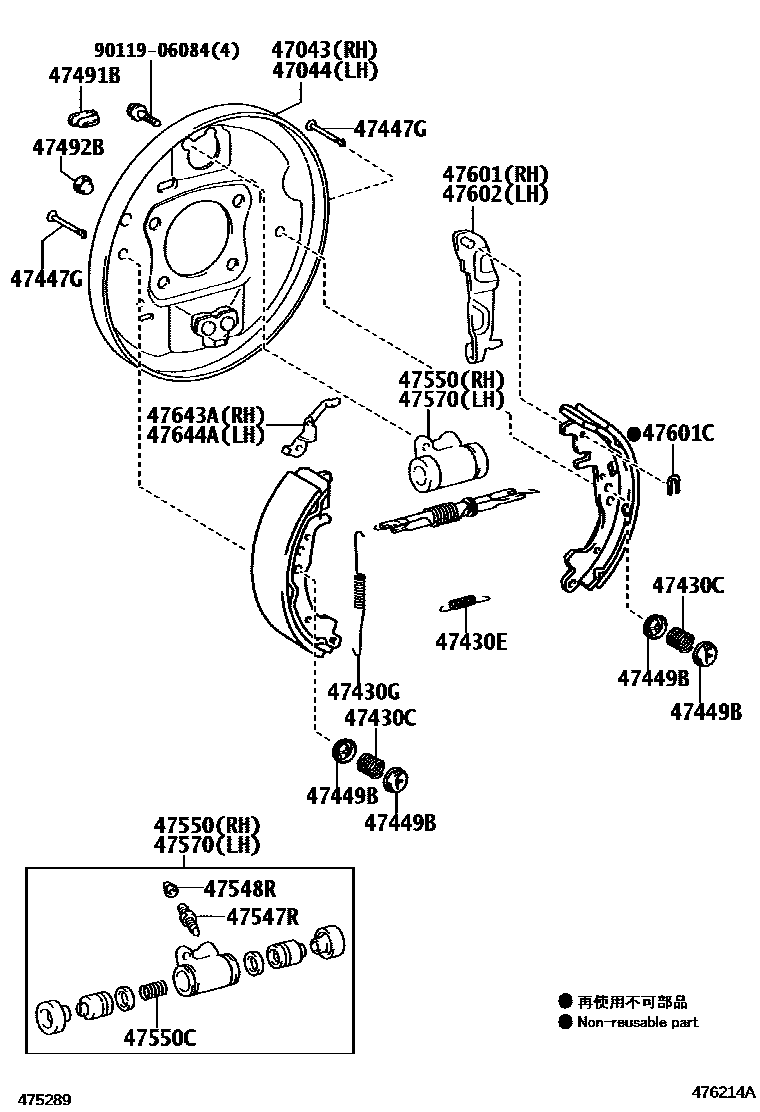

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12490iZRE142..JPP200712-201012

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12490iZRE142..JPP200712-201012

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20756×4iZRE142..JPP200712-201012

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18076×2iZRE142..JPP200712-201012

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-18087×2iZRE142..JPP200712-201012

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iZRE142..JPP201012-201308

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iZRE142..JPP200712-201012

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iZRE142..JPP200712-201012

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iZRE142..JPP200712-201012

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27030×2iZRE142..JPP200712-201012

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iZRE142..JPP200712-201012

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12120iZRE142..JPP200712-201012

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079×2iZRE142..JPP200712-201012

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-12120iZRE142..JPP200712-201012

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-12480iZRE142..JPP200712-201012

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×2iZRE142..JPP200712-201012

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-12480iZRE142..JPP200712-201012

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-52120iZRE142..JPP200712-201012

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-52120iZRE142..JPP200712-201012

9011906084

main90119-06084

20 parts on this diagram · 2 diagrams in section
