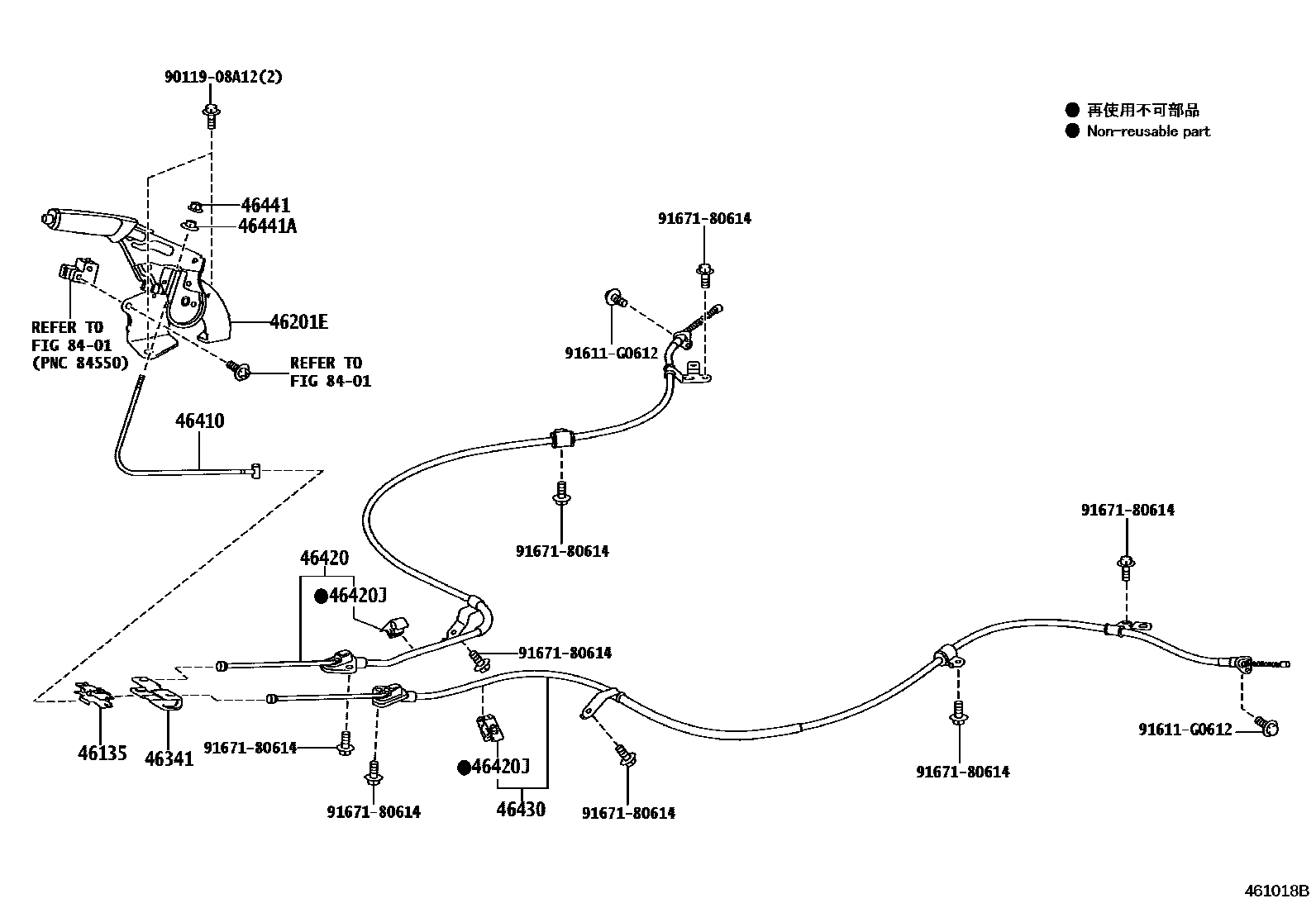

PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iZRE142..JPP200712-201308

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12430-B1iZRE142..JPP..STD200712-201011

DK.GRAY,TRIM1#

sub46201-12430

main46201-12430-C0iZRE142..JPP..STD201011-201012

BLACK,TRIM1#

sub46201-12430

main46201-12430-C0iZRE142..JPP..STD201012-201308

BLACK,TRIM1#,4#

sub46201-12430

main46201-12430-E0iZRE142..JPP..STD200712-201012

ASH BROWN,TRIM4#

sub46201-12430

main46201-12440-B0iZRE142..JPP..LE200712-201011

DK.GRAY,TRIM1#

sub46201-12440

main46201-12440-C0iZRE142..JPP..LE201011-201012

GRADE MARK-LE,BLACK,TRIM1#

sub46201-12440

main46201-12440-C0iZRE142..JPP..LE201012-201308

BLACK,TRIM1#,4#

sub46201-12440

main46201-12440-C0iZRE142..JPP..STD201011-201012

BLACK,TRIM1#

sub46201-12440

main46201-12440-E0iZRE142..JPP..LE200712-201012

ASH BROWN,TRIM4#

sub46201-12440

46341EQUALIZER, PARKING BRAKE

main46341-12040iZRE142..JPP200712-201308

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12300iZRE142..JPP200712-201308

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12670iZRE142..JPP200712-201308

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-12020iZRE142..JPP200712-201308

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12560iZRE142..JPP200712-201308

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iZRE142..JPP200712-201308

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iZRE142..JPP200712-201308

8401

9011908A12

main90119-08A12

91611G0612

main91611-G0612

9167180614

main91671-80614

13 parts on this diagram · 1 diagram in section
