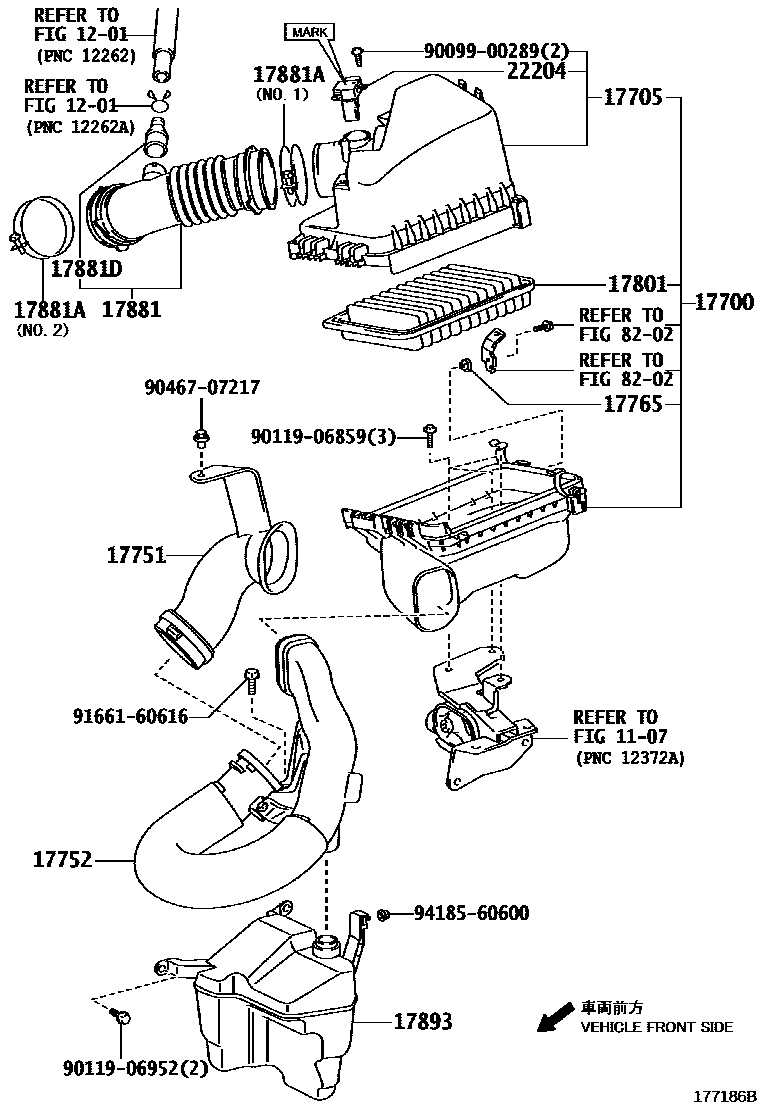

AIR CLEANER

1107

1201

17700CLEANER ASSY, AIR

main17700-22220i2ZRFE..ZRE142..JPP200712-201103

sub17700-22221

main17700-22221i2ZRFE..ZRE142..JPP201104-201308

17705CAP SUB-ASSY, AIR CLEANER

main17705-22210i2ZRFE..ZRE142..JPP200712-201103

sub17705-22211

main17705-22211i2ZRFE..ZRE142..JPP201104-201308

17751INLET, AIR CLEANER, NO.1

main17751-37060i2ZRFE..ZRE142..JPP200712-201308

17752INLET, AIR CLEANER, NO.2

main17752-37070i2ZRFE..ZRE142..JPP200712-201308

17765STAY, AIR CLEANER, NO.1

main17706-21010i2ZRFE..ZRE142..JPP200904-201308

main17706-22010i2ZRFE..ZRE142..JPP200712-200904

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i2ZRFE..ZRE142..JPP200712-201308

17881HOSE, AIR CLEANER, NO.1

main17880-37080i2ZRFE..ZRE142..JPP200712-201308

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i2ZRFE..ZRE142..JPP200712-201308

NO.1

main96111-10780i2ZRFE..ZRE142..JPP200712-201308

NO.2

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i2ZRFE..ZRE142..JPP200712-201308

17893RESONATOR, INTAKE AIR

main17893-22030i2ZRFE..ZRE142..JPP200712-201308

sub17893-22900

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i2ZRFE..ZRE142..JPP201104-201308

MARK 22204-0T040

sub22204-28010

main22204-0V010i2ZRFE..ZRE142..JPP201104-201308

MARK 22204-0V010

sub22204-0V020

main22204-0V020i2ZRFE..ZRE142..JPP201104-201308

MARK 22204-0V020

main22204-28010i2ZRFE..ZRE142..JPP201104-201308

MARK 22204-28010

main22204-37010i2ZRFE..ZRE142..JPP200712-201103

sub22204-28010

8202

9009900289

main90099-00289

9011906859

main90119-06859

9011906952

main90119-06952

9046707217

main90467-07217

9166160616

main91661-60616

9418560600

main94185-60600

20 parts on this diagram · 1 diagram in section
