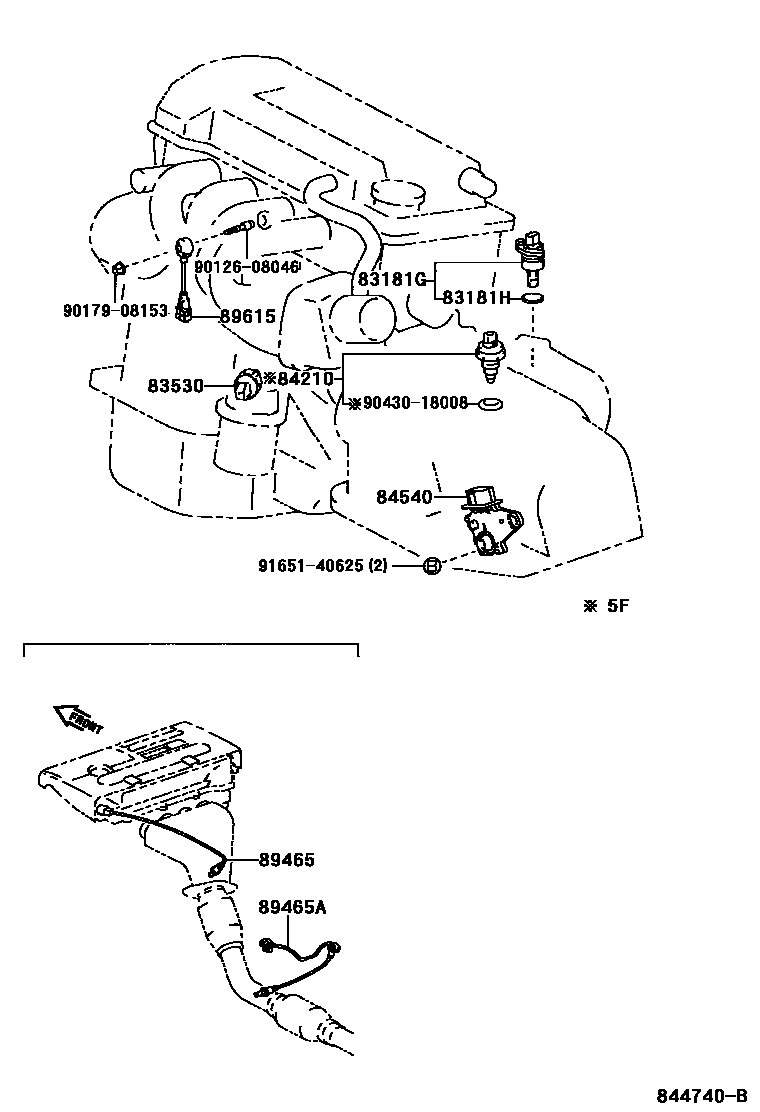

83181GSENSOR, SPEEDOMETER

main83181-12020iZZE130..JPP200204-200405

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24030iZZE130..JPP200204-200405

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZZE130..JPP200405

DENSO

main83530-60020iZZE130..JPP200405

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iZZE130..JPP..5F200304-200405

84540SWITCH ASSY, NEUTRAL START

main84540-32110iZZE130..JPP..4FC200204-200405

main84540-48010iZZE130..JPP200405

89465SENSOR, OXYGEN

main89465-13030iZZE130..JPP200204-200405

main89467-12010iZZE130..JPP200405

89465ASENSOR, OXYGEN NO.2

main89465-12730iZZE130..JPP200204-200405

main89465-12770iZZE130..JPP200405

89615SENSOR, KNOCK CONTROL

main89615-20090iZZE130..JPP200204-200405

9012608046

main90126-08046

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

12 parts on this diagram · 7 diagrams in section
