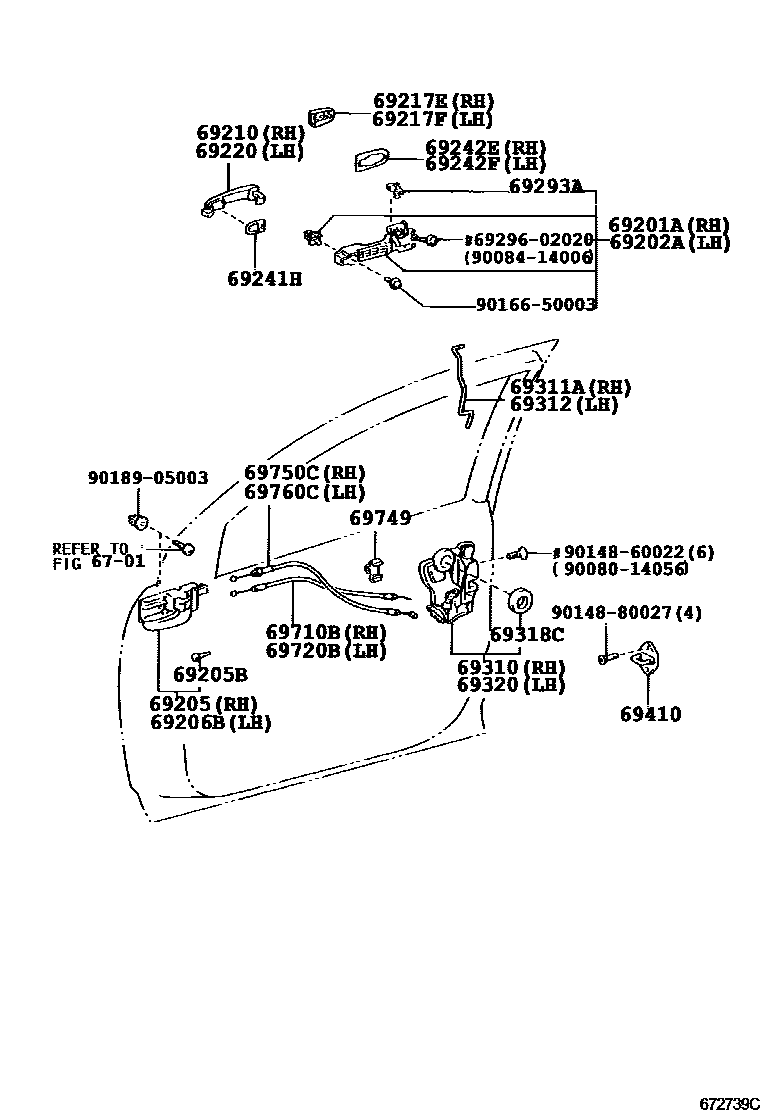

FRONT DOOR LOCK & HANDLE

6701

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-AA010iZZE130..JPP200204-200606

sub69201-AA011

main69201-AA011iZZE130..JPP200607

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-AA010iZZE130..JPP200204-200606

sub69202-AA011

main69202-AA011iZZE130..JPP200607

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12200-B0iZZE130..JPP200204-200405

STONE,TRIM1#

sub69205-12200

sub69205-0D070

main69205-12200-E2iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

sub69205-12200

sub69205-0D070

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iZZE130..JPP200204-200405

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12200-B0iZZE130..JPP200204-200405

STONE,TRIM1#

sub69206-12200

sub69206-0D070

main69206-12200-E2iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

sub69206-12200

sub69206-0D070

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69211-02080iZZE130..JPP..CE..CND200304-200405

NO PAINT REQ.

main69211-AA020-A0iZZE130..JPP200204-200405

SUPER WHITE 2,040

main69211-AA020-B0iZZE130..JPP..LE;ZZE130..JPP..CE..USA200204-200405

SILVER ME.,1C8

main69211-AA020-B3iZZE130..JPP200405

SILVER M.M.,1E7

main69211-AA020-C1iZZE130..JPP..LE;ZZE130..JPP..CE..USA200204-200405

BLACK MC.,209

main69211-AA020-D3iZZE130..JPP..LE;ZZE130..JPP..CE..USA200208-200405

RED M.M.,3P1

main69211-AA020-E0iZZE130..JPP..LE;ZZE130..JPP..CE..USA200304-200405

BEIGE M. M.,4Q2

main69211-AA020-G1iZZE130..JPP..LE;ZZE130..JPP..CE..USA200208-200405

GRAYISH GREEN M.M.OP.,6R6

main69211-AA020-J2iZZE130..JPP..LE;ZZE130..JPP..CE..USA200204-200405

DK.BLUE M.M.,8P4

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69227-02040iZZE130..JPP..CE..CND200304-200405

BLACK

main69227-AA010-A0iZZE130..JPP..LE;ZZE130..JPP..CE..USA200204-200405

SUPER WHITE 2,040

sub69217-33010

main69227-AA010-B0iZZE130..JPP..LE;ZZE130..JPP..CE..USA200204-200405

SILVER ME.,1C8

sub69217-33010

main69227-AA010-B3iZZE130..JPP200405

SILVER M.M.,1E7

sub69217-33010

main69227-AA010-C1iZZE130..JPP..LE;ZZE130..JPP..CE..USA200204-200405

BLACK MC.,209

sub69217-33010

main69227-AA010-D3iZZE130..JPP200208-200405

RED M.M.,3P1

sub69217-33010

main69227-AA010-E0iZZE130..JPP..LE;ZZE130..JPP..CE..USA200304-200405

BEIGE M. M.,4Q2

sub69217-33010

main69227-AA010-G1iZZE130..JPP..LE;ZZE130..JPP..CE..USA200208-200405

GRAYISH GREEN M.M.OP.,6R6

sub69217-33010

main69227-AA010-J2iZZE130..JPP200204-200405

DK.BLUE M.M.,8P4

sub69217-33010

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69227-02040iZZE130..JPP..CE..CND200304-200405

BLACK

main69227-AA010-A0iZZE130..JPP200204-200405

SUPER WHITE 2,040

sub69217-33010

main69227-AA010-B0iZZE130..JPP..LE;ZZE130..JPP..CE..USA200204-200405

SILVER ME.,1C8

sub69217-33010

main69227-AA010-B3iZZE130..JPP200405

SILVER M.M.,1E7

sub69217-33010

main69227-AA010-C1iZZE130..JPP200204-200405

BLACK MC.,209

sub69217-33010

main69227-AA010-D3iZZE130..JPP200208-200405

RED M.M.,3P1

sub69217-33010

main69227-AA010-E0iZZE130..JPP..LE;ZZE130..JPP..CE..USA200304-200405

BEIGE M. M.,4Q2

sub69217-33010

main69227-AA010-G1iZZE130..JPP..LE;ZZE130..JPP..CE..USA200208-200405

GRAYISH GREEN M.M.OP.,6R6

sub69217-33010

main69227-AA010-J2iZZE130..JPP..LE;ZZE130..JPP..CE..USA200204-200405

DK.BLUE M.M.,8P4

sub69217-33010

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69211-02080iZZE130..JPP..CE..CND200304-200405

NO PAINT REQ.

main69211-AA020-A0iZZE130..JPP..LE;ZZE130..JPP..CE..USA200204-200405

SUPER WHITE 2,040

main69211-AA020-B0iZZE130..JPP..LE;ZZE130..JPP..CE..USA200204-200405

SILVER ME.,1C8

main69211-AA020-B3iZZE130..JPP200405

SILVER M.M.,1E7

main69211-AA020-C1iZZE130..JPP..LE;ZZE130..JPP..CE..USA200204-200405

BLACK MC.,209

main69211-AA020-D3iZZE130..JPP..LE;ZZE130..JPP..CE..USA200208-200405

RED M.M.,3P1

main69211-AA020-E0iZZE130..JPP..LE;ZZE130..JPP..CE..USA200304-200405

BEIGE M. M.,4Q2

main69211-AA020-G1iZZE130..JPP..LE;ZZE130..JPP..CE..USA200208-200405

GRAYISH GREEN M.M.OP.,6R6

main69211-AA020-J2iZZE130..JPP..LE;ZZE130..JPP..CE..USA200204-200405

DK.BLUE M.M.,8P4

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-42020iZZE130..JPP200405-200706

main69241-AA010iZZE130..JPP200204-200405

sub69241-AA011

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-42010iZZE130..JPP200204-200405

69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-42010iZZE130..JPP200204-200405

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-33010iZZE130..JPP200204-200405

RH

main69293-33020iZZE130..JPP200204-200405

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-33221iZZE130..JPP200204-200405

W(POWER DOOR LOCK)

main69310-12660iZZE130..JPP200204-200405

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-13020iZZE130..JPP200204-200405

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-13020iZZE130..JPP200204-200405

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iZZE130..JPP200204-200405

69320LOCK ASSY, FRONT DOOR, LH

main69040-33221iZZE130..JPP200204-200405

W(POWER DOOR LOCK)

main69320-12650iZZE130..JPP200204-200405

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iZZE130..JPP200204-200610

main69410-33010iZZE130..JPP200611

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-02020iZZE130..JPP200204-200405

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-02020iZZE130..JPP200204-200405

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iZZE130..JPP200204-200405

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-02030iZZE130..JPP200204-200405

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-02030iZZE130..JPP200204-200405

6929602020SCREW, DOOR INSIDE HANDLE

main69296-02020

9008014056

main90080-14056

9008414006

main90084-14006

9014860022

main90148-60022

9014880027

main90148-80027

9016650003

main90166-50003

9018905003

main90189-05003

32 parts on this diagram · 1 diagram in section
