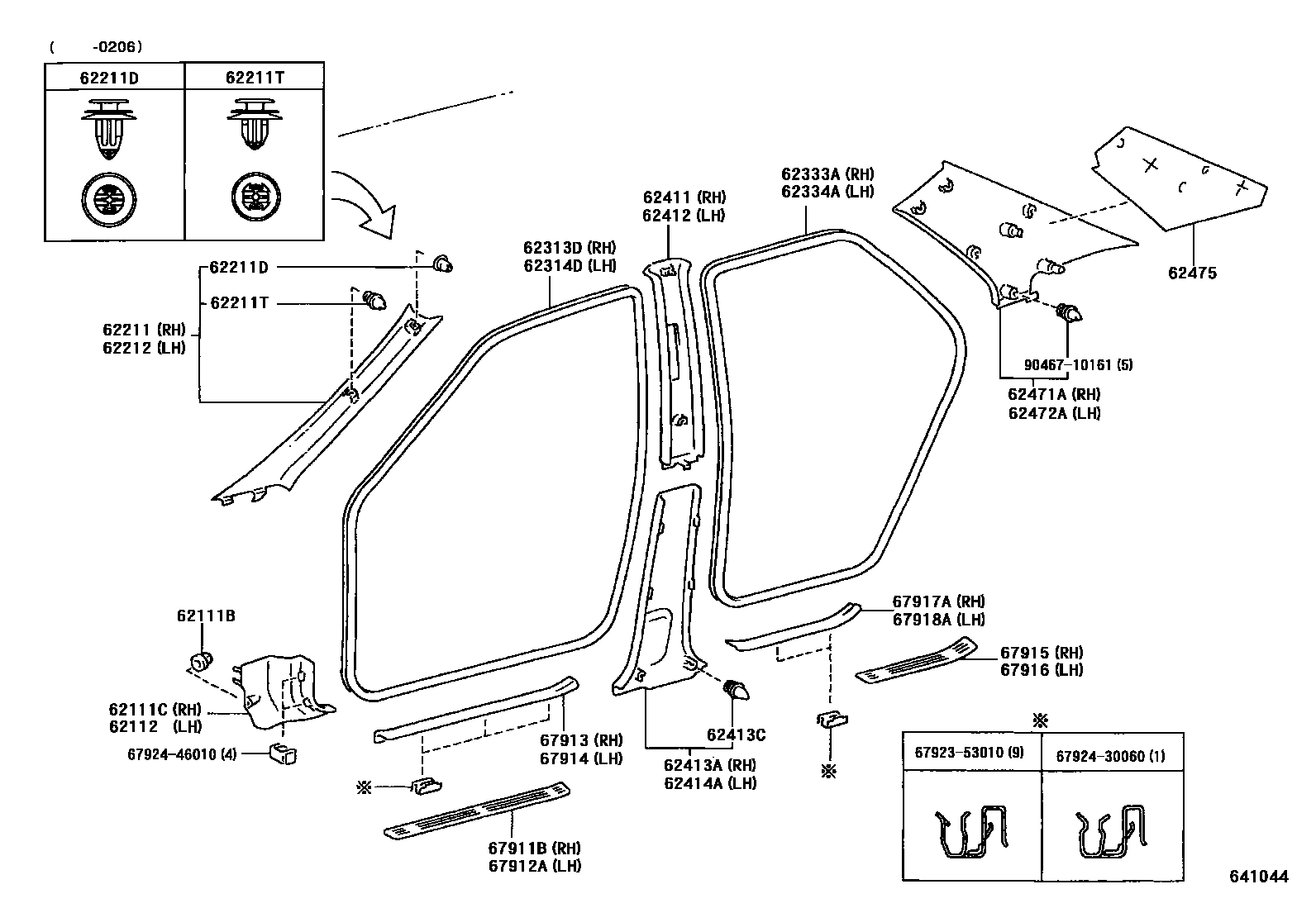

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06120iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

62111CBOARD, COWL SIDE TRIM, RH

main62111-02100-B0iZZE130..JPP200204-200405

STONE,TRIM1#

main62111-02100-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-02100-B0iZZE130..JPP200204-200405

STONE,TRIM1#

main62112-02100-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-02070-B0iZZE130..JPP200204-200405

LT.GRAY,TRIM1#

main62211-02070-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main67771-12080iZZE130..JPP..5F;ZZE130..JPP..CND200206-200405

main90467-10188iZZE130..JPP200204-200206

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-13010iZZE130..JPP200204-200206

main90467-10192iZZE130..JPP..4FC..USA200206-200405

62212GARNISH, FRONT PILLAR, LH

main62212-02070-B0iZZE130..JPP200204-200405

LT.GRAY,TRIM1#

main62212-02070-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

62313DTRIM, FRONT DOOR OPENING, RH

main62311-12140-B0iZZE130..JPP200204-200303

STONE,TRIM1#

sub62311-12141

main62311-12140-E0iZZE130..JPP200204-200303

MD.NEUTRAL BONE,TRIM4#

sub62311-12141

main62311-12141-B0iZZE130..JPP200303-200405

STONE,TRIM1#

sub62311-12141

main62311-12141-E0iZZE130..JPP200303-200405

MD.NEUTRAL BONE,TRIM4#

sub62311-12141

62314DTRIM, FRONT DOOR OPENING, LH

main62312-12140-B0iZZE130..JPP200204-200303

STONE,TRIM1#

sub62312-12141

main62312-12140-E0iZZE130..JPP200204-200303

MD.NEUTRAL BONE,TRIM4#

sub62312-12141

main62312-12141-B0iZZE130..JPP200303-200405

STONE,TRIM1#

sub62312-12141

main62312-12141-E0iZZE130..JPP200303-200405

MD.NEUTRAL BONE,TRIM4#

sub62312-12141

62333ATRIM, REAR DOOR OPENING, RH

main62331-12110-B0iZZE130..JPP200204-200405

STONE,TRIM1#

main62331-12110-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

62334ATRIM, REAR DOOR OPENING, LH

main62332-12110-B0iZZE130..JPP200204-200405

STONE,TRIM1#

main62332-12110-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62410-02020-B0iZZE130..JPP200204-200405

LT.GRAY,TRIM1#

main62410-02020-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-02020-B0iZZE130..JPP200204-200405

LT.GRAY,TRIM1#

main62420-02020-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02100-B0iZZE130..JPP200204-200405

STONE,TRIM1#

sub62413-02101

main62413-02100-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

sub62413-02101

main62413-02101-B0iZZE130..JPP200405

STONE,TRIM1#

main62413-02101-E0iZZE130..JPP200405

MD.NEUTRAL BONE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iZZE130..JPP200204-200405

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02100-B0iZZE130..JPP200204-200405

STONE,TRIM1#

main62414-02100-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

main62414-02101-B0iZZE130..JPP200405

STONE,TRIM1#

main62414-02101-E0iZZE130..JPP200405

MD.NEUTRAL BONE,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-02150-B0iZZE130..JPP200304-200307

LT.GRAY,TRIM1#,(L)

sub62471-02151

main62471-02150-B0iZZE130..JPP200204-200304

LT.GRAY,TRIM1#

sub62471-02151

main62471-02150-E0iZZE130..JPP200204-200304

MD.NEUTRAL BONE,TRIM4#

sub62471-02151

main62471-02150-E0iZZE130..JPP200304-200307

MD.NEUTRAL BONE,TRIM4#,(L)

sub62471-02151

main62471-12840-B0iZZE130..JPP200304-200307

LT.GRAY,TRIM1#,(J)

sub62471-12841

main62471-12840-E0iZZE130..JPP200304-200307

MD.NEUTRAL BONE,TRIM4#,(J)

sub62471-12841

main62471-12841-B0iZZE130..JPP200307-200405

LT.GRAY,TRIM1#

main62471-12841-E0iZZE130..JPP200307-200405

MD.NEUTRAL BONE,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-02150-B0iZZE130..JPP200204-200304

LT.GRAY,TRIM1#

sub62472-02151

main62472-02150-B0iZZE130..JPP200304-200307

LT.GRAY,TRIM1#,(L)

sub62472-02151

main62472-02150-E0iZZE130..JPP200304-200307

MD.NEUTRAL BONE,TRIM4#,(L)

sub62472-02151

main62472-02150-E0iZZE130..JPP200204-200304

MD.NEUTRAL BONE,TRIM4#

sub62472-02151

main62472-12840-B0iZZE130..JPP200304-200307

LT.GRAY,TRIM1#,(J)

sub62472-12841

main62472-12840-E0iZZE130..JPP200304-200307

MD.NEUTRAL BONE,TRIM4#,(J)

sub62472-12841

main62472-12841-B0iZZE130..JPP200307-200405

LT.GRAY,TRIM1#

main62472-12841-E0iZZE130..JPP200307-200405

MD.NEUTRAL BONE,TRIM4#

62475PAD, ROOF SIDE INNER GARNISH

main62475-12140iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-02040iZZE130..JPP..4FC..USA200204-200702

sub67911-02120

main67911-02120iZZE130..JPP200703

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-02040iZZE130..JPP..4FC..USA200204-200702

sub67912-02080

main67912-02080iZZE130..JPP200703

67913PLATE, FRONT DOOR SCUFF, RH

main67913-02100-B0iZZE130..JPP200204-200405

STONE,TRIM1#

main67913-02100-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02100-B0iZZE130..JPP200204-200405

STONE,TRIM1#

main67914-02100-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-02030iZZE130..JPP..4FC..USA200204-200702

sub67915-02070

main67915-02070iZZE130..JPP200703

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-02030iZZE130..JPP..4FC..USA200204-200702

sub67916-02070

main67916-02070iZZE130..JPP200703

67917APLATE, REAR DOOR SCUFF, RH

main67917-02090-B0iZZE130..JPP200204-200405

STONE,TRIM1#

main67917-02090-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-02090-B0iZZE130..JPP200204-200405

STONE,TRIM1#

main67918-02090-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

6792353010CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-53010

6792430060CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-30060

6792446010CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-46010

9046710161

main90467-10161

31 parts on this diagram · 1 diagram in section
