REAR SPRING & SHOCK ABSORBER

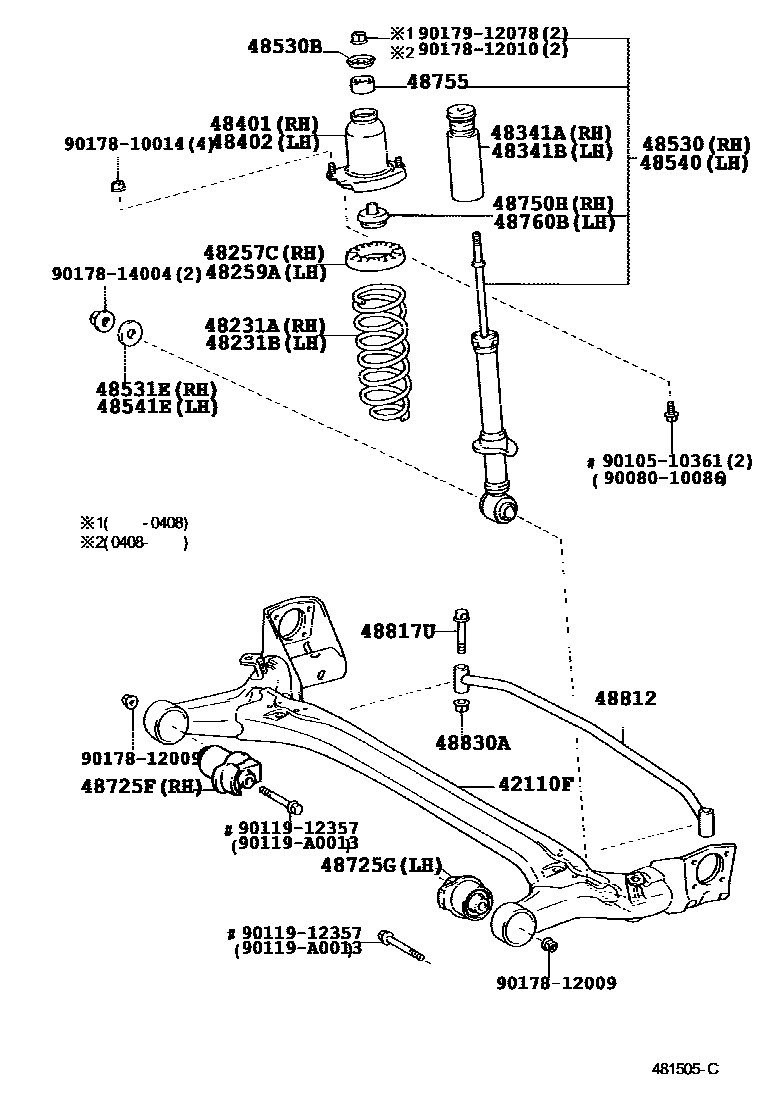

Parts diagram

42110FBEAM ASSY, REAR AXLE

main42101-12120i200204-200405

48231ASPRING, COIL, REAR RH

main48231-1H740i200302-200405

main48231-1H741i200610

main48231-AB020i200204-200302

48231BSPRING, COIL, REAR LH

main48231-1H740i200302-200405

main48231-1H741i200610

main48231-AB020i200204-200302

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-32090i200204-200405

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-32090i200204-200405

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-47010i200204-200405

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-47010i200204-200405

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48401-32020i200204-200405

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48403-32010i200204-200405

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-A9160i200204-200405

MARK 48530-AB030

main48530-A9270i200405-200408

MARK 48530-AB031

main48530-A9560i200408

MARK 48530-AB031

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2i200204-200405

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90560-14028i200204-200405

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-A9160i200204-200405

MARK 48530-AB030

main48530-A9270i200405-200408

MARK 48530-AB031

main48530-A9560i200408

MARK 48530-AB031

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90560-14028i200204-200405

48725FBUSH, REAR AXLE CARRIER, RH

main48725-02230i200204-200304

main48725-12580i200304-200405

48725GBUSH, REAR AXLE CARRIER, LH

main48725-02230i200204-200304

main48725-12580i200304-200405

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-02050i200204-200301

main48750-47010i200301-200405

48755SUPPORT, REAR SUSPENSION

main48755-02050×2i200204-200301

main48755-63010×2i200301-200405

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-02050i200204-200301

main48750-47010i200301-200405

48812BAR, STABILIZER, REAR

main48812-AB010i200204-200405

main48812-AB011i200412

48817UBOLT(FOR REAR STABILIZER)

main90105-14155×2i200204-200405

48830ANUT(FOR REAR STABILIZER LINK)

main90178-14009×2i200204-200405

9008010086

main90080-10086

9010510361

main90105-10361

9011912357

main90119-12357

90119A0013

main90119-A0013

9017810014

main90178-10014

9017812009

main90178-12009

9017812010

main90178-12010

9017814004

main90178-14004

9017912078

main90179-12078

31 parts on this diagram · 1 diagram in section
