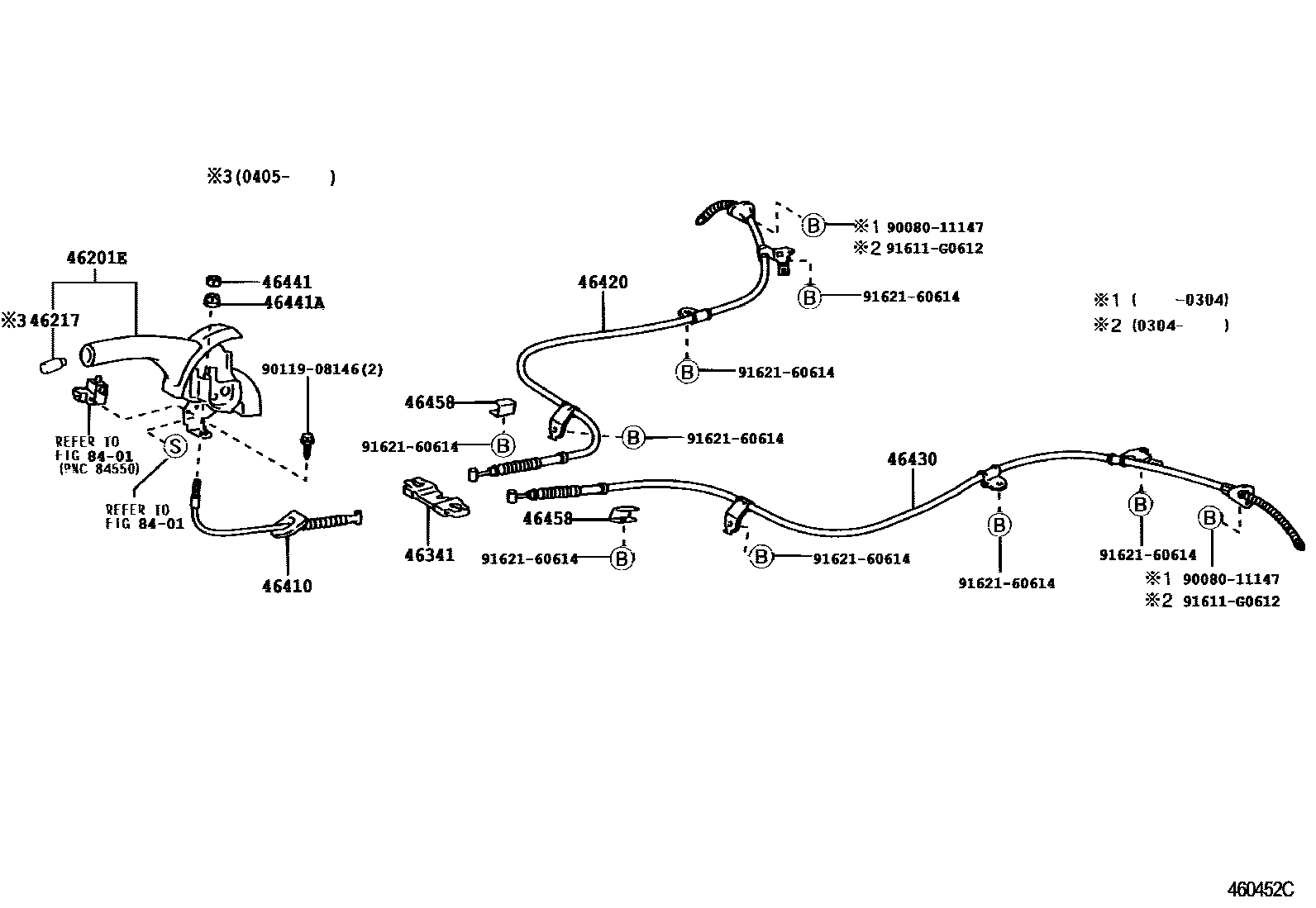

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12240-B1iZZE130..JPP200204-200405

DK. STONE,TRIM1#

main46201-12240-E1iZZE130..JPP200204-200405

DK.NEUTRAL BONE,TRIM4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-B7iZZE130..JPP200405

DK. STONE,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-E8iZZE130..JPP200405

DK.NEUTRAL BONE,TRIM4#

sub46217-12020

sub46217-16030

46341EQUALIZER, PARKING BRAKE

main46341-20070iZZE130..JPP200204-200405

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12270iZZE130..JPP200204-200405

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02070iZZE130..JPP200204-200304

main46420-12510iZZE130..JPP200304-200405

main46420-12580iZZE130..JPP200405

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02070iZZE130..JPP200204-200304

main46430-12410iZZE130..JPP200304-200405

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iZZE130..JPP200204-200405

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iZZE130..JPP200204-200405

46458RETAINER, CABLE

main46458-28010iZZE130..JPP200204-200405

8401

9008011147

main90080-11147

9011908146

main90119-08146

91611G0612

main91611-G0612

9162160614

main91621-60614

14 parts on this diagram · 1 diagram in section
