Toyota COROLLA SED (JPP)151 — FRONT DRIVE SHAFT

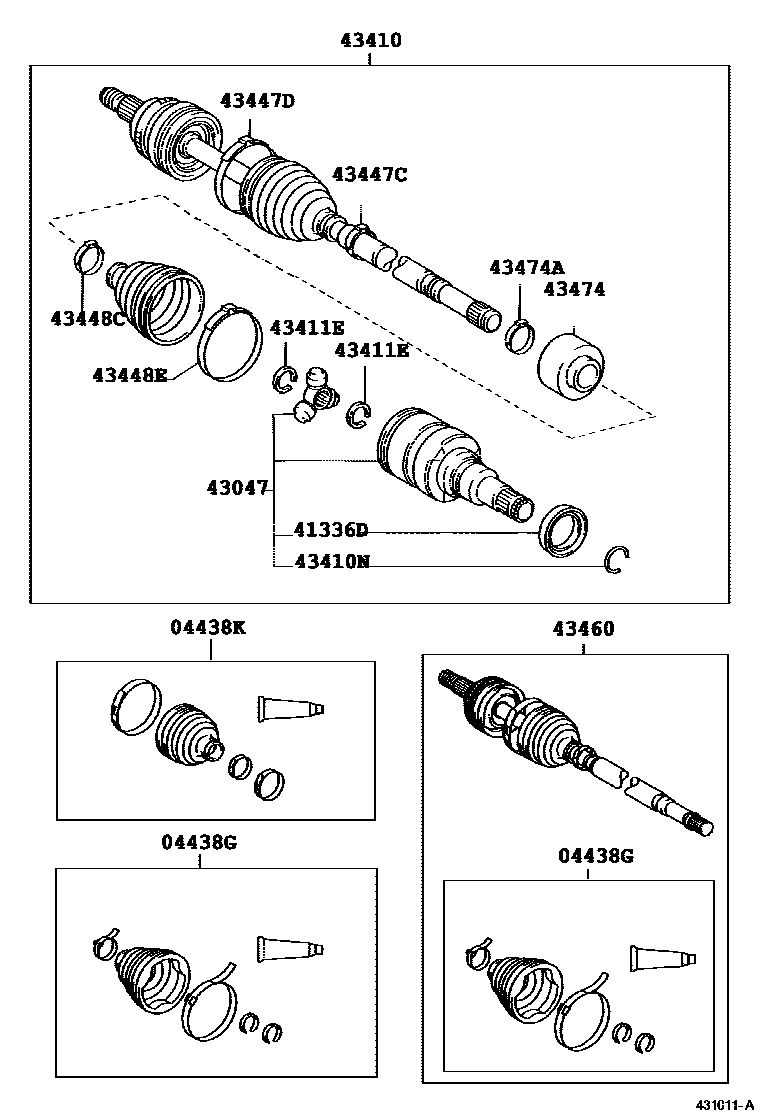

Parts diagram
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43047JOINT SUB-ASSY, FRONT AXLE INBOARD, RH
43047-02070
43047-02090
43410SHAFT ASSY, FRONT DRIVE, RH
90080-52015
43425-02050
43410-02290
43410-02310
43410-02330
43410-02350
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09780
43460-09840
43474DAMPER, DRIVE SHAFT
43474-02120
42345-02130
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

14 parts on this diagram · 2 diagrams in section

FRONT DRIVE SHAFT for Toyota COROLLA SED (JPP)151

This section contains 26 genuine Toyota parts for the FRONT DRIVE SHAFT system of the Toyota COROLLA SED (JPP)151. Key components include: BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH, BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH, BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH, BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH, COVER, FRONT DRIVE SHAFT DUST, RH.
