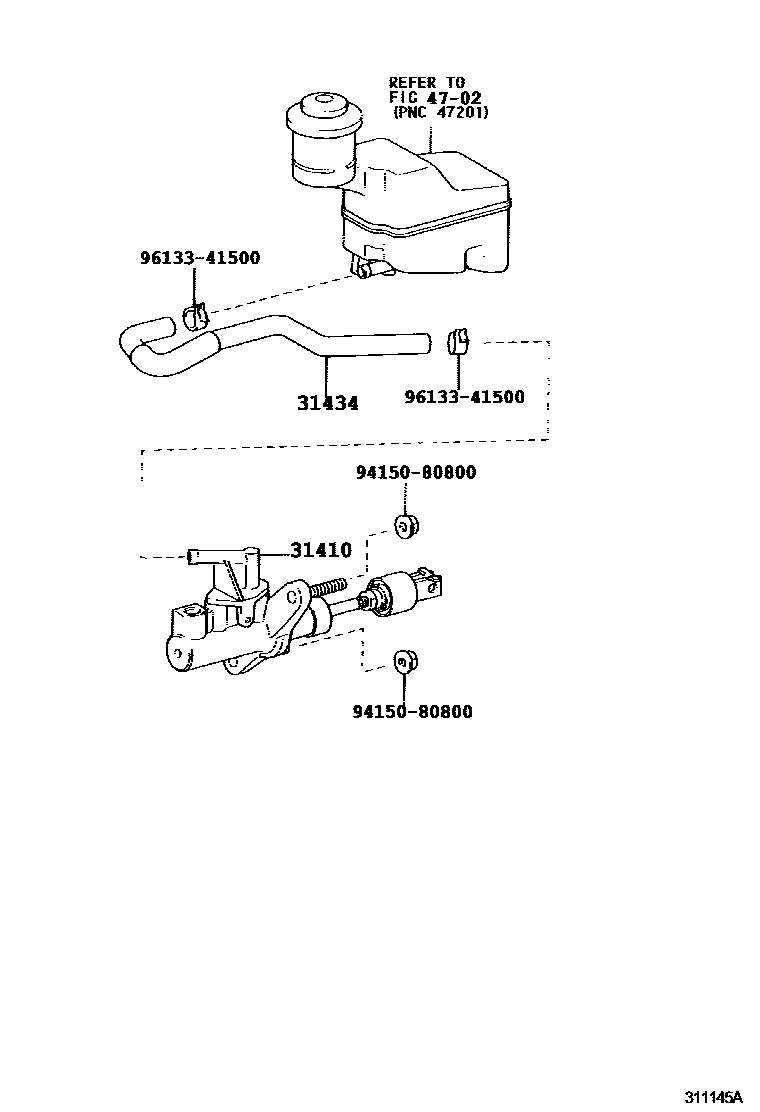

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-20070iZZE130..5F200304-200405

31434TUBE, CLUTCH RESERVOIR

main31434-12020iZZE130..5F200304-200405

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9415080800

main94150-80800

9613341500

main96133-41500

5 parts on this diagram · 1 diagram in section
