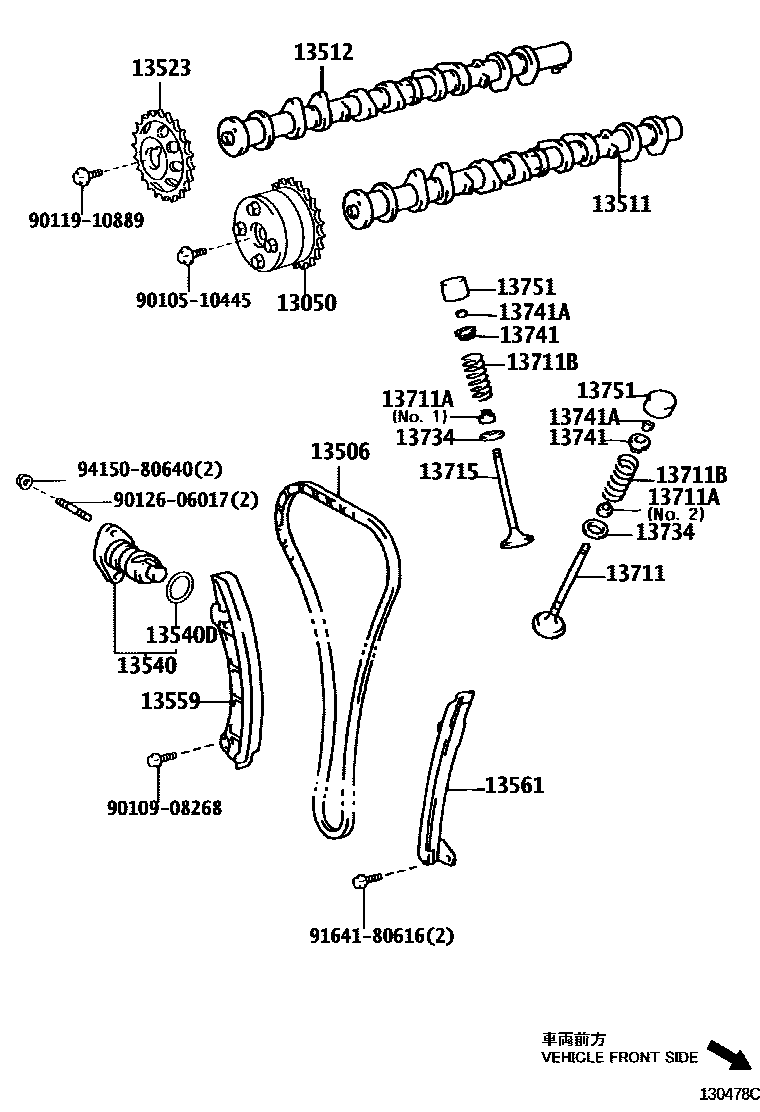

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
13511CAMSHAFT
(L)
13512CAMSHAFT, NO.2
(L)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13540DRING, O(FOR CHAIN TENSIONER)
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13711VALVE, INTAKE
(L)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.2
NO.1
13711BSPRING, COMPRESSION(FOR INNER)
(L)
(J)
13715VALVE, EXHAUST
(L)
(J)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.06
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.70
T=5.72
T=5.74
9010510445
main90105-10445
9010908268
main90109-08268
9011910889
main90119-10889
9012606017
main90126-06017
9164180616
main91641-80616
9415080640
main94150-80640
23 parts on this diagram · 1 diagram in section
