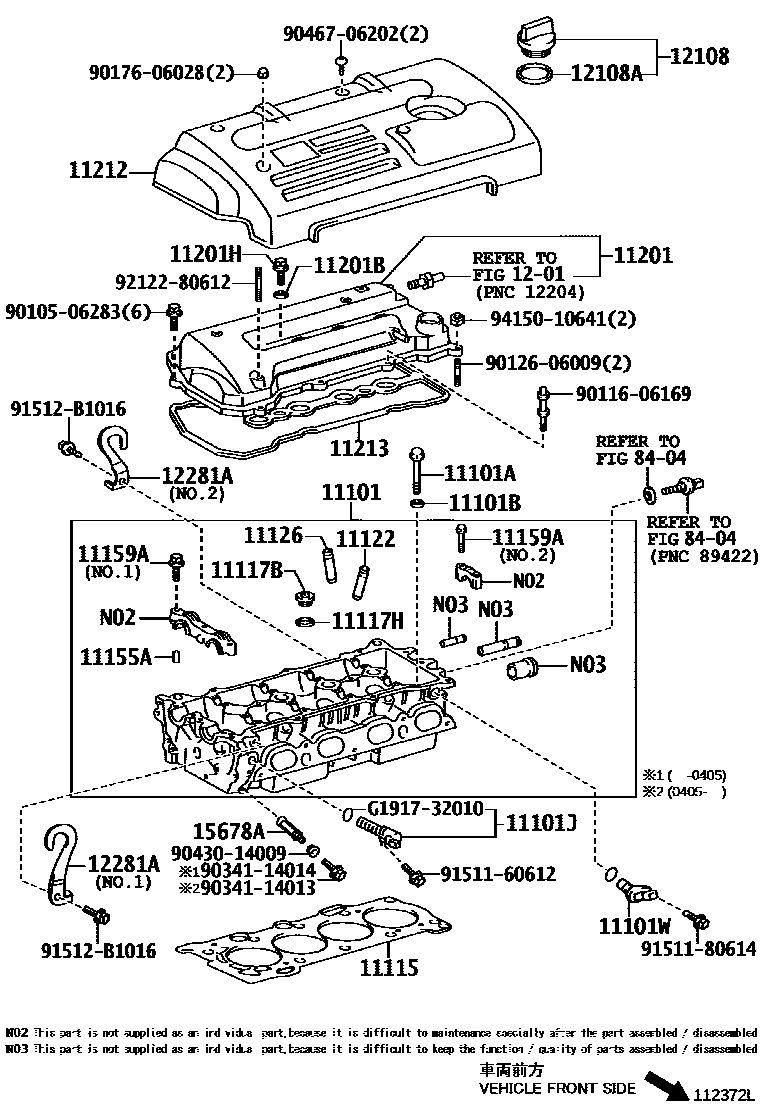

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-22071
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
sub15330-22050
11101WSENSOR, CRANK POSITION, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
11155APIN, RING W/HEAD
(J)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L),NO.1
(L),NO.2
(J),NO.2
NO.2
(J),NO.1
NO.1
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
NO.1
NO.2
15678AFILTER, OIL CONTROL VALVE
8404
9010506283
main90105-06283
9011606169
main90116-06169
9012606009
main90126-06009
9017606028
main90176-06028
9034114013
main90341-14013
9034114014
main90341-14014
9043014009
main90430-14009
9046706202
main90467-06202
9151160612
main91511-60612
9151180614
main91511-80614
91512B1016
main91512-B1016
9212280612
main92122-80612
9415010641
main94150-10641
G191732010
mainG1917-32010
37 parts on this diagram · 1 diagram in section
